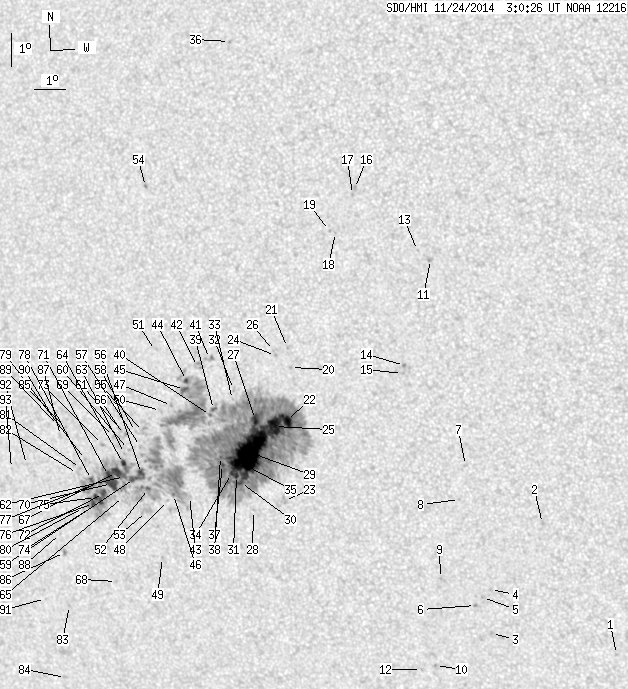

SDO HMI 2014-11-24 03:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 172.50 | 1289.31 | 99.46 | 742.17 | -13.24 | 164.35 | -26.58 | 120.49 | 0.5072 | 317.4 | 78.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 03:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.52 | -19.34 | 176.78 | -14.15 | 147.30 | 0.4288 | 661.0 | 521.7 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -15.25 | 174.75 | -16.18 | 137.32 | 0.3983 | 937.0 | 658.7 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -18.71 | 172.77 | -18.17 | 139.72 | 0.4586 | 715.0 | 586.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -17.32 | 172.89 | -18.05 | 137.75 | 0.4418 | 801.0 | 653.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -17.57 | 172.60 | -18.34 | 137.72 | 0.4477 | 779.0 | 674.8 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -17.83 | 172.34 | -18.59 | 137.73 | 0.4532 | 852.0 | 721.0 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -13.48 | 172.43 | -18.50 | 130.29 | 0.4063 | 752.0 | 595.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -14.53 | 172.15 | -18.79 | 131.84 | 0.4202 | 693.0 | 555.1 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -16.99 | 171.28 | -19.65 | 134.85 | 0.4556 | 872.0 | 763.7 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -19.74 | 170.78 | -20.15 | 138.38 | 0.4902 | 749.0 | 614.6 | |
| 0.00 | 2.23 | 0.00 | 1.18 | -7.25 | 171.72 | -19.22 | 115.41 | 0.3631 | 863.0 | 750.2 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -19.87 | 170.29 | -20.64 | 137.91 | 0.4966 | 648.0 | 540.6 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -6.98 | 171.32 | -19.62 | 114.30 | 0.3672 | 700.0 | 567.4 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -10.45 | 170.71 | -20.23 | 121.68 | 0.4013 | 1043.0 | 900.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -10.69 | 170.62 | -20.31 | 122.10 | 0.4044 | 773.0 | 655.2 | |
| 0.00 | 2.14 | 0.00 | 1.15 | -5.15 | 169.39 | -21.54 | 107.94 | 0.3861 | 1023.0 | 765.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -5.33 | 169.32 | -21.62 | 108.33 | 0.3881 | 843.0 | 638.2 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -6.47 | 168.72 | -22.21 | 110.59 | 0.4030 | 798.0 | 666.2 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -6.41 | 168.53 | -22.40 | 110.30 | 0.4055 | 833.0 | 660.8 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -10.55 | 166.99 | -23.94 | 117.85 | 0.4532 | 866.0 | 677.3 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -9.95 | 166.94 | -23.99 | 116.59 | 0.4498 | 557.0 | 412.9 | |
| 8.48 | 887.80 | 4.75 | 505.36 | -12.17 | 166.71 | -24.22 | 120.71 | 0.4685 | 1396.8 | 281.0 | |
| 0.00 | 4.20 | 0.00 | 2.39 | -14.62 | 166.37 | -24.56 | 124.80 | 0.4918 | -261.0 | -373.2 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -10.19 | 166.53 | -24.41 | 116.71 | 0.4572 | 793.0 | 646.2 | |
| 18.08 | -22.00 | 10.17 | -22.00 | -12.35 | 166.29 | -24.64 | 120.65 | 0.4754 | 1271.2 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -10.04 | 166.47 | -24.46 | 116.36 | 0.4570 | 643.0 | 555.9 | |
| 4.37 | -22.00 | 2.47 | -22.00 | -12.15 | 165.68 | -25.26 | 119.68 | 0.4821 | 1049.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -14.95 | 165.28 | -25.65 | 124.25 | 0.5080 | 587.0 | 361.8 | |
| 74.47 | -22.00 | 42.35 | -22.00 | -13.16 | 165.37 | -25.57 | 121.22 | 0.4935 | 1383.0 | 999999 | |
| 2.74 | -22.00 | 1.57 | -22.00 | -14.09 | 164.95 | -25.98 | 122.46 | 0.5057 | 757.8 | 999999 | |
| 2.31 | -22.00 | 1.33 | -22.00 | -13.87 | 164.84 | -26.09 | 121.98 | 0.5055 | 819.7 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -11.24 | 165.03 | -25.90 | 117.41 | 0.4847 | 681.0 | 558.1 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -11.55 | 164.97 | -25.97 | 117.92 | 0.4875 | 583.0 | 518.0 | |
| 0.26 | -22.00 | 0.15 | -22.00 | -13.81 | 164.68 | -26.26 | 121.73 | 0.5071 | 779.3 | 999999 | |
| 1.54 | -22.00 | 0.88 | -22.00 | -13.32 | 164.70 | -26.23 | 120.89 | 0.5033 | 980.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -0.83 | 165.45 | -25.49 | 95.62 | 0.4342 | 775.0 | 649.8 | |
| 1.37 | -22.00 | 0.79 | -22.00 | -13.54 | 164.41 | -26.53 | 121.00 | 0.5087 | 498.2 | 999999 | |
| 0.69 | -22.00 | 0.39 | -22.00 | -13.30 | 164.37 | -26.57 | 120.54 | 0.5074 | 629.9 | 999999 | |
| 1.20 | -22.00 | 0.68 | -22.00 | -11.86 | 164.29 | -26.64 | 117.92 | 0.4987 | 589.6 | 999999 | |
| 0.43 | -22.00 | 0.24 | -22.00 | -12.05 | 164.17 | -26.76 | 118.15 | 0.5015 | 693.8 | 999999 | |
| 0.00 | 4.54 | 0.00 | 2.58 | -10.31 | 164.31 | -26.62 | 115.06 | 0.4887 | -874.0 | -798.4 | |
| 0.00 | 4.97 | 0.00 | 2.83 | -10.56 | 163.88 | -27.05 | 115.19 | 0.4961 | -494.0 | -730.3 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -14.54 | 163.14 | -27.79 | 121.58 | 0.5319 | 197.0 | 201.0 | |
| 1.46 | -22.00 | 0.83 | -22.00 | -10.99 | 163.47 | -27.47 | 115.66 | 0.5044 | -1040.0 | 999999 | |
| 2.57 | -22.00 | 1.48 | -22.00 | -11.27 | 163.37 | -27.56 | 116.08 | 0.5073 | -968.6 | 999999 | |
| 0.43 | 111.92 | 0.25 | 65.57 | -14.49 | 162.59 | -28.34 | 121.03 | 0.5385 | -673.8 | -303.3 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -11.76 | 162.87 | -28.06 | 116.58 | 0.5171 | -707.0 | -635.1 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -14.68 | 162.36 | -28.58 | 121.14 | 0.5428 | -701.0 | -549.1 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -16.45 | 161.91 | -29.03 | 123.59 | 0.5608 | -704.0 | -581.7 | |
| 0.00 | 2.40 | 0.00 | 1.39 | -11.92 | 162.48 | -28.46 | 116.55 | 0.5233 | -788.0 | -594.8 | |
| 0.00 | 0.34 | 0.00 | 0.20 | -10.10 | 162.50 | -28.44 | 113.31 | 0.5125 | -606.0 | -626.8 | |
| 1.11 | 29.74 | 0.66 | 17.61 | -14.32 | 161.75 | -29.19 | 120.05 | 0.5481 | -954.8 | -411.0 | |
| 0.00 | 6.34 | 0.00 | 3.77 | -15.03 | 161.57 | -29.37 | 121.06 | 0.5550 | -71.0 | -86.7 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -5.17 | 162.53 | -28.41 | 103.90 | 0.4901 | 864.0 | 739.9 | |
| 0.00 | 4.97 | 0.00 | 2.91 | -12.57 | 161.81 | -29.13 | 117.17 | 0.5361 | -509.0 | -644.0 | |
| 4.80 | 163.93 | 2.84 | 98.22 | -13.86 | 161.57 | -29.37 | 119.15 | 0.5474 | -1021.3 | -548.9 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -13.03 | 161.64 | -29.29 | 117.83 | 0.5411 | -529.0 | -566.9 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -12.57 | 161.53 | -29.41 | 116.97 | 0.5398 | -698.0 | -499.0 | |
| 4.54 | -56.00 | 2.69 | -56.00 | -14.02 | 161.30 | -29.64 | 119.20 | 0.5518 | -908.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -13.13 | 161.21 | -29.72 | 117.67 | 0.5474 | -792.0 | -654.2 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -12.67 | 161.17 | -29.77 | 116.87 | 0.5452 | -984.0 | -840.0 | |
| 1.89 | -56.00 | 1.12 | -56.00 | -13.96 | 160.95 | -29.98 | 118.85 | 0.5558 | -905.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -13.25 | 161.05 | -29.88 | 117.76 | 0.5502 | -913.0 | -786.9 | |
| 2.66 | -56.00 | 1.58 | -56.00 | -13.56 | 160.98 | -29.96 | 118.21 | 0.5531 | -1146.4 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -14.58 | 160.83 | -30.11 | 119.75 | 0.5614 | -479.0 | -438.5 | |
| 0.00 | 2.31 | 0.00 | 1.37 | -12.52 | 161.01 | -29.92 | 116.50 | 0.5463 | -791.0 | -710.1 | |
| 7.97 | -56.00 | 4.75 | -56.00 | -13.84 | 160.69 | -30.25 | 118.46 | 0.5585 | -1108.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -17.23 | 160.12 | -30.81 | 123.31 | 0.5876 | -675.0 | -536.8 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -12.74 | 160.74 | -30.20 | 116.67 | 0.5512 | -847.0 | -698.4 | |
| 10.54 | -56.00 | 6.31 | -56.00 | -14.18 | 160.46 | -30.47 | 118.84 | 0.5635 | -871.6 | 999999 | |
| 4.88 | -56.00 | 2.92 | -56.00 | -13.94 | 160.39 | -30.54 | 118.39 | 0.5629 | -1059.3 | 999999 | |
| 3.77 | -56.00 | 2.27 | -56.00 | -14.50 | 160.13 | -30.81 | 119.09 | 0.5696 | -968.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -12.99 | 160.31 | -30.62 | 116.79 | 0.5582 | -819.0 | -710.4 | |
| 3.00 | -56.00 | 1.81 | -56.00 | -14.75 | 159.98 | -30.95 | 119.38 | 0.5730 | -863.7 | 999999 | |
| 2.14 | -56.00 | 1.29 | -56.00 | -14.62 | 159.82 | -31.11 | 119.07 | 0.5743 | -895.1 | 999999 | |
| 2.83 | -56.00 | 1.71 | -56.00 | -14.81 | 159.72 | -31.21 | 119.29 | 0.5767 | -744.3 | 999999 | |
| 0.26 | -56.00 | 0.15 | -56.00 | -14.22 | 159.81 | -31.12 | 118.43 | 0.5719 | -861.7 | 999999 | |
| 1.71 | -56.00 | 1.03 | -56.00 | -14.07 | 159.77 | -31.17 | 118.15 | 0.5716 | -780.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -13.46 | 159.64 | -31.29 | 117.09 | 0.5696 | -690.0 | -549.7 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -14.94 | 159.34 | -31.60 | 119.22 | 0.5822 | -359.0 | -341.4 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -13.74 | 159.42 | -31.51 | 117.38 | 0.5740 | -707.0 | -571.3 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -13.89 | 159.29 | -31.64 | 117.54 | 0.5766 | -398.0 | -350.1 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -18.01 | 158.25 | -32.69 | 123.03 | 0.6148 | -245.0 | -294.3 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -20.31 | 157.58 | -33.36 | 125.74 | 0.6377 | -683.0 | -536.7 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -12.49 | 159.07 | -31.87 | 115.13 | 0.5715 | -824.0 | -622.3 | |
| 0.00 | 2.23 | 0.00 | 1.38 | -16.35 | 158.40 | -32.54 | 120.70 | 0.6025 | -823.0 | -730.2 | |
| 0.00 | 2.49 | 0.00 | 1.50 | -12.74 | 158.85 | -32.08 | 115.39 | 0.5757 | -438.0 | -500.5 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -15.76 | 158.36 | -32.57 | 119.79 | 0.5993 | -530.0 | -448.0 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -12.43 | 158.83 | -32.11 | 114.88 | 0.5744 | -574.0 | -473.6 | |
| 0.00 | 1.80 | 0.00 | 1.09 | -12.25 | 158.71 | -32.23 | 114.51 | 0.5750 | -633.0 | -451.5 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -17.81 | 157.40 | -33.54 | 122.12 | 0.6233 | -533.0 | -458.6 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -13.65 | 157.48 | -33.45 | 115.97 | 0.5981 | -729.0 | -467.6 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -13.78 | 156.91 | -34.02 | 115.82 | 0.6060 | -503.0 | -429.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
