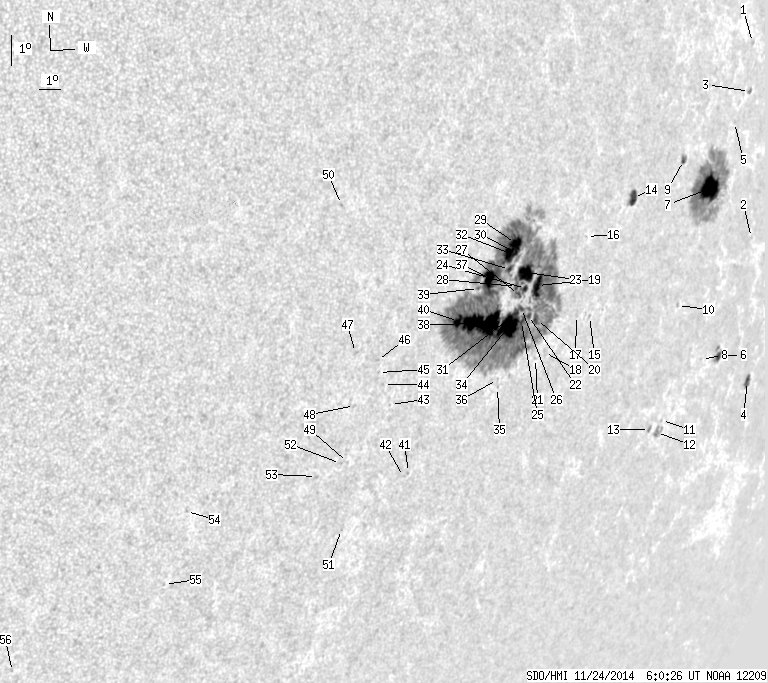

SDO HMI 2014-11-24 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 230.14 | 1212.99 | 212.89 | 1102.18 | -15.46 | 243.97 | 54.68 | 250.03 | 0.8361 | -354.8 | -151.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 1.48 | -8.45 | 253.23 | 63.94 | 259.78 | 0.9047 | -75.0 | -119.3 | |
| 0.00 | 0.60 | 0.00 | 0.79 | -14.45 | 255.81 | 66.52 | 253.61 | 0.9274 | 192.0 | 181.0 | |
| 0.77 | 2.31 | 0.90 | 2.71 | -9.94 | 253.52 | 64.23 | 258.18 | 0.9080 | -376.3 | -203.6 | |
| 4.46 | 6.86 | 6.91 | 10.63 | -19.03 | 258.92 | 69.63 | 249.24 | 0.9492 | 346.7 | 182.4 | |
| 0.00 | 1.63 | 0.00 | 1.87 | -10.85 | 252.83 | 63.54 | 257.09 | 0.9038 | -200.0 | -166.9 | |
| 3.69 | 9.17 | 4.93 | 12.20 | -18.14 | 255.73 | 66.43 | 249.66 | 0.9305 | 450.8 | 429.1 | |
| 33.00 | 174.75 | 37.12 | 196.55 | -12.84 | 251.96 | 62.67 | 254.77 | 0.8995 | 872.5 | 226.0 | |
| 0.00 | 0.60 | 0.00 | 0.76 | -18.20 | 254.46 | 65.17 | 249.38 | 0.9228 | 275.0 | 237.3 | |
| 2.49 | 4.63 | 2.60 | 4.84 | -11.93 | 249.92 | 60.62 | 255.46 | 0.8828 | 518.2 | 330.3 | |
| 0.00 | 1.37 | 0.00 | 1.56 | -16.43 | 251.63 | 62.34 | 250.77 | 0.9016 | -280.0 | -233.2 | |
| 0.00 | 0.69 | 0.00 | 0.84 | -20.08 | 252.90 | 63.60 | 247.07 | 0.9152 | -280.0 | -266.2 | |
| 1.80 | 7.37 | 2.19 | 9.00 | -20.46 | 252.83 | 63.53 | 246.65 | 0.9153 | -562.3 | -324.7 | |
| 0.69 | 2.06 | 0.82 | 2.45 | -20.35 | 252.25 | 62.95 | 246.65 | 0.9113 | -579.6 | -460.2 | |
| 7.97 | 10.20 | 7.75 | 9.92 | -12.98 | 247.31 | 58.02 | 253.79 | 0.8628 | 548.2 | 366.9 | |
| 0.00 | 1.20 | 0.00 | 1.16 | -16.62 | 246.30 | 57.01 | 249.41 | 0.8606 | -229.0 | -179.6 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -14.12 | 245.09 | 55.80 | 252.01 | 0.8454 | -384.0 | -327.0 | |
| 0.00 | 1.29 | 0.00 | 1.22 | -16.57 | 245.54 | 56.25 | 249.29 | 0.8541 | -90.0 | -158.3 | |
| 0.00 | 2.40 | 0.00 | 2.21 | -17.69 | 244.28 | 54.98 | 247.67 | 0.8456 | 295.0 | 243.8 | |
| 13.97 | 965.79 | 12.32 | 827.21 | -15.57 | 243.02 | 53.72 | 249.80 | 0.8297 | -510.3 | -247.7 | |
| 4.54 | -19.00 | 4.07 | -19.00 | -16.64 | 243.39 | 54.10 | 248.65 | 0.8354 | -261.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.70 | -17.87 | 243.87 | 54.58 | 247.36 | 0.8425 | -252.0 | -221.3 | |
| 1.80 | -19.00 | 1.59 | -19.00 | -16.50 | 242.91 | 53.62 | 248.68 | 0.8308 | -291.3 | 999999 | |
| 21.17 | -19.00 | 18.30 | -19.00 | -15.15 | 242.29 | 53.00 | 250.11 | 0.8220 | -829.2 | 999999 | |
| 2.66 | -19.00 | 2.31 | -19.00 | -15.65 | 242.43 | 53.13 | 249.55 | 0.8244 | -603.9 | 999999 | |
| 1.71 | -19.00 | 1.51 | -19.00 | -16.68 | 242.62 | 53.32 | 248.39 | 0.8286 | -279.8 | 999999 | |
| 1.46 | -19.00 | 1.27 | -19.00 | -16.27 | 242.46 | 53.16 | 248.83 | 0.8261 | -579.1 | 999999 | |
| 2.31 | -19.00 | 2.00 | -19.00 | -15.83 | 242.13 | 52.84 | 249.26 | 0.8221 | -819.7 | 999999 | |
| 2.83 | -19.00 | 2.43 | -19.00 | -15.57 | 241.94 | 52.64 | 249.51 | 0.8196 | -839.8 | 999999 | |
| 10.80 | -19.00 | 9.11 | -19.00 | -14.23 | 241.42 | 52.13 | 250.97 | 0.8116 | -1005.4 | 999999 | |
| 2.83 | -19.00 | 2.40 | -19.00 | -14.51 | 241.52 | 52.22 | 250.66 | 0.8132 | -809.0 | 999999 | |
| 1.80 | -19.00 | 1.57 | -19.00 | -16.42 | 242.21 | 52.91 | 248.58 | 0.8241 | -633.7 | 999999 | |
| 12.17 | -19.00 | 10.23 | -19.00 | -14.54 | 241.22 | 51.93 | 250.55 | 0.8104 | -1119.4 | 999999 | |
| 2.83 | -19.00 | 2.39 | -19.00 | -15.03 | 241.39 | 52.10 | 250.00 | 0.8132 | -861.6 | 999999 | |
| 28.11 | -19.00 | 24.39 | -19.00 | -16.82 | 242.00 | 52.71 | 248.05 | 0.8232 | -774.3 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.61 | -18.74 | 242.25 | 52.95 | 245.88 | 0.8303 | 117.0 | 116.2 | |
| 0.00 | 1.20 | 0.00 | 1.06 | -18.48 | 242.13 | 52.84 | 246.14 | 0.8287 | -334.0 | -295.9 | |
| 11.48 | -19.00 | 9.54 | -19.00 | -15.29 | 240.48 | 51.19 | 249.43 | 0.8051 | 438.6 | 999999 | |
| 45.94 | -19.00 | 38.63 | -19.00 | -16.69 | 240.64 | 51.34 | 247.80 | 0.8102 | -1116.4 | 999999 | |
| 0.60 | -19.00 | 0.49 | -19.00 | -15.59 | 240.05 | 50.75 | 248.94 | 0.8016 | -814.7 | 999999 | |
| 6.26 | -19.00 | 5.12 | -19.00 | -16.59 | 239.43 | 50.13 | 247.53 | 0.7982 | -1141.4 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.57 | -21.35 | 238.93 | 49.63 | 241.68 | 0.8083 | 507.0 | 363.1 | |
| 0.00 | 1.03 | 0.00 | 0.86 | -21.48 | 238.74 | 49.44 | 241.47 | 0.8070 | 484.0 | 387.0 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -19.14 | 237.13 | 47.84 | 243.63 | 0.7838 | -395.0 | -363.2 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -18.50 | 236.56 | 47.27 | 244.20 | 0.7760 | -605.0 | -494.2 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -18.11 | 236.20 | 46.90 | 244.54 | 0.7710 | -546.0 | -465.3 | |
| 0.00 | 1.37 | 0.00 | 1.06 | -17.73 | 236.02 | 46.72 | 244.94 | 0.7679 | -627.0 | -523.3 | |
| 0.00 | 1.80 | 0.00 | 1.36 | -17.45 | 234.94 | 45.64 | 244.86 | 0.7558 | -133.0 | -321.1 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -19.13 | 235.46 | 46.17 | 242.98 | 0.7674 | -393.0 | -361.1 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -20.95 | 235.84 | 46.55 | 240.92 | 0.7780 | -425.0 | -356.7 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -12.83 | 233.09 | 43.79 | 250.16 | 0.7197 | -643.0 | -563.6 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -23.13 | 236.51 | 47.21 | 238.61 | 0.7928 | -581.0 | -531.9 | |
| 0.00 | 1.20 | 0.00 | 0.94 | -20.98 | 235.53 | 46.23 | 240.75 | 0.7751 | -623.0 | -511.4 | |
| 0.00 | 1.37 | 0.00 | 1.06 | -21.37 | 234.59 | 45.29 | 239.86 | 0.7676 | -129.0 | -207.2 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -22.38 | 229.30 | 40.00 | 235.92 | 0.7201 | -526.0 | -489.2 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -24.77 | 229.24 | 39.95 | 232.96 | 0.7328 | -563.0 | -433.5 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -27.56 | 223.97 | 34.67 | 226.13 | 0.7019 | -586.0 | -527.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
