SDO HMI 2014-11-24 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.06 | 0.00 | 18.02 | -12.91 | 226.28 | 36.98 | 247.09 | 0.6384 | 164.7 | 134.3 | |
|
previous
or next observation for the same group /

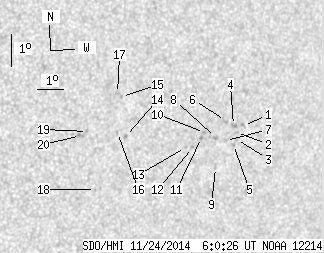

back to the solar disc SDO HMI 2014-11-24 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.80 | -12.71 | 228.74 | 39.45 | 248.60 | 0.6680 | 651.0 | 509.8 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -12.92 | 228.51 | 39.21 | 248.20 | 0.6660 | 514.0 | 495.8 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -13.13 | 228.55 | 39.25 | 247.91 | 0.6673 | 451.0 | 423.4 | |
| 0.00 | 2.40 | 0.00 | 1.58 | -12.70 | 228.35 | 39.05 | 248.44 | 0.6632 | 721.0 | 586.6 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -13.28 | 228.46 | 39.16 | 247.65 | 0.6669 | 465.0 | 409.7 | |
| 0.00 | 2.49 | 0.00 | 1.63 | -12.54 | 228.01 | 38.71 | 248.52 | 0.6584 | 565.0 | 519.4 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -13.15 | 228.12 | 38.82 | 247.68 | 0.6623 | 539.0 | 462.2 | |
| 0.00 | 1.80 | 0.00 | 1.18 | -13.05 | 227.71 | 38.42 | 247.64 | 0.6569 | 768.0 | 678.7 | |
| 0.00 | 1.37 | 0.00 | 0.90 | -13.98 | 227.89 | 38.59 | 246.39 | 0.6629 | 496.0 | 435.8 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -12.89 | 227.25 | 37.96 | 247.66 | 0.6506 | 777.0 | 686.9 | |
| 0.00 | 1.29 | 0.00 | 0.84 | -13.04 | 227.17 | 37.87 | 247.39 | 0.6502 | 821.0 | 605.3 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -13.34 | 226.87 | 37.58 | 246.81 | 0.6479 | 681.0 | 592.4 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -13.34 | 226.60 | 37.31 | 246.69 | 0.6445 | 710.0 | 599.6 | |
| 0.00 | 1.89 | 0.00 | 1.18 | -12.95 | 224.27 | 34.98 | 246.03 | 0.6137 | -593.0 | -471.8 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -11.73 | 223.94 | 34.64 | 247.75 | 0.6037 | -693.0 | -562.5 | |
| 0.00 | 1.46 | 0.00 | 0.91 | -12.82 | 223.96 | 34.66 | 246.05 | 0.6091 | -768.0 | -568.9 | |
| 0.00 | 1.46 | 0.00 | 0.90 | -11.63 | 223.78 | 34.48 | 247.81 | 0.6012 | -702.0 | -572.4 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -14.56 | 223.43 | 34.14 | 243.08 | 0.6114 | -703.0 | -444.0 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -12.77 | 222.85 | 33.55 | 245.49 | 0.5947 | -687.0 | -571.7 | |
| 0.00 | 2.74 | 0.00 | 1.68 | -12.89 | 222.61 | 33.31 | 245.16 | 0.5922 | -719.0 | -670.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
