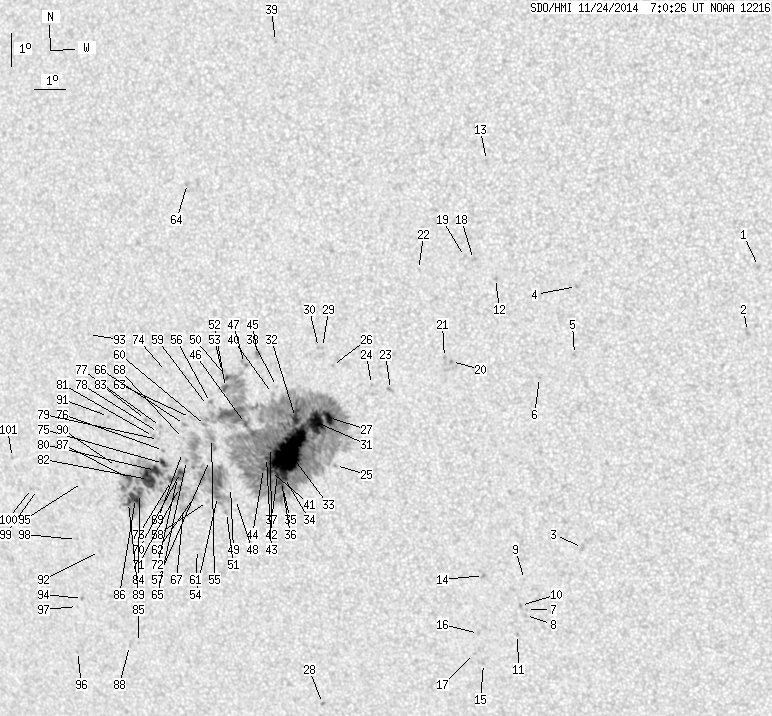

SDO HMI 2014-11-24 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 183.25 | 1308.22 | 103.56 | 738.15 | -13.25 | 164.51 | -24.24 | 122.77 | 0.4766 | 349.6 | 112.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.91 | -7.45 | 180.39 | -8.36 | 137.88 | 0.2160 | 652.0 | 514.7 | |
| 0.00 | 3.69 | 0.00 | 1.88 | -9.41 | 180.01 | -8.74 | 142.17 | 0.2455 | 301.0 | 391.0 | |
| 0.00 | 2.74 | 0.00 | 1.47 | -16.04 | 174.58 | -14.17 | 142.31 | 0.3866 | 741.0 | 517.5 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -8.08 | 174.83 | -13.92 | 125.46 | 0.2938 | 969.0 | 748.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -10.13 | 174.68 | -14.07 | 130.56 | 0.3164 | 891.0 | 713.3 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -10.83 | 173.56 | -15.19 | 130.09 | 0.3380 | 808.0 | 706.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -18.00 | 172.61 | -16.14 | 141.86 | 0.4298 | 759.0 | 624.3 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -18.19 | 172.56 | -16.19 | 142.06 | 0.4326 | 663.0 | 502.7 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -17.06 | 172.64 | -16.11 | 140.43 | 0.4183 | 671.0 | 576.6 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -17.87 | 172.43 | -16.32 | 141.36 | 0.4301 | 817.0 | 689.1 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -18.79 | 172.24 | -16.51 | 142.42 | 0.4429 | 844.0 | 635.3 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -7.86 | 172.33 | -16.42 | 120.58 | 0.3268 | 833.0 | 750.1 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -4.33 | 172.16 | -16.59 | 110.17 | 0.3046 | 751.0 | 586.0 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -16.94 | 171.32 | -17.43 | 138.07 | 0.4306 | 928.0 | 762.6 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -19.72 | 171.02 | -17.73 | 141.82 | 0.4656 | 789.0 | 564.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -18.77 | 170.97 | -17.78 | 140.36 | 0.4551 | 707.0 | 503.6 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -19.40 | 170.76 | -17.99 | 140.97 | 0.4645 | 632.0 | 519.4 | |
| 0.00 | 2.49 | 0.00 | 1.30 | -7.29 | 171.66 | -17.09 | 118.11 | 0.3319 | 882.0 | 672.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -7.20 | 171.39 | -17.36 | 117.50 | 0.3353 | 651.0 | 536.7 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -10.37 | 170.82 | -17.93 | 124.53 | 0.3693 | 1048.0 | 847.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -10.25 | 170.60 | -18.15 | 123.95 | 0.3711 | 788.0 | 699.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -7.61 | 169.92 | -18.83 | 116.69 | 0.3596 | 598.0 | 401.6 | |
| 0.00 | 2.57 | 0.00 | 1.39 | -11.24 | 168.81 | -19.94 | 123.67 | 0.4036 | 749.0 | 682.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -11.09 | 168.21 | -20.54 | 122.61 | 0.4104 | 792.0 | 576.5 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -13.58 | 166.83 | -21.92 | 125.83 | 0.4496 | 705.0 | 583.5 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -10.53 | 167.00 | -21.76 | 120.00 | 0.4226 | 894.0 | 680.2 | |
| 8.14 | 894.98 | 4.48 | 500.21 | -12.11 | 166.73 | -22.02 | 122.92 | 0.4385 | 1397.1 | 291.6 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -21.05 | 165.40 | -23.35 | 136.16 | 0.5361 | -663.0 | -595.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -9.99 | 166.71 | -22.04 | 118.55 | 0.4225 | 767.0 | 618.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -9.99 | 166.58 | -22.17 | 118.42 | 0.4243 | 707.0 | 616.5 | |
| 22.03 | -27.00 | 12.17 | -27.00 | -12.27 | 166.33 | -22.42 | 122.76 | 0.4451 | 1258.4 | 999999 | |
| 8.91 | -27.00 | 4.95 | -27.00 | -12.12 | 165.65 | -23.10 | 121.74 | 0.4529 | 1024.4 | 999999 | |
| 78.25 | -27.00 | 43.74 | -27.00 | -13.20 | 165.35 | -23.40 | 123.44 | 0.4653 | 1383.8 | 999999 | |
| 2.40 | -27.00 | 1.35 | -27.00 | -13.97 | 165.10 | -23.65 | 124.57 | 0.4748 | 899.3 | 999999 | |
| 0.26 | -27.00 | 0.14 | -27.00 | -14.24 | 165.00 | -23.75 | 124.96 | 0.4783 | 826.0 | 999999 | |
| 3.00 | -27.00 | 1.69 | -27.00 | -14.09 | 164.98 | -23.77 | 124.67 | 0.4772 | 762.7 | 999999 | |
| 1.63 | -27.00 | 0.92 | -27.00 | -13.88 | 164.87 | -23.88 | 124.17 | 0.4769 | 863.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -11.19 | 165.11 | -23.64 | 119.35 | 0.4532 | 732.0 | 540.5 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -0.86 | 165.57 | -23.18 | 96.23 | 0.3977 | 868.0 | 724.9 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -11.40 | 164.96 | -23.79 | 119.62 | 0.4568 | 747.0 | 545.1 | |
| 1.46 | -27.00 | 0.82 | -27.00 | -13.79 | 164.65 | -24.10 | 123.77 | 0.4790 | 723.0 | 999999 | |
| 0.26 | -27.00 | 0.14 | -27.00 | -13.05 | 164.73 | -24.02 | 122.51 | 0.4722 | 938.7 | 999999 | |
| 0.26 | -27.00 | 0.14 | -27.00 | -13.36 | 164.56 | -24.19 | 122.90 | 0.4767 | 855.3 | 999999 | |
| 2.06 | -27.00 | 1.16 | -27.00 | -13.70 | 164.43 | -24.32 | 123.37 | 0.4812 | 690.4 | 999999 | |
| 0.00 | 3.77 | 0.00 | 2.09 | -10.22 | 164.57 | -24.18 | 116.92 | 0.4541 | -534.0 | -521.9 | |
| 1.29 | -27.00 | 0.72 | -27.00 | -12.33 | 163.97 | -24.78 | 120.41 | 0.4767 | 694.3 | 999999 | |
| 0.00 | 3.34 | 0.00 | 1.86 | -10.50 | 164.11 | -24.64 | 117.05 | 0.4622 | -704.0 | -706.8 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -14.66 | 163.37 | -25.38 | 123.99 | 0.5022 | 592.0 | 400.7 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -14.30 | 163.25 | -25.51 | 123.24 | 0.5009 | 405.0 | 334.1 | |
| 1.29 | -27.00 | 0.72 | -27.00 | -10.93 | 163.51 | -25.24 | 117.35 | 0.4734 | -1020.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -15.07 | 163.01 | -25.74 | 124.33 | 0.5099 | -714.0 | -620.7 | |
| 2.06 | -27.00 | 1.16 | -27.00 | -11.24 | 163.41 | -25.34 | 117.84 | 0.4767 | -937.3 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.54 | -10.78 | 163.35 | -25.40 | 116.93 | 0.4745 | -835.0 | -650.5 | |
| 1.03 | 111.58 | 0.59 | 64.01 | -14.58 | 162.77 | -25.98 | 123.26 | 0.5091 | -653.3 | -169.7 | |
| 0.00 | 15.08 | 0.00 | 8.59 | -12.80 | 162.78 | -25.97 | 120.15 | 0.4959 | -199.0 | -67.1 | |
| 0.00 | 1.97 | 0.00 | 1.12 | -11.70 | 162.86 | -25.89 | 118.22 | 0.4872 | -814.0 | -714.0 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -13.47 | 162.63 | -26.12 | 121.22 | 0.5026 | 295.0 | 91.9 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -14.74 | 162.41 | -26.34 | 123.18 | 0.5149 | -572.0 | -499.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -11.79 | 162.75 | -26.00 | 118.30 | 0.4893 | -722.0 | -569.9 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -12.40 | 162.62 | -26.13 | 119.30 | 0.4952 | -245.0 | -266.2 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -16.23 | 161.85 | -26.90 | 125.11 | 0.5332 | -830.0 | -593.1 | |
| 0.00 | 6.51 | 0.00 | 3.77 | -14.59 | 161.98 | -26.77 | 122.53 | 0.5191 | -189.0 | -235.2 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -12.17 | 162.14 | -26.61 | 118.45 | 0.5000 | -805.0 | -643.5 | |
| 0.00 | 2.23 | 0.00 | 1.24 | -5.11 | 162.58 | -26.17 | 104.83 | 0.4563 | 825.0 | 617.3 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -13.48 | 161.85 | -26.90 | 120.53 | 0.5129 | -1073.0 | -916.2 | |
| 0.00 | 2.23 | 0.00 | 1.28 | -12.38 | 161.91 | -26.84 | 118.64 | 0.5045 | -793.0 | -729.2 | |
| 0.00 | 7.28 | 0.00 | 4.24 | -14.97 | 161.55 | -27.20 | 122.77 | 0.5273 | -104.0 | -113.6 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -12.81 | 161.83 | -26.92 | 119.33 | 0.5085 | -829.0 | -680.3 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -13.24 | 161.74 | -27.01 | 120.01 | 0.5126 | -741.0 | -612.6 | |
| 2.74 | 145.86 | 1.59 | 85.54 | -13.86 | 161.60 | -27.15 | 120.94 | 0.5187 | -1055.6 | -554.6 | |
| 0.69 | 29.22 | 0.40 | 17.01 | -14.32 | 161.50 | -27.25 | 121.64 | 0.5232 | -904.1 | -359.4 | |
| 0.77 | -70.00 | 0.45 | -70.00 | -14.01 | 161.47 | -27.28 | 121.10 | 0.5214 | -921.4 | 999999 | |
| 1.37 | -70.00 | 0.80 | -70.00 | -14.11 | 161.25 | -27.50 | 121.07 | 0.5249 | -876.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -10.78 | 161.47 | -27.28 | 115.36 | 0.5003 | -666.0 | -593.1 | |
| 3.17 | -70.00 | 1.84 | -70.00 | -13.59 | 161.05 | -27.70 | 120.01 | 0.5239 | -1175.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -13.19 | 161.10 | -27.65 | 119.37 | 0.5206 | -894.0 | -775.3 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -12.45 | 161.08 | -27.67 | 118.08 | 0.5160 | -898.0 | -779.1 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -12.64 | 160.99 | -27.76 | 118.33 | 0.5184 | -679.0 | -726.2 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -12.85 | 160.97 | -27.78 | 118.68 | 0.5201 | -876.0 | -699.1 | |
| 8.14 | -70.00 | 4.75 | -70.00 | -13.81 | 160.74 | -28.01 | 120.12 | 0.5294 | -1111.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -12.76 | 160.81 | -27.94 | 118.39 | 0.5216 | -869.0 | -749.6 | |
| 16.28 | -70.00 | 9.53 | -70.00 | -14.09 | 160.46 | -28.29 | 120.36 | 0.5349 | -965.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -12.25 | 160.59 | -28.16 | 117.32 | 0.5212 | -846.0 | -712.4 | |
| 1.97 | -70.00 | 1.16 | -70.00 | -14.52 | 160.09 | -28.66 | 120.77 | 0.5426 | -982.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -19.19 | 159.25 | -29.50 | 127.25 | 0.5864 | -693.0 | -579.1 | |
| 8.57 | -70.00 | 5.06 | -70.00 | -14.68 | 159.92 | -28.83 | 120.89 | 0.5457 | -883.0 | 999999 | |
| 2.91 | -70.00 | 1.72 | -70.00 | -14.07 | 159.80 | -28.95 | 119.79 | 0.5431 | -791.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -19.29 | 158.91 | -29.84 | 127.09 | 0.5911 | -626.0 | -546.0 | |
| 2.31 | -70.00 | 1.37 | -70.00 | -14.81 | 159.66 | -29.09 | 120.88 | 0.5499 | -746.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -13.70 | 159.40 | -29.35 | 118.87 | 0.5459 | -727.0 | -622.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -12.17 | 159.32 | -29.43 | 116.23 | 0.5376 | -837.0 | -744.0 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -16.35 | 158.38 | -30.37 | 122.28 | 0.5760 | -734.0 | -540.7 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -9.69 | 158.90 | -29.85 | 111.60 | 0.5298 | -690.0 | -593.1 | |
| 0.00 | 1.37 | 0.00 | 0.84 | -17.83 | 157.49 | -31.26 | 123.81 | 0.5967 | -679.0 | -573.9 | |
| 0.00 | 2.31 | 0.00 | 1.39 | -14.21 | 158.12 | -30.63 | 118.74 | 0.5654 | -213.0 | -214.8 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -19.51 | 156.96 | -31.79 | 125.80 | 0.6146 | -530.0 | -505.2 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -18.08 | 157.26 | -31.49 | 124.00 | 0.6012 | -410.0 | -336.9 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -15.98 | 157.62 | -31.13 | 121.14 | 0.5829 | -559.0 | -473.4 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -14.46 | 156.47 | -32.28 | 117.95 | 0.5877 | -595.0 | -509.6 | |
| 0.00 | 1.46 | 0.00 | 0.89 | -14.43 | 156.26 | -32.49 | 117.76 | 0.5902 | -602.0 | -527.3 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -13.48 | 155.72 | -33.03 | 115.94 | 0.5917 | -514.0 | -447.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
