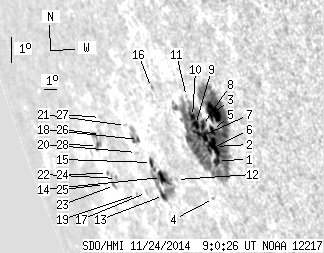

SDO HMI 2014-11-24 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.13 | 352.03 | 83.69 | 438.62 | -18.63 | 123.29 | -64.37 | 111.25 | 0.9170 | 276.3 | 24.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.14 | 272.24 | 2.51 | 318.28 | -19.27 | 124.98 | -62.68 | 112.24 | 0.9079 | 514.8 | 125.4 | |
| 9.77 | -1.00 | 11.38 | -1.00 | -18.82 | 125.08 | -62.58 | 111.78 | 0.9066 | 640.8 | 999999 | |
| 17.74 | -1.00 | 20.04 | -1.00 | -17.74 | 125.70 | -61.96 | 110.72 | 0.9007 | 797.1 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.74 | -20.51 | 123.80 | -63.86 | 113.33 | 0.9174 | 262.0 | 189.6 | |
| 3.60 | -1.00 | 4.14 | -1.00 | -18.31 | 125.27 | -62.39 | 111.26 | 0.9045 | 763.9 | 999999 | |
| 1.11 | -1.00 | 1.32 | -1.00 | -18.93 | 124.66 | -63.00 | 111.81 | 0.9096 | 63.5 | 999999 | |
| 8.65 | -1.00 | 10.26 | -1.00 | -18.49 | 124.47 | -63.19 | 111.30 | 0.9103 | 259.8 | 999999 | |
| 3.94 | -1.00 | 4.62 | -1.00 | -18.17 | 124.68 | -62.98 | 110.99 | 0.9084 | 589.8 | 999999 | |
| 4.03 | -1.00 | 4.80 | -1.00 | -18.15 | 124.20 | -63.46 | 110.88 | 0.9116 | 280.6 | 999999 | |
| 3.17 | -1.00 | 3.78 | -1.00 | -17.91 | 124.15 | -63.51 | 110.60 | 0.9116 | 458.2 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.82 | -17.28 | 124.14 | -63.52 | 109.92 | 0.9109 | 231.0 | 217.4 | |
| 0.00 | 1.03 | 0.00 | 1.38 | -19.97 | 121.43 | -66.23 | 112.30 | 0.9313 | -200.0 | -220.0 | |
| 3.43 | 43.70 | 4.94 | 61.99 | -20.52 | 119.88 | -67.78 | 112.61 | 0.9407 | -230.2 | -250.2 | |
| 5.06 | -13.00 | 7.14 | -13.00 | -19.94 | 120.24 | -67.42 | 112.06 | 0.9381 | -560.6 | 999999 | |
| 2.31 | -13.00 | 3.32 | -13.00 | -19.48 | 119.81 | -67.85 | 111.50 | 0.9400 | -58.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.67 | -17.07 | 121.71 | -65.95 | 109.27 | 0.9264 | -482.0 | -381.1 | |
| 0.00 | 1.03 | 0.00 | 1.58 | -20.47 | 118.44 | -69.22 | 112.32 | 0.9483 | -164.0 | -192.9 | |
| 0.86 | 11.31 | 1.25 | 16.68 | -18.77 | 119.33 | -68.33 | 110.68 | 0.9420 | -175.6 | 27.9 | |
| 0.00 | 0.86 | 0.00 | 1.39 | -20.56 | 117.42 | -70.24 | 112.26 | 0.9535 | -192.0 | -164.1 | |
| 0.00 | 0.94 | 0.00 | 1.41 | -19.19 | 118.78 | -68.88 | 111.04 | 0.9454 | -281.0 | -132.6 | |
| 0.00 | 0.26 | 0.00 | 0.39 | -18.35 | 118.56 | -69.10 | 110.12 | 0.9458 | 301.0 | 270.3 | |
| 0.00 | 1.97 | 0.00 | 3.44 | -20.10 | 115.97 | -71.69 | 111.57 | 0.9600 | -563.0 | -509.4 | |
| 0.00 | 2.91 | 0.00 | 5.23 | -20.34 | 115.49 | -72.17 | 111.75 | 0.9623 | -359.0 | -337.9 | |
| 0.43 | 1.37 | 0.78 | 2.49 | -19.96 | 115.18 | -72.48 | 111.32 | 0.9634 | -399.8 | -343.5 | |
| 0.00 | 0.34 | 0.00 | 0.65 | -20.34 | 114.41 | -73.25 | 111.60 | 0.9669 | 104.0 | 117.8 | |
| 0.00 | 1.29 | 0.00 | 2.23 | -18.71 | 115.85 | -71.81 | 110.12 | 0.9596 | -512.0 | -469.4 | |
| 0.00 | 0.77 | 0.00 | 1.29 | -18.16 | 116.41 | -71.25 | 109.62 | 0.9566 | -152.0 | -152.9 | |
| 1.89 | 9.43 | 3.41 | 16.96 | -19.08 | 115.14 | -72.52 | 110.40 | 0.9630 | -494.0 | -401.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
