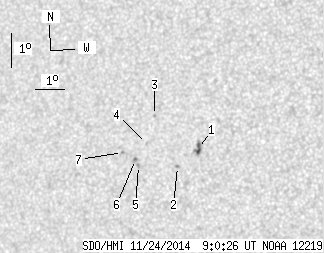

SDO HMI 2014-11-24 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.00 | 14.31 | 1.70 | 8.19 | 4.13 | 157.49 | -30.17 | 84.76 | 0.5053 | 193.7 | 94.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.00 | 6.26 | 1.70 | 3.55 | 4.24 | 158.52 | -29.14 | 84.41 | 0.4899 | -984.2 | -768.1 | |
| 0.00 | 1.46 | 0.00 | 0.83 | 3.69 | 157.83 | -29.83 | 85.60 | 0.4999 | -774.0 | -657.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 5.19 | 156.97 | -30.69 | 82.76 | 0.5145 | 617.0 | 541.2 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 4.36 | 156.73 | -30.93 | 84.41 | 0.5170 | 754.0 | 512.5 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 3.70 | 156.48 | -31.18 | 85.71 | 0.5202 | 837.0 | 683.5 | |
| 0.00 | 2.23 | 0.00 | 1.29 | 3.88 | 156.37 | -31.29 | 85.38 | 0.5220 | 902.0 | 756.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 4.08 | 155.91 | -31.75 | 85.05 | 0.5290 | 829.0 | 763.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
