SDO HMI 2014-11-24 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.00 | 359.72 | 73.19 | 440.22 | -18.66 | 123.26 | -63.85 | 111.38 | 0.9136 | 268.4 | 36.7 | |
|
previous
or next observation for the same group /

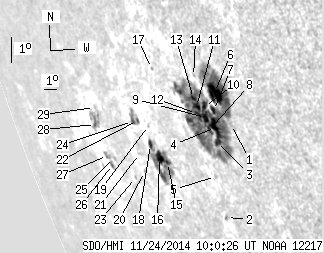

back to the solar disc SDO HMI 2014-11-24 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 1.41 | -18.71 | 126.20 | -60.91 | 112.01 | 0.8946 | 282.0 | 327.3 | |
| 0.00 | 1.46 | 0.00 | 1.79 | -21.74 | 123.72 | -63.39 | 114.75 | 0.9162 | 246.0 | 159.9 | |
| 3.26 | 274.36 | 3.75 | 314.95 | -19.32 | 124.82 | -62.30 | 112.37 | 0.9054 | 449.0 | 145.7 | |
| 9.60 | -3.00 | 10.97 | -3.00 | -18.84 | 125.07 | -62.05 | 111.90 | 0.9029 | 686.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.54 | -20.42 | 123.96 | -63.15 | 113.38 | 0.9127 | 254.0 | 219.1 | |
| 15.94 | -3.00 | 17.69 | -3.00 | -17.72 | 125.70 | -61.42 | 110.82 | 0.8967 | 780.2 | 999999 | |
| 2.83 | -3.00 | 3.19 | -3.00 | -18.30 | 125.28 | -61.84 | 111.36 | 0.9006 | 750.4 | 999999 | |
| 0.94 | -3.00 | 1.09 | -3.00 | -18.92 | 124.61 | -62.51 | 111.89 | 0.9062 | 55.7 | 999999 | |
| 4.11 | -3.00 | 4.76 | -3.00 | -18.54 | 124.59 | -62.53 | 111.48 | 0.9058 | 408.1 | 999999 | |
| 3.51 | -3.00 | 4.04 | -3.00 | -18.19 | 124.74 | -62.37 | 111.13 | 0.9042 | 612.0 | 999999 | |
| 4.80 | -3.00 | 5.62 | -3.00 | -18.20 | 124.19 | -62.93 | 111.03 | 0.9081 | 275.0 | 999999 | |
| 0.26 | -3.00 | 0.30 | -3.00 | -18.43 | 124.04 | -63.08 | 111.25 | 0.9094 | -120.0 | 999999 | |
| 2.31 | -3.00 | 2.71 | -3.00 | -17.95 | 124.14 | -62.97 | 110.75 | 0.9080 | 461.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.88 | -17.25 | 124.58 | -62.54 | 110.08 | 0.9040 | 263.0 | 250.0 | |
| 1.71 | 46.61 | 2.34 | 64.80 | -20.07 | 120.64 | -66.47 | 112.37 | 0.9328 | -711.0 | -196.2 | |
| 6.25 | -15.00 | 8.67 | -15.00 | -19.93 | 120.12 | -66.99 | 112.12 | 0.9357 | -509.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.20 | -17.08 | 121.69 | -65.43 | 109.37 | 0.9231 | -407.0 | -367.1 | |
| 2.48 | -15.00 | 3.49 | -15.00 | -19.53 | 119.73 | -67.39 | 111.63 | 0.9375 | -85.9 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.35 | -18.92 | 120.08 | -67.04 | 111.05 | 0.9349 | -406.0 | -404.0 | |
| 0.00 | 0.51 | 0.00 | 0.77 | -20.42 | 118.40 | -68.72 | 112.35 | 0.9456 | -291.0 | -298.2 | |
| 0.00 | 0.86 | 0.00 | 1.28 | -19.85 | 118.50 | -68.61 | 111.77 | 0.9445 | -357.0 | -367.3 | |
| 0.77 | 10.54 | 1.10 | 15.18 | -18.78 | 119.28 | -67.83 | 110.77 | 0.9393 | -177.8 | -3.9 | |
| 0.00 | 0.77 | 0.00 | 1.22 | -20.65 | 117.36 | -69.76 | 112.42 | 0.9511 | -85.0 | -112.9 | |
| 1.46 | -22.00 | 2.12 | -22.00 | -18.83 | 118.82 | -68.29 | 110.75 | 0.9419 | 286.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 2.18 | -20.05 | 115.98 | -71.13 | 111.59 | 0.9573 | -511.0 | -478.3 | |
| 0.00 | 2.74 | 0.00 | 4.77 | -20.29 | 115.52 | -71.60 | 111.77 | 0.9596 | -423.0 | -380.0 | |
| 0.00 | 3.77 | 0.00 | 6.61 | -20.01 | 115.33 | -71.79 | 111.46 | 0.9603 | -522.0 | -431.3 | |
| 0.77 | 11.40 | 1.35 | 19.84 | -19.03 | 115.17 | -71.94 | 110.43 | 0.9604 | -557.9 | -444.5 | |
| 0.00 | 0.86 | 0.00 | 1.45 | -18.48 | 115.65 | -71.47 | 109.92 | 0.9578 | -447.0 | -395.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
