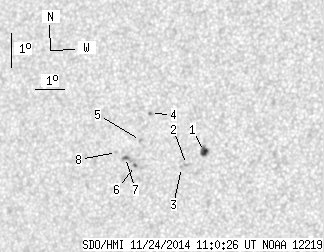

SDO HMI 2014-11-24 11:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.74 | 20.56 | 3.23 | 11.67 | 4.02 | 157.39 | -29.18 | 84.83 | 0.4903 | 7.6 | 193.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 11:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.20 | 6.17 | 2.35 | 3.46 | 4.13 | 158.79 | -27.78 | 84.42 | 0.4690 | -905.0 | -625.1 | |
| 0.00 | 2.31 | 0.00 | 1.30 | 3.74 | 158.20 | -28.37 | 85.33 | 0.4777 | -621.0 | -593.0 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 3.64 | 158.03 | -28.54 | 85.54 | 0.4802 | -644.0 | -532.4 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 5.23 | 156.91 | -29.66 | 82.48 | 0.4991 | 726.0 | 708.9 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 4.42 | 156.61 | -29.96 | 84.14 | 0.5026 | 740.0 | 572.8 | |
| 0.51 | 6.94 | 0.29 | 3.98 | 3.68 | 156.46 | -30.10 | 85.63 | 0.5040 | 721.0 | 674.0 | |
| 1.03 | -6.00 | 0.59 | -6.00 | 3.91 | 156.11 | -30.46 | 85.21 | 0.5095 | 927.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 4.06 | 155.80 | -30.77 | 84.97 | 0.5144 | 518.0 | 461.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
