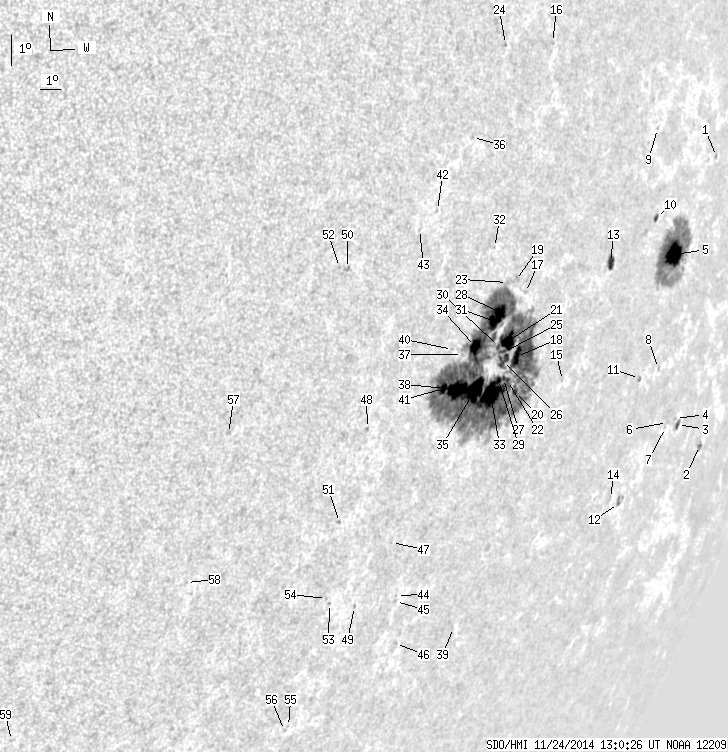

SDO HMI 2014-11-24 13:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 197.19 | 1061.90 | 198.71 | 1065.24 | -15.47 | 243.80 | 58.33 | 250.92 | 0.8673 | -374.4 | -120.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 13:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 1.42 | -9.92 | 253.88 | 68.41 | 258.70 | 0.9356 | -278.0 | -189.8 | |
| 1.20 | 3.00 | 2.32 | 5.81 | -18.96 | 259.11 | 73.63 | 249.86 | 0.9677 | 303.6 | 228.0 | |
| 2.48 | 3.85 | 4.02 | 6.23 | -18.21 | 256.04 | 70.57 | 250.24 | 0.9532 | 392.8 | 270.5 | |
| 0.00 | 1.11 | 0.00 | 1.76 | -18.01 | 255.67 | 70.19 | 250.39 | 0.9512 | 434.0 | 373.7 | |
| 25.95 | 148.53 | 33.60 | 192.03 | -12.83 | 251.96 | 66.48 | 255.35 | 0.9257 | 775.2 | 201.7 | |
| 0.00 | 1.11 | 0.00 | 1.71 | -18.12 | 255.03 | 69.56 | 250.19 | 0.9480 | 211.0 | 196.7 | |
| 0.00 | 0.43 | 0.00 | 0.66 | -18.27 | 254.99 | 69.51 | 250.02 | 0.9479 | 474.0 | 465.0 | |
| 0.00 | 1.28 | 0.00 | 1.77 | -16.37 | 252.87 | 67.40 | 251.71 | 0.9345 | 365.0 | 366.2 | |
| 0.00 | 1.20 | 0.00 | 1.37 | -8.93 | 249.11 | 63.63 | 259.23 | 0.9028 | -273.0 | -197.7 | |
| 1.63 | 3.00 | 1.95 | 3.58 | -11.68 | 250.07 | 64.60 | 256.34 | 0.9121 | 218.3 | 132.2 | |
| 0.00 | 2.23 | 0.00 | 2.91 | -16.64 | 251.56 | 66.08 | 251.22 | 0.9268 | -446.0 | -246.0 | |
| 0.60 | 5.48 | 0.86 | 7.83 | -20.61 | 253.02 | 67.55 | 247.26 | 0.9395 | -398.0 | -253.8 | |
| 6.00 | 8.91 | 6.60 | 9.80 | -12.95 | 247.49 | 62.02 | 254.56 | 0.8947 | 482.3 | 343.9 | |
| 0.00 | 1.63 | 0.00 | 2.24 | -20.43 | 252.20 | 66.73 | 247.30 | 0.9347 | -509.0 | -363.4 | |
| 0.00 | 0.43 | 0.00 | 0.46 | -16.55 | 246.14 | 60.66 | 250.33 | 0.8894 | -320.0 | -305.6 | |
| 0.00 | 1.37 | 0.00 | 1.25 | -6.16 | 242.11 | 56.64 | 261.52 | 0.8417 | -268.0 | -267.0 | |
| 0.00 | 1.46 | 0.00 | 1.39 | -13.73 | 242.65 | 57.18 | 252.77 | 0.8568 | 321.0 | 257.7 | |
| 11.31 | 844.31 | 11.00 | 795.50 | -15.71 | 242.95 | 57.48 | 250.58 | 0.8627 | -427.3 | -196.5 | |
| 0.00 | 5.23 | 0.00 | 4.88 | -13.35 | 241.95 | 56.48 | 253.07 | 0.8500 | -348.0 | -297.8 | |
| 2.91 | -18.00 | 2.89 | -18.00 | -16.81 | 243.34 | 57.87 | 249.42 | 0.8679 | -170.2 | 999999 | |
| 17.90 | -18.00 | 17.03 | -18.00 | -15.20 | 242.27 | 56.80 | 251.01 | 0.8561 | -762.1 | 999999 | |
| 1.88 | -18.00 | 1.83 | -18.00 | -16.45 | 242.77 | 57.29 | 249.69 | 0.8626 | -261.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.03 | -13.40 | 241.52 | 56.05 | 252.92 | 0.8463 | -362.0 | -355.9 | |
| 0.00 | 1.20 | 0.00 | 1.03 | -6.16 | 239.63 | 54.15 | 261.20 | 0.8177 | -354.0 | -382.4 | |
| 0.26 | -18.00 | 0.24 | -18.00 | -15.54 | 242.19 | 56.72 | 250.60 | 0.8560 | -853.3 | 999999 | |
| 8.22 | -18.00 | 7.85 | -18.00 | -15.82 | 242.26 | 56.78 | 250.30 | 0.8571 | -663.8 | 999999 | |
| 2.57 | -18.00 | 2.48 | -18.00 | -16.38 | 242.51 | 57.03 | 249.71 | 0.8602 | -497.5 | 999999 | |
| 11.05 | -18.00 | 10.25 | -18.00 | -14.32 | 241.48 | 56.00 | 251.85 | 0.8475 | -877.8 | 999999 | |
| 2.83 | -18.00 | 2.71 | -18.00 | -16.41 | 242.23 | 56.76 | 249.62 | 0.8580 | -622.9 | 999999 | |
| 1.63 | -18.00 | 1.53 | -18.00 | -15.37 | 241.79 | 56.31 | 250.70 | 0.8522 | -758.9 | 999999 | |
| 10.96 | -18.00 | 10.12 | -18.00 | -14.59 | 241.25 | 55.78 | 251.48 | 0.8460 | -1017.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.69 | -12.30 | 240.46 | 54.98 | 253.98 | 0.8347 | 301.0 | 260.7 | |
| 26.13 | -18.00 | 24.94 | -18.00 | -16.84 | 241.97 | 56.50 | 249.07 | 0.8567 | -687.9 | 999999 | |
| 11.65 | -18.00 | 10.60 | -18.00 | -15.34 | 240.51 | 55.04 | 250.43 | 0.8409 | 320.4 | 999999 | |
| 24.93 | -18.00 | 23.20 | -18.00 | -16.72 | 241.03 | 55.56 | 248.96 | 0.8484 | -949.6 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.51 | -8.92 | 238.45 | 52.98 | 257.64 | 0.8097 | -312.0 | -267.7 | |
| 0.00 | 0.77 | 0.00 | 0.69 | -15.57 | 239.90 | 54.43 | 250.01 | 0.8360 | -692.0 | -625.2 | |
| 21.07 | -18.00 | 19.11 | -18.00 | -16.66 | 240.08 | 54.61 | 248.78 | 0.8399 | -1119.4 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.29 | -24.37 | 244.26 | 58.79 | 241.30 | 0.8901 | -232.0 | -246.5 | |
| 0.00 | 0.69 | 0.00 | 0.61 | -15.40 | 239.31 | 53.84 | 250.05 | 0.8302 | -637.0 | -584.0 | |
| 4.03 | -18.00 | 3.58 | -18.00 | -16.61 | 239.32 | 53.84 | 248.63 | 0.8330 | -1111.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.92 | -11.09 | 237.21 | 51.74 | 254.72 | 0.8011 | -351.0 | -308.6 | |
| 0.00 | 0.69 | 0.00 | 0.56 | -11.65 | 236.48 | 51.01 | 253.86 | 0.7947 | -473.0 | -449.8 | |
| 0.00 | 0.60 | 0.00 | 0.57 | -23.21 | 240.10 | 54.62 | 241.33 | 0.8562 | -531.0 | -475.7 | |
| 0.00 | 1.03 | 0.00 | 0.98 | -23.40 | 240.16 | 54.69 | 241.13 | 0.8573 | -330.0 | -235.6 | |
| 0.00 | 1.20 | 0.00 | 1.19 | -24.80 | 241.06 | 55.59 | 239.87 | 0.8680 | -278.0 | -249.4 | |
| 0.00 | 0.60 | 0.00 | 0.55 | -21.46 | 238.83 | 53.36 | 242.89 | 0.8411 | 408.0 | 363.9 | |
| 0.00 | 1.54 | 0.00 | 1.28 | -17.77 | 235.92 | 50.44 | 246.24 | 0.8045 | -646.0 | -529.1 | |
| 0.00 | 1.11 | 0.00 | 1.01 | -23.51 | 237.98 | 52.50 | 240.27 | 0.8400 | -486.0 | -385.8 | |
| 0.00 | 2.40 | 0.00 | 1.84 | -12.76 | 233.39 | 47.91 | 251.63 | 0.7650 | -607.0 | -554.8 | |
| 0.00 | 1.11 | 0.00 | 0.94 | -20.74 | 235.79 | 50.32 | 242.67 | 0.8123 | -607.0 | -527.3 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -12.72 | 233.01 | 47.54 | 251.56 | 0.7609 | -635.0 | -524.6 | |
| 0.00 | 1.03 | 0.00 | 0.90 | -23.37 | 236.59 | 51.12 | 239.92 | 0.8279 | -646.0 | -554.2 | |
| 0.00 | 0.69 | 0.00 | 0.60 | -23.20 | 236.35 | 50.87 | 240.03 | 0.8253 | -361.0 | -402.0 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -27.46 | 236.86 | 51.39 | 235.45 | 0.8440 | -551.0 | -479.7 | |
| 0.00 | 1.20 | 0.00 | 1.10 | -27.59 | 236.73 | 51.26 | 235.25 | 0.8435 | -318.0 | -296.2 | |
| 0.00 | 2.23 | 0.00 | 1.63 | -17.77 | 229.52 | 44.05 | 243.81 | 0.7402 | -422.0 | -314.0 | |
| 0.00 | 0.51 | 0.00 | 0.39 | -22.51 | 229.35 | 43.88 | 237.83 | 0.7588 | -603.0 | -565.3 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -27.62 | 223.81 | 38.34 | 228.62 | 0.7349 | -399.0 | -454.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
