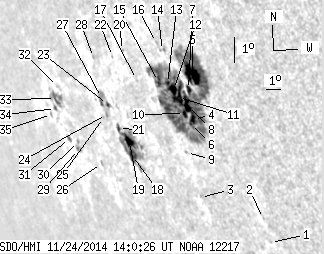

SDO HMI 2014-11-24 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.17 | 396.91 | 84.75 | 450.70 | -18.67 | 123.14 | -61.79 | 111.81 | 0.8995 | 219.1 | 55.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.79 | -23.07 | 127.28 | -57.65 | 117.60 | 0.8791 | 368.0 | 284.3 | |
| 0.00 | 0.77 | 0.00 | 0.79 | -22.29 | 127.37 | -57.55 | 116.77 | 0.8766 | 434.0 | 375.0 | |
| 0.00 | 0.51 | 0.00 | 0.58 | -21.71 | 123.80 | -61.13 | 115.22 | 0.9011 | 277.0 | 241.7 | |
| 3.77 | 298.57 | 4.03 | 319.09 | -19.19 | 125.03 | -59.90 | 112.76 | 0.8880 | 642.3 | 162.4 | |
| 19.44 | -4.00 | 20.11 | -4.00 | -17.75 | 125.79 | -59.13 | 111.34 | 0.8797 | 829.6 | 999999 | |
| 0.26 | -4.00 | 0.28 | -4.00 | -19.35 | 124.73 | -60.19 | 112.87 | 0.8904 | 346.0 | 999999 | |
| 3.00 | -4.00 | 3.16 | -4.00 | -18.24 | 125.27 | -59.65 | 111.76 | 0.8845 | 712.1 | 999999 | |
| 5.57 | -4.00 | 5.95 | -4.00 | -18.75 | 124.91 | -60.01 | 112.25 | 0.8881 | 772.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.86 | -20.27 | 123.88 | -61.04 | 113.67 | 0.8981 | 241.0 | 241.2 | |
| 2.40 | -4.00 | 2.60 | -4.00 | -19.01 | 124.56 | -60.36 | 112.45 | 0.8911 | 295.4 | 999999 | |
| 9.25 | -4.00 | 10.00 | -4.00 | -18.51 | 124.48 | -60.44 | 111.88 | 0.8908 | 434.6 | 999999 | |
| 5.05 | -4.00 | 5.49 | -4.00 | -18.26 | 124.31 | -60.61 | 111.58 | 0.8917 | 453.9 | 999999 | |
| 1.11 | -4.00 | 1.22 | -4.00 | -18.08 | 124.03 | -60.89 | 111.32 | 0.8934 | 363.9 | 999999 | |
| 0.00 | 1.88 | 0.00 | 2.03 | -17.04 | 124.31 | -60.62 | 110.23 | 0.8898 | 122.0 | 52.0 | |
| 4.03 | -4.00 | 4.48 | -4.00 | -18.03 | 123.48 | -61.45 | 111.15 | 0.8974 | 122.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.21 | -16.80 | 124.06 | -60.86 | 109.91 | 0.8913 | -224.0 | -243.7 | |
| 0.00 | 0.86 | 0.00 | 1.00 | -18.01 | 122.01 | -62.92 | 110.82 | 0.9077 | -224.0 | -237.7 | |
| 6.77 | 51.73 | 8.68 | 65.96 | -20.47 | 119.94 | -64.99 | 113.06 | 0.9244 | -341.9 | -252.5 | |
| 6.08 | -18.00 | 7.75 | -18.00 | -20.02 | 120.07 | -64.85 | 112.61 | 0.9230 | -555.4 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.71 | -17.12 | 121.60 | -63.32 | 109.78 | 0.9093 | -496.0 | -451.3 | |
| 1.28 | -18.00 | 1.66 | -18.00 | -19.62 | 119.55 | -65.37 | 112.09 | 0.9257 | -94.5 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.73 | -17.33 | 120.76 | -64.16 | 109.85 | 0.9152 | 108.0 | 68.4 | |
| 1.37 | 3.43 | 1.78 | 4.46 | -18.87 | 119.30 | -65.63 | 111.24 | 0.9264 | -404.0 | -205.5 | |
| 0.00 | 1.63 | 0.00 | 2.15 | -19.20 | 118.97 | -65.96 | 111.53 | 0.9288 | 54.0 | 63.5 | |
| 0.00 | 0.60 | 0.00 | 0.80 | -19.30 | 118.65 | -66.28 | 111.58 | 0.9308 | -366.0 | -307.3 | |
| 0.00 | 1.46 | 0.00 | 2.10 | -20.81 | 117.17 | -67.75 | 112.91 | 0.9408 | -194.0 | -206.8 | |
| 0.00 | 7.71 | 0.00 | 10.15 | -18.66 | 119.00 | -65.93 | 110.96 | 0.9280 | -10.0 | 66.6 | |
| 0.00 | 0.86 | 0.00 | 1.10 | -17.40 | 119.31 | -65.61 | 109.67 | 0.9246 | 148.0 | 217.2 | |
| 0.00 | 2.83 | 0.00 | 4.38 | -20.41 | 115.54 | -69.38 | 112.22 | 0.9490 | -462.0 | -437.0 | |
| 0.00 | 1.46 | 0.00 | 2.23 | -20.15 | 115.80 | -69.12 | 111.99 | 0.9475 | -551.0 | -503.7 | |
| 0.77 | 2.31 | 1.22 | 3.67 | -20.07 | 115.05 | -69.87 | 111.80 | 0.9512 | -353.6 | -271.9 | |
| 0.00 | 0.26 | 0.00 | 0.39 | -18.42 | 115.54 | -69.38 | 110.15 | 0.9473 | -408.0 | -415.7 | |
| 3.25 | 12.68 | 5.11 | 19.84 | -18.81 | 115.00 | -69.93 | 110.48 | 0.9505 | -507.6 | -423.7 | |
| 0.77 | 2.23 | 1.23 | 3.56 | -19.13 | 114.68 | -70.24 | 110.77 | 0.9523 | -137.6 | -111.8 | |
| 0.00 | 1.28 | 0.00 | 2.12 | -19.34 | 114.09 | -70.83 | 110.90 | 0.9554 | 100.0 | 119.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
