SDO HMI 2014-11-24 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 203.33 | 1241.34 | 110.99 | 677.82 | -13.08 | 164.47 | -19.91 | 127.51 | 0.4197 | 289.9 | 153.7 | |
|
previous
or next observation for the same group /

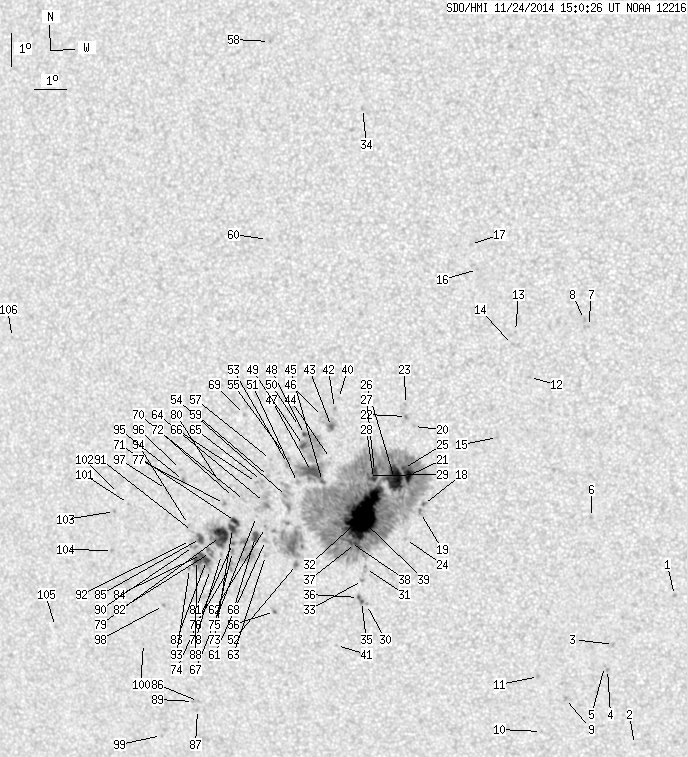

back to the solar disc SDO HMI 2014-11-24 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.95 | -15.70 | 174.91 | -9.46 | 152.09 | 0.3397 | 999.0 | 714.5 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -20.39 | 173.36 | -11.01 | 154.52 | 0.4181 | 618.0 | 473.6 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -17.23 | 172.91 | -11.46 | 149.64 | 0.3773 | 798.0 | 540.1 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -18.02 | 172.67 | -11.71 | 150.21 | 0.3901 | 837.0 | 738.1 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -17.93 | 172.58 | -11.80 | 149.90 | 0.3895 | 806.0 | 692.4 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -13.31 | 172.45 | -11.93 | 142.12 | 0.3290 | 767.0 | 619.9 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -7.52 | 172.59 | -11.79 | 128.29 | 0.2592 | 964.0 | 802.6 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -7.31 | 172.47 | -11.90 | 127.38 | 0.2586 | 755.0 | 584.5 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -18.94 | 171.25 | -13.12 | 148.62 | 0.4141 | 852.0 | 690.4 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -20.00 | 170.39 | -13.99 | 148.39 | 0.4352 | 648.0 | 451.4 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -18.25 | 170.44 | -13.93 | 146.13 | 0.4120 | 690.0 | 528.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -9.06 | 170.73 | -13.65 | 128.63 | 0.2996 | 816.0 | 603.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -7.68 | 170.35 | -14.03 | 124.07 | 0.2913 | 717.0 | 529.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -8.08 | 170.24 | -14.13 | 124.98 | 0.2964 | 807.0 | 635.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -10.88 | 169.65 | -14.72 | 131.03 | 0.3323 | 862.0 | 689.9 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -5.84 | 169.24 | -15.14 | 116.65 | 0.2920 | 937.0 | 774.5 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -5.09 | 169.04 | -15.33 | 114.04 | 0.2897 | 745.0 | 554.9 | |
| 0.43 | 2.14 | 0.23 | 1.15 | -12.94 | 167.19 | -17.18 | 131.17 | 0.3841 | 946.6 | 734.6 | |
| 0.00 | 3.00 | 0.00 | 1.61 | -13.19 | 167.08 | -17.29 | 131.48 | 0.3880 | 756.0 | 694.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -10.57 | 167.03 | -17.34 | 125.82 | 0.3629 | 891.0 | 709.4 | |
| 7.54 | 884.29 | 4.03 | 479.42 | -12.06 | 166.78 | -17.59 | 128.69 | 0.3804 | 1395.0 | 324.4 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -10.27 | 166.83 | -17.54 | 124.82 | 0.3629 | 1002.0 | 809.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -9.91 | 166.82 | -17.55 | 123.96 | 0.3598 | 930.0 | 702.9 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -14.02 | 166.54 | -17.84 | 132.23 | 0.4032 | -108.0 | -87.6 | |
| 1.80 | -21.00 | 0.96 | -21.00 | -11.85 | 166.64 | -17.74 | 128.02 | 0.3802 | 1274.8 | 999999 | |
| 28.69 | -21.00 | 15.40 | -21.00 | -12.16 | 166.33 | -18.05 | 128.20 | 0.3870 | 1193.7 | 999999 | |
| 4.71 | -21.00 | 2.53 | -21.00 | -11.95 | 165.70 | -18.67 | 126.85 | 0.3930 | 1057.9 | 999999 | |
| 3.77 | -21.00 | 2.03 | -21.00 | -12.16 | 165.66 | -18.72 | 127.22 | 0.3956 | 1053.2 | 999999 | |
| 1.11 | -21.00 | 0.60 | -21.00 | -12.07 | 165.50 | -18.87 | 126.82 | 0.3968 | 862.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -16.04 | 165.09 | -19.29 | 133.70 | 0.4409 | -866.0 | -642.5 | |
| 0.00 | 3.17 | 0.00 | 1.74 | -14.93 | 165.17 | -19.21 | 131.85 | 0.4286 | 714.0 | 589.0 | |
| 89.49 | -21.00 | 48.60 | -21.00 | -13.30 | 165.25 | -19.13 | 128.91 | 0.4116 | 1335.5 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -15.30 | 165.03 | -19.34 | 132.33 | 0.4340 | 641.0 | 500.4 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -1.08 | 165.76 | -18.61 | 98.41 | 0.3240 | 805.0 | 615.6 | |
| 0.69 | 3.85 | 0.38 | 2.13 | -15.95 | 164.93 | -19.44 | 133.33 | 0.4418 | -891.5 | -664.2 | |
| 0.60 | -35.00 | 0.33 | -35.00 | -15.83 | 164.85 | -19.52 | 132.99 | 0.4415 | -734.3 | 999999 | |
| 1.11 | -21.00 | 0.61 | -21.00 | -14.16 | 164.91 | -19.46 | 130.08 | 0.4240 | 796.2 | 999999 | |
| 1.71 | -21.00 | 0.94 | -21.00 | -14.13 | 164.75 | -19.62 | 129.80 | 0.4257 | 670.2 | 999999 | |
| 2.23 | -21.00 | 1.21 | -21.00 | -13.06 | 164.78 | -19.59 | 127.79 | 0.4151 | 1023.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -9.74 | 164.71 | -19.67 | 120.70 | 0.3875 | -930.0 | -617.1 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -17.33 | 163.96 | -20.41 | 134.27 | 0.4669 | -819.0 | -664.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -10.05 | 164.56 | -19.81 | 121.19 | 0.3919 | -920.0 | -789.0 | |
| 1.20 | 9.25 | 0.65 | 4.99 | -10.59 | 164.43 | -19.95 | 122.23 | 0.3981 | 223.6 | -119.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -11.57 | 164.32 | -20.05 | 124.16 | 0.4077 | 501.0 | 376.1 | |
| 0.86 | -21.00 | 0.47 | -21.00 | -12.27 | 164.01 | -20.36 | 125.19 | 0.4179 | 822.0 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -10.29 | 164.16 | -20.22 | 121.24 | 0.3994 | -764.0 | -630.9 | |
| 12.93 | -21.00 | 7.05 | -21.00 | -11.97 | 163.68 | -20.70 | 124.16 | 0.4196 | -294.0 | 999999 | |
| 0.77 | -21.00 | 0.42 | -21.00 | -10.84 | 163.54 | -20.83 | 121.67 | 0.4122 | -880.4 | 999999 | |
| 2.06 | -21.00 | 1.12 | -21.00 | -11.18 | 163.48 | -20.89 | 122.31 | 0.4157 | -981.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -10.60 | 163.40 | -20.98 | 120.99 | 0.4123 | -579.0 | -455.9 | |
| 0.00 | 2.40 | 0.00 | 1.31 | -12.31 | 163.20 | -21.18 | 124.25 | 0.4288 | 113.0 | -35.0 | |
| 0.60 | 75.45 | 0.33 | 41.80 | -14.83 | 162.92 | -21.45 | 128.64 | 0.4546 | -827.9 | -17.9 | |
| 0.00 | 3.60 | 0.00 | 1.97 | -11.73 | 162.92 | -21.45 | 122.77 | 0.4277 | -218.0 | -361.2 | |
| 0.00 | 21.92 | 0.00 | 12.06 | -12.74 | 162.80 | -21.57 | 124.61 | 0.4377 | -95.0 | -37.1 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -11.43 | 162.85 | -21.53 | 122.07 | 0.4262 | -836.0 | -592.7 | |
| 0.34 | 1.97 | 0.19 | 1.11 | -16.29 | 162.03 | -22.35 | 130.07 | 0.4789 | -821.5 | -681.6 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -11.62 | 162.38 | -22.00 | 121.91 | 0.4340 | -858.0 | -742.4 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 0.88 | 162.83 | -21.54 | 91.96 | 0.3689 | 920.0 | 837.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -12.13 | 162.27 | -22.11 | 122.81 | 0.4396 | -713.0 | -670.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -5.00 | 162.68 | -21.70 | 107.31 | 0.3874 | 805.0 | 730.5 | |
| 0.00 | 2.57 | 0.00 | 1.43 | -14.10 | 161.98 | -22.40 | 126.18 | 0.4598 | -729.0 | -628.0 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -13.70 | 162.02 | -22.36 | 125.50 | 0.4558 | -849.0 | -776.8 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -14.56 | 161.93 | -22.45 | 126.95 | 0.4644 | -711.0 | -525.5 | |
| 0.00 | 19.78 | 0.00 | 10.95 | -12.93 | 162.06 | -22.31 | 124.11 | 0.4488 | -198.0 | -247.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -12.26 | 162.03 | -22.35 | 122.78 | 0.4438 | -833.0 | -740.4 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -12.32 | 161.86 | -22.52 | 122.71 | 0.4466 | -917.0 | -755.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -13.36 | 161.75 | -22.62 | 124.57 | 0.4564 | -887.0 | -651.0 | |
| 3.85 | 5.99 | 2.15 | 3.35 | -13.98 | 161.66 | -22.72 | 125.59 | 0.4628 | -997.5 | -825.2 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -10.26 | 161.64 | -22.74 | 118.35 | 0.4340 | -616.0 | -578.1 | |
| 0.00 | 2.40 | 0.00 | 1.33 | -12.88 | 161.41 | -22.97 | 123.27 | 0.4569 | -673.0 | -607.5 | |
| 3.43 | 54.47 | 1.92 | 30.63 | -13.52 | 161.04 | -23.33 | 124.07 | 0.4668 | -1142.0 | -638.6 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -12.79 | 161.05 | -23.32 | 122.72 | 0.4608 | -807.0 | -662.4 | |
| 4.37 | -71.00 | 2.45 | -71.00 | -13.74 | 160.92 | -23.45 | 124.33 | 0.4701 | -1070.8 | 999999 | |
| 0.69 | 26.12 | 0.38 | 14.65 | -14.20 | 160.87 | -23.50 | 125.11 | 0.4746 | -920.0 | -486.3 | |
| 0.00 | 2.40 | 0.00 | 1.35 | -14.45 | 160.84 | -23.53 | 125.52 | 0.4770 | -750.0 | -621.2 | |
| 0.00 | 3.85 | 0.00 | 2.18 | -14.91 | 160.72 | -23.65 | 126.20 | 0.4824 | -544.0 | -463.4 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -12.98 | 160.74 | -23.64 | 122.73 | 0.4664 | -1015.0 | -898.9 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -14.54 | 160.46 | -23.91 | 125.27 | 0.4825 | -557.0 | -431.6 | |
| 18.41 | -71.00 | 10.37 | -71.00 | -13.99 | 160.49 | -23.88 | 124.32 | 0.4776 | -1017.8 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -12.27 | 160.61 | -23.77 | 121.28 | 0.4627 | -510.0 | -435.7 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -15.01 | 160.04 | -24.34 | 125.63 | 0.4917 | -360.0 | -373.8 | |
| 0.00 | 5.74 | 0.00 | 3.25 | -14.49 | 160.10 | -24.27 | 124.78 | 0.4866 | -949.0 | -790.4 | |
| 3.34 | 20.21 | 1.90 | 11.49 | -14.74 | 159.94 | -24.44 | 125.04 | 0.4907 | -913.7 | -579.8 | |
| 1.63 | -83.00 | 0.92 | -83.00 | -14.55 | 159.79 | -24.58 | 124.57 | 0.4910 | -966.8 | 999999 | |
| 3.34 | 6.68 | 1.89 | 3.78 | -14.06 | 159.82 | -24.56 | 123.73 | 0.4868 | -898.2 | -644.3 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -19.15 | 159.03 | -25.34 | 131.16 | 0.5392 | -847.0 | -619.0 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -19.41 | 158.95 | -25.42 | 131.45 | 0.5423 | -831.0 | -677.3 | |
| 1.63 | -83.00 | 0.93 | -83.00 | -14.74 | 159.60 | -24.77 | 124.70 | 0.4949 | -804.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -19.15 | 158.86 | -25.52 | 130.98 | 0.5412 | -738.0 | -639.3 | |
| 0.00 | 2.74 | 0.00 | 1.56 | -14.31 | 159.55 | -24.82 | 123.90 | 0.4921 | -674.0 | -547.0 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -13.85 | 159.57 | -24.80 | 123.11 | 0.4882 | -569.0 | -409.8 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -14.12 | 159.47 | -24.90 | 123.50 | 0.4917 | -38.0 | -88.0 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -14.99 | 159.33 | -25.04 | 124.85 | 0.5003 | -392.0 | -372.9 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -13.63 | 159.46 | -24.91 | 122.62 | 0.4880 | -677.0 | -556.0 | |
| 0.00 | 2.14 | 0.00 | 1.21 | -12.29 | 159.44 | -24.93 | 120.15 | 0.4783 | -997.0 | -826.6 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -11.95 | 159.38 | -25.00 | 119.46 | 0.4768 | -713.0 | -580.1 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -12.57 | 158.84 | -25.53 | 120.10 | 0.4883 | -700.0 | -607.2 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -16.15 | 158.29 | -26.09 | 125.73 | 0.5224 | -832.0 | -698.8 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -20.25 | 157.54 | -26.84 | 131.22 | 0.5653 | -706.0 | -603.0 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -17.35 | 157.41 | -26.96 | 126.78 | 0.5424 | -411.0 | -417.3 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -13.01 | 157.50 | -26.87 | 119.69 | 0.5090 | -695.0 | -639.0 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -12.71 | 157.20 | -27.18 | 118.90 | 0.5110 | -547.0 | -435.0 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -13.27 | 156.99 | -27.38 | 119.69 | 0.5173 | -753.0 | -599.2 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -14.47 | 156.77 | -27.60 | 121.54 | 0.5286 | -814.0 | -671.6 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -16.86 | 154.39 | -29.98 | 123.34 | 0.5747 | -573.0 | -506.7 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -8.04 | 154.03 | -30.34 | 108.29 | 0.5289 | -530.0 | -505.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
