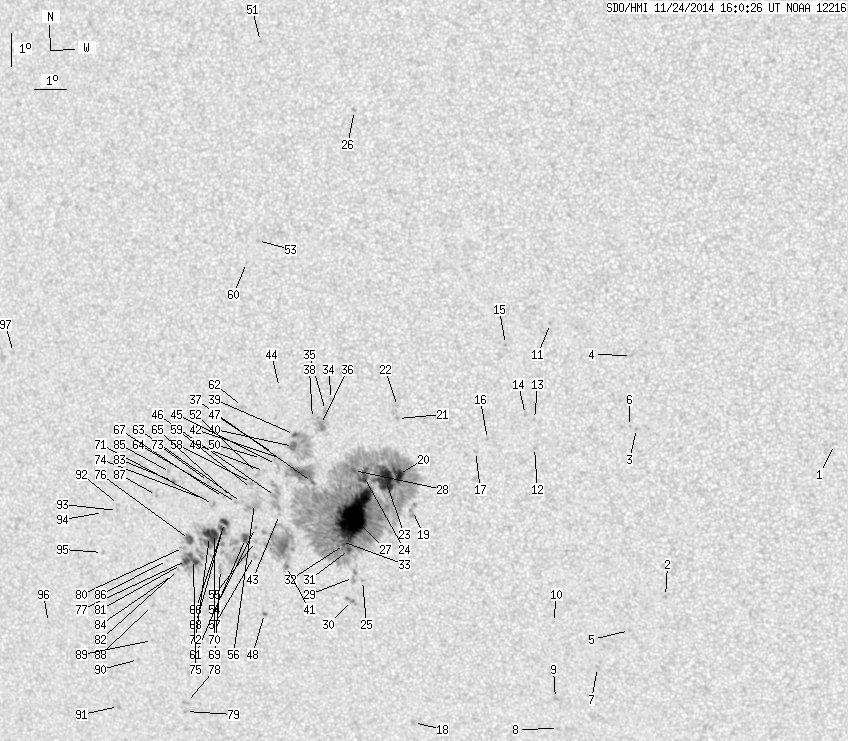

SDO HMI 2014-11-24 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 190.53 | 1307.47 | 103.66 | 711.76 | -13.10 | 164.47 | -19.35 | 128.34 | 0.4129 | 357.7 | 135.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.61 | -11.03 | 180.22 | -3.60 | 164.38 | 0.2300 | 665.0 | 505.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.70 | 174.92 | -8.91 | 153.50 | 0.3355 | 961.0 | 736.1 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -10.56 | 174.23 | -9.60 | 142.31 | 0.2693 | 915.0 | 744.0 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -8.35 | 174.14 | -9.68 | 136.34 | 0.2422 | 875.0 | 637.0 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -16.76 | 173.74 | -10.08 | 152.08 | 0.3597 | 810.0 | 696.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -10.50 | 174.01 | -9.81 | 141.56 | 0.2707 | 702.0 | 612.4 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -17.92 | 172.66 | -11.16 | 151.23 | 0.3844 | 888.0 | 660.1 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -19.86 | 171.27 | -12.55 | 150.89 | 0.4219 | 438.0 | 345.3 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -18.91 | 171.25 | -12.57 | 149.64 | 0.4092 | 775.0 | 672.7 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -16.52 | 171.36 | -12.46 | 146.47 | 0.3762 | 821.0 | 590.1 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -7.41 | 171.70 | -12.12 | 127.16 | 0.2625 | 907.0 | 736.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -11.15 | 171.07 | -12.75 | 135.69 | 0.3114 | 685.0 | 615.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -10.30 | 171.11 | -12.71 | 133.76 | 0.3012 | 922.0 | 637.7 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -10.15 | 170.84 | -12.99 | 132.80 | 0.3028 | 914.0 | 694.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -8.04 | 170.30 | -13.52 | 126.08 | 0.2877 | 757.0 | 600.0 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -10.91 | 169.62 | -14.20 | 132.11 | 0.3261 | 840.0 | 744.3 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -11.28 | 169.23 | -14.59 | 132.18 | 0.3349 | 794.0 | 630.9 | |
| 0.00 | 2.14 | 0.00 | 1.19 | -19.70 | 166.56 | -17.26 | 142.49 | 0.4606 | 800.0 | 645.0 | |
| 0.00 | 7.45 | 0.00 | 3.99 | -13.09 | 167.14 | -16.68 | 132.29 | 0.3797 | 612.0 | 747.5 | |
| 10.28 | 873.43 | 5.48 | 471.88 | -12.00 | 166.77 | -17.05 | 129.41 | 0.3729 | 1402.6 | 350.4 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -10.30 | 166.84 | -16.98 | 125.75 | 0.3556 | 1031.0 | 871.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -9.93 | 166.86 | -16.96 | 124.92 | 0.3520 | 881.0 | 626.1 | |
| 27.57 | -20.00 | 14.75 | -20.00 | -12.15 | 166.35 | -17.48 | 129.07 | 0.3798 | 1209.5 | 999999 | |
| 9.33 | -20.00 | 5.01 | -20.00 | -12.04 | 165.66 | -18.17 | 127.77 | 0.3874 | 1037.3 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -15.26 | 165.36 | -18.46 | 133.55 | 0.4234 | 745.0 | 633.0 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -1.11 | 165.80 | -18.02 | 98.77 | 0.3144 | 872.0 | 707.5 | |
| 91.20 | -20.00 | 49.36 | -20.00 | -13.29 | 165.24 | -18.58 | 129.69 | 0.4048 | 1379.5 | 999999 | |
| 2.23 | -20.00 | 1.20 | -20.00 | -11.89 | 165.35 | -18.47 | 127.00 | 0.3899 | 598.2 | 999999 | |
| 0.00 | 5.05 | 0.00 | 2.76 | -15.17 | 165.08 | -18.75 | 132.97 | 0.4257 | 740.0 | 637.3 | |
| 0.00 | 4.88 | 0.00 | 2.68 | -15.89 | 164.94 | -18.88 | 134.02 | 0.4347 | -721.0 | -743.8 | |
| 2.06 | -20.00 | 1.12 | -20.00 | -14.31 | 165.03 | -18.80 | 131.32 | 0.4175 | 807.8 | 999999 | |
| 1.28 | -20.00 | 0.70 | -20.00 | -14.16 | 164.88 | -18.94 | 130.81 | 0.4177 | 801.1 | 999999 | |
| 0.26 | -20.00 | 0.14 | -20.00 | -14.06 | 164.79 | -19.03 | 130.51 | 0.4179 | 748.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -9.74 | 164.79 | -19.03 | 121.50 | 0.3786 | -620.0 | -578.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -10.07 | 164.58 | -19.24 | 121.98 | 0.3842 | -845.0 | -634.5 | |
| 0.00 | 15.24 | 0.00 | 8.19 | -10.50 | 164.39 | -19.43 | 122.68 | 0.3903 | -218.0 | -205.7 | |
| 0.69 | -20.00 | 0.37 | -20.00 | -12.27 | 164.01 | -19.82 | 125.90 | 0.4107 | 727.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -10.32 | 164.15 | -19.67 | 121.97 | 0.3922 | -792.0 | -703.7 | |
| 1.28 | 40.16 | 0.70 | 21.74 | -10.81 | 163.54 | -20.29 | 122.27 | 0.4045 | -847.6 | -441.0 | |
| 3.00 | -39.00 | 1.62 | -39.00 | -11.18 | 163.48 | -20.34 | 122.97 | 0.4083 | -972.9 | 999999 | |
| 0.69 | 74.67 | 0.38 | 41.22 | -14.85 | 162.92 | -20.90 | 129.40 | 0.4481 | -795.2 | 4.9 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -11.54 | 163.03 | -20.79 | 123.18 | 0.4173 | -678.0 | -596.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -13.25 | 162.85 | -20.97 | 126.35 | 0.4344 | 576.0 | 452.1 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -9.39 | 163.15 | -20.67 | 118.71 | 0.3988 | -742.0 | -578.9 | |
| 0.00 | 3.85 | 0.00 | 2.10 | -11.73 | 162.89 | -20.94 | 123.38 | 0.4208 | -342.0 | -292.1 | |
| 0.00 | 17.81 | 0.00 | 9.76 | -12.70 | 162.77 | -21.05 | 125.18 | 0.4306 | -68.0 | -99.9 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -11.39 | 162.82 | -21.01 | 122.61 | 0.4190 | -901.0 | -627.9 | |
| 0.51 | 1.71 | 0.29 | 0.96 | -16.32 | 162.04 | -21.79 | 130.80 | 0.4725 | -836.3 | -675.3 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -11.95 | 162.48 | -21.34 | 123.33 | 0.4280 | -668.0 | -401.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -11.55 | 162.41 | -21.41 | 122.45 | 0.4256 | -788.0 | -702.3 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 0.91 | 162.85 | -20.97 | 91.93 | 0.3596 | 890.0 | 716.8 | |
| 0.00 | 4.02 | 0.00 | 2.21 | -12.01 | 162.25 | -21.58 | 123.17 | 0.4316 | -835.0 | -642.6 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -5.00 | 162.67 | -21.15 | 107.71 | 0.3790 | 829.0 | 779.6 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -13.66 | 162.03 | -21.79 | 126.10 | 0.4484 | -1008.0 | -825.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -14.09 | 161.98 | -21.84 | 126.84 | 0.4527 | -724.0 | -612.8 | |
| 0.00 | 23.63 | 0.00 | 13.03 | -12.93 | 162.07 | -21.76 | 124.75 | 0.4416 | -209.0 | -233.9 | |
| 0.00 | 2.31 | 0.00 | 1.29 | -14.52 | 161.91 | -21.92 | 127.53 | 0.4575 | -825.0 | -567.6 | |
| 0.00 | 2.65 | 0.00 | 1.46 | -12.29 | 162.03 | -21.80 | 123.46 | 0.4367 | -863.0 | -726.6 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -12.47 | 162.01 | -21.81 | 123.80 | 0.4385 | -731.0 | -559.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -5.65 | 162.29 | -21.53 | 109.06 | 0.3881 | 676.0 | 511.6 | |
| 3.77 | 98.99 | 2.09 | 55.37 | -14.00 | 161.66 | -22.16 | 126.29 | 0.4559 | -977.2 | -557.4 | |
| 0.00 | 3.08 | 0.00 | 1.68 | -9.98 | 161.92 | -21.90 | 118.63 | 0.4204 | -790.0 | -660.5 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -12.90 | 161.64 | -22.18 | 124.20 | 0.4468 | -639.0 | -514.8 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -12.90 | 161.48 | -22.34 | 124.02 | 0.4490 | -784.0 | -604.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -12.75 | 161.33 | -22.49 | 123.56 | 0.4497 | -877.0 | -731.1 | |
| 3.51 | -61.00 | 1.96 | -61.00 | -13.52 | 161.02 | -22.80 | 124.65 | 0.4600 | -1127.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -12.75 | 161.07 | -22.76 | 123.27 | 0.4532 | -882.0 | -716.2 | |
| 3.85 | -61.00 | 2.15 | -61.00 | -13.73 | 160.93 | -22.89 | 124.95 | 0.4629 | -1078.2 | 999999 | |
| 0.00 | 3.51 | 0.00 | 1.97 | -14.97 | 160.73 | -23.09 | 126.92 | 0.4759 | -598.0 | -500.7 | |
| 4.97 | -61.00 | 2.78 | -61.00 | -13.86 | 160.65 | -23.17 | 124.87 | 0.4675 | -1171.5 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.48 | -12.97 | 160.71 | -23.11 | 123.29 | 0.4595 | -998.0 | -778.4 | |
| 8.73 | -61.00 | 4.90 | -61.00 | -13.95 | 160.48 | -23.34 | 124.84 | 0.4705 | -1033.9 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -12.27 | 160.62 | -23.21 | 121.86 | 0.4552 | -490.0 | -504.1 | |
| 0.00 | 2.23 | 0.00 | 1.24 | -12.79 | 160.37 | -23.45 | 122.58 | 0.4626 | -556.0 | -489.3 | |
| 6.08 | 35.71 | 3.44 | 20.20 | -14.67 | 159.86 | -23.96 | 125.44 | 0.4842 | -934.1 | -511.2 | |
| 4.45 | 6.85 | 2.51 | 3.86 | -14.05 | 159.80 | -24.02 | 124.28 | 0.4799 | -880.6 | -653.2 | |
| 3.94 | -75.00 | 2.23 | -75.00 | -14.70 | 159.62 | -24.20 | 125.24 | 0.4874 | -831.3 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.50 | -19.15 | 159.00 | -24.82 | 131.71 | 0.5334 | -783.0 | -635.5 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -19.43 | 158.92 | -24.91 | 132.04 | 0.5369 | -812.0 | -684.9 | |
| 0.00 | 2.40 | 0.00 | 1.36 | -14.30 | 159.57 | -24.25 | 124.48 | 0.4848 | -616.0 | -548.3 | |
| 0.34 | -75.00 | 0.19 | -75.00 | -14.83 | 159.44 | -24.38 | 125.26 | 0.4907 | -594.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -14.99 | 159.32 | -24.50 | 125.40 | 0.4935 | -267.0 | -330.8 | |
| 0.51 | 2.65 | 0.29 | 1.49 | -12.28 | 159.46 | -24.37 | 120.69 | 0.4707 | -951.3 | -758.2 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -15.14 | 159.13 | -24.69 | 125.47 | 0.4971 | -543.0 | -367.2 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -12.01 | 159.38 | -24.44 | 120.10 | 0.4697 | -213.0 | -390.3 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -14.71 | 158.98 | -24.84 | 124.58 | 0.4955 | -519.0 | -419.7 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -12.72 | 158.84 | -24.98 | 120.90 | 0.4820 | -745.0 | -582.7 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -16.11 | 158.29 | -25.53 | 126.22 | 0.5154 | -854.0 | -667.6 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -17.21 | 158.13 | -25.69 | 127.82 | 0.5263 | -650.0 | -569.9 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -17.81 | 157.55 | -26.27 | 128.17 | 0.5381 | -677.0 | -452.1 | |
| 0.00 | 1.28 | 0.00 | 0.77 | -19.30 | 156.60 | -27.23 | 129.47 | 0.5615 | -746.0 | -686.1 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -13.01 | 157.53 | -26.29 | 120.19 | 0.5014 | -757.0 | -606.5 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -13.19 | 157.48 | -26.35 | 120.47 | 0.5034 | -767.0 | -632.8 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -13.26 | 156.99 | -26.83 | 120.16 | 0.5102 | -765.0 | -572.4 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -14.49 | 156.80 | -27.02 | 122.10 | 0.5214 | -820.0 | -638.1 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -16.69 | 154.58 | -29.24 | 123.70 | 0.5646 | -510.0 | -411.6 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -8.44 | 154.41 | -29.41 | 109.56 | 0.5176 | -795.0 | -634.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
