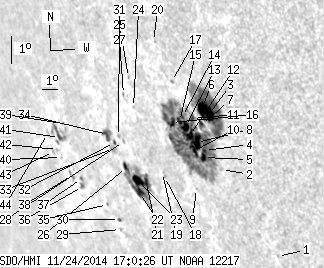

SDO HMI 2014-11-24 17:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.18 | 430.77 | 91.22 | 467.78 | -18.73 | 122.85 | -60.42 | 112.17 | 0.8896 | 210.6 | 50.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 17:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.42 | -22.34 | 127.39 | -55.88 | 117.32 | 0.8638 | 426.0 | 400.2 | |
| 0.00 | 1.37 | 0.00 | 1.37 | -19.60 | 125.76 | -57.51 | 113.80 | 0.8705 | 282.0 | 227.1 | |
| 10.10 | 311.93 | 9.92 | 317.59 | -17.86 | 125.93 | -57.34 | 111.89 | 0.8656 | 993.0 | 184.6 | |
| 1.54 | -3.00 | 1.57 | -3.00 | -19.02 | 125.08 | -58.20 | 112.97 | 0.8747 | 745.6 | 999999 | |
| 3.60 | -3.00 | 3.67 | -3.00 | -19.25 | 124.89 | -58.38 | 113.18 | 0.8766 | 624.9 | 999999 | |
| 8.39 | -3.00 | 8.31 | -3.00 | -17.68 | 125.61 | -57.66 | 111.61 | 0.8678 | 733.3 | 999999 | |
| 2.23 | -3.00 | 2.23 | -3.00 | -18.19 | 125.35 | -57.92 | 112.12 | 0.8709 | 663.7 | 999999 | |
| 8.39 | -3.00 | 8.57 | -3.00 | -18.78 | 124.73 | -58.54 | 112.62 | 0.8769 | 769.6 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.45 | -20.26 | 123.85 | -59.42 | 114.04 | 0.8864 | 263.0 | 257.8 | |
| 2.31 | -3.00 | 2.38 | -3.00 | -19.04 | 124.46 | -58.81 | 112.84 | 0.8795 | 389.5 | 999999 | |
| 2.05 | -3.00 | 2.08 | -3.00 | -18.02 | 124.91 | -58.36 | 111.81 | 0.8741 | 608.5 | 999999 | |
| 5.91 | -3.00 | 6.08 | -3.00 | -18.56 | 124.43 | -58.84 | 112.31 | 0.8788 | 498.5 | 999999 | |
| 5.31 | -3.00 | 5.47 | -3.00 | -18.28 | 124.34 | -58.93 | 111.98 | 0.8790 | 562.7 | 999999 | |
| 1.20 | -3.00 | 1.23 | -3.00 | -17.97 | 124.33 | -58.94 | 111.62 | 0.8785 | 484.9 | 999999 | |
| 2.14 | -3.00 | 2.22 | -3.00 | -18.13 | 124.06 | -59.21 | 111.74 | 0.8809 | 370.6 | 999999 | |
| 4.97 | -3.00 | 5.24 | -3.00 | -18.18 | 123.54 | -59.73 | 111.67 | 0.8850 | 86.4 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.23 | -16.88 | 124.24 | -59.03 | 110.38 | 0.8773 | 389.0 | 393.9 | |
| 0.00 | 0.94 | 0.00 | 1.06 | -19.92 | 122.01 | -61.26 | 113.25 | 0.8991 | 151.0 | 100.4 | |
| 0.00 | 0.68 | 0.00 | 0.77 | -19.80 | 121.96 | -61.31 | 113.10 | 0.8992 | 41.0 | 78.2 | |
| 0.00 | 0.34 | 0.00 | 0.35 | -15.65 | 123.76 | -59.51 | 108.90 | 0.8791 | 322.0 | 361.8 | |
| 2.83 | 59.51 | 3.33 | 71.41 | -20.15 | 120.63 | -62.64 | 113.19 | 0.9089 | -756.7 | -290.4 | |
| 4.54 | -21.00 | 5.49 | -21.00 | -20.49 | 119.89 | -63.38 | 113.40 | 0.9143 | -308.9 | 999999 | |
| 7.28 | -21.00 | 8.73 | -21.00 | -20.10 | 120.11 | -63.16 | 113.03 | 0.9123 | -635.8 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.29 | -17.77 | 121.33 | -61.94 | 110.75 | 0.9005 | -591.0 | -535.0 | |
| 0.00 | 1.20 | 0.00 | 1.33 | -16.82 | 121.56 | -61.72 | 109.76 | 0.8975 | 185.0 | 154.4 | |
| 2.91 | -21.00 | 3.55 | -21.00 | -19.71 | 119.55 | -63.72 | 112.49 | 0.9154 | -187.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.27 | -17.37 | 120.90 | -62.37 | 110.23 | 0.9030 | 138.0 | 59.2 | |
| 0.00 | 1.28 | 0.00 | 1.53 | -18.87 | 119.93 | -63.34 | 111.67 | 0.9117 | -549.0 | -520.9 | |
| 0.00 | 1.11 | 0.00 | 1.49 | -21.74 | 117.44 | -65.83 | 114.24 | 0.9310 | -455.0 | -380.6 | |
| 0.60 | 1.63 | 0.80 | 2.16 | -21.42 | 117.65 | -65.62 | 113.94 | 0.9294 | -471.1 | -453.5 | |
| 0.00 | 1.54 | 0.00 | 1.85 | -18.72 | 119.68 | -63.59 | 111.46 | 0.9132 | -549.0 | -503.1 | |
| 0.77 | 1.54 | 0.94 | 1.89 | -18.92 | 119.25 | -64.02 | 111.59 | 0.9163 | -316.6 | -336.3 | |
| 0.00 | 5.74 | 0.00 | 7.09 | -19.12 | 119.04 | -64.23 | 111.76 | 0.9179 | 253.0 | 77.4 | |
| 4.11 | 8.73 | 5.09 | 10.81 | -18.68 | 118.92 | -64.35 | 111.27 | 0.9181 | 162.9 | -10.3 | |
| 0.00 | 1.03 | 0.00 | 1.39 | -20.95 | 117.11 | -66.16 | 113.35 | 0.9320 | -345.0 | -320.0 | |
| 0.94 | 1.88 | 1.35 | 2.71 | -20.42 | 115.55 | -67.72 | 112.51 | 0.9402 | -524.0 | -482.9 | |
| 0.60 | 1.80 | 0.85 | 2.56 | -20.16 | 115.70 | -67.57 | 112.27 | 0.9391 | -447.9 | -406.3 | |
| 0.00 | 3.17 | 0.00 | 4.66 | -20.09 | 114.92 | -68.36 | 112.06 | 0.9433 | -340.0 | -258.2 | |
| 0.00 | 1.20 | 0.00 | 1.69 | -18.43 | 115.61 | -67.66 | 110.42 | 0.9379 | -450.0 | -415.9 | |
| 0.00 | 0.26 | 0.00 | 0.38 | -19.53 | 114.57 | -68.70 | 111.42 | 0.9447 | -269.0 | -266.7 | |
| 1.46 | 15.58 | 2.12 | 22.62 | -18.89 | 114.97 | -68.30 | 110.80 | 0.9419 | -524.9 | -408.8 | |
| 0.00 | 1.20 | 0.00 | 1.80 | -19.28 | 114.45 | -68.83 | 111.14 | 0.9451 | -214.0 | -174.7 | |
| 0.00 | 1.71 | 0.00 | 2.62 | -19.36 | 114.02 | -69.25 | 111.15 | 0.9474 | -69.0 | 39.0 | |
| 0.00 | 1.97 | 0.00 | 2.99 | -18.79 | 114.01 | -69.26 | 110.55 | 0.9470 | -164.0 | -134.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
