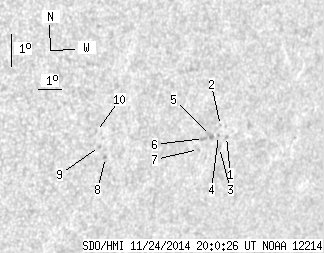

SDO HMI 2014-11-24 20:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.16 | 0.00 | 11.10 | -13.01 | 227.08 | 45.47 | 250.52 | 0.7386 | 113.9 | 271.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 20:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 1.03 | -12.94 | 228.61 | 47.00 | 251.14 | 0.7556 | 133.0 | 252.9 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -12.59 | 228.26 | 46.65 | 251.48 | 0.7508 | 466.0 | 457.2 | |
| 0.00 | 2.05 | 0.00 | 1.54 | -13.27 | 228.38 | 46.77 | 250.64 | 0.7540 | 361.0 | 350.2 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -12.90 | 228.25 | 46.63 | 251.08 | 0.7515 | 371.0 | 392.8 | |
| 0.00 | 3.60 | 0.00 | 2.67 | -12.89 | 227.89 | 46.28 | 250.97 | 0.7475 | 627.0 | 608.5 | |
| 0.00 | 2.14 | 0.00 | 1.58 | -12.97 | 227.60 | 45.99 | 250.77 | 0.7446 | 677.0 | 550.0 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -13.31 | 227.46 | 45.85 | 250.29 | 0.7441 | 505.0 | 564.4 | |
| 0.00 | 1.28 | 0.00 | 0.89 | -13.46 | 223.56 | 41.94 | 248.64 | 0.7003 | -654.0 | -566.3 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -13.12 | 223.24 | 41.63 | 248.99 | 0.6954 | -674.0 | -593.4 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -12.66 | 223.02 | 41.41 | 249.54 | 0.6912 | -673.0 | -498.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
