SDO HMI 2014-11-24 21:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 159.68 | 862.14 | 180.35 | 986.51 | -15.41 | 243.49 | 62.43 | 251.82 | 0.8987 | -414.7 | -112.6 | |
|
previous
or next observation for the same group /

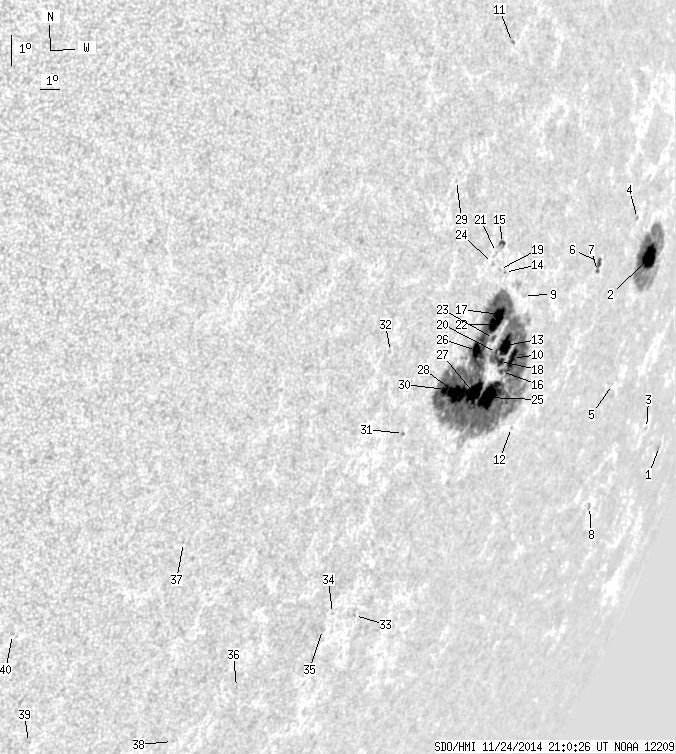

back to the solar disc SDO HMI 2014-11-24 21:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.14 | 0.00 | 5.83 | -18.95 | 259.38 | 78.32 | 250.38 | 0.9842 | 183.0 | 83.6 | |
| 20.46 | 118.50 | 32.30 | 187.04 | -12.87 | 251.85 | 70.79 | 255.85 | 0.9508 | 618.3 | 179.9 | |
| 0.00 | 0.60 | 0.00 | 1.30 | -18.30 | 256.59 | 75.53 | 250.76 | 0.9747 | 77.0 | 93.3 | |
| 0.00 | 1.54 | 0.00 | 2.21 | -11.63 | 250.04 | 68.98 | 256.95 | 0.9400 | 179.0 | 169.7 | |
| 0.00 | 0.26 | 0.00 | 0.40 | -16.77 | 251.34 | 70.28 | 251.71 | 0.9507 | -233.0 | -180.7 | |
| 2.48 | 5.91 | 3.23 | 7.68 | -12.90 | 247.63 | 66.58 | 255.30 | 0.9263 | 354.5 | 245.7 | |
| 0.77 | -6.00 | 1.00 | -6.00 | -13.18 | 247.63 | 66.57 | 255.01 | 0.9265 | 318.1 | 999999 | |
| 0.00 | 1.88 | 0.00 | 3.33 | -20.65 | 252.97 | 71.92 | 247.90 | 0.9613 | -352.0 | -281.6 | |
| 0.00 | 2.31 | 0.00 | 2.52 | -13.77 | 242.71 | 61.65 | 253.60 | 0.8929 | 178.0 | 127.9 | |
| 9.59 | 707.08 | 10.65 | 755.11 | -15.72 | 242.95 | 61.89 | 251.49 | 0.8972 | -283.6 | -188.6 | |
| 0.00 | 1.37 | 0.00 | 1.32 | -6.05 | 239.68 | 58.62 | 261.92 | 0.8596 | -511.0 | -419.1 | |
| 0.00 | 0.77 | 0.00 | 0.91 | -17.90 | 244.15 | 63.09 | 249.34 | 0.9087 | -121.0 | -110.0 | |
| 15.41 | -10.00 | 16.73 | -10.00 | -15.30 | 242.28 | 61.22 | 251.83 | 0.8917 | -646.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.89 | -13.03 | 241.19 | 60.13 | 254.16 | 0.8801 | -763.0 | -697.4 | |
| 1.63 | 4.71 | 1.65 | 4.78 | -12.13 | 240.72 | 59.66 | 255.09 | 0.8752 | 381.9 | 241.9 | |
| 1.54 | -10.00 | 1.69 | -10.00 | -16.11 | 242.43 | 61.38 | 250.97 | 0.8940 | -628.9 | 999999 | |
| 11.30 | -10.00 | 11.88 | -10.00 | -14.32 | 241.43 | 60.37 | 252.76 | 0.8838 | -836.0 | 999999 | |
| 5.74 | -10.00 | 6.21 | -10.00 | -15.79 | 242.14 | 61.08 | 251.26 | 0.8913 | -689.3 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.49 | -12.92 | 240.84 | 59.78 | 254.22 | 0.8772 | -421.0 | -417.6 | |
| 0.94 | -10.00 | 1.01 | -10.00 | -15.50 | 241.80 | 60.74 | 251.52 | 0.8884 | -795.2 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.61 | -12.40 | 240.46 | 59.40 | 254.75 | 0.8734 | 227.0 | 201.1 | |
| 10.10 | -10.00 | 10.56 | -10.00 | -14.62 | 241.19 | 60.14 | 252.38 | 0.8824 | -963.8 | 999999 | |
| 1.88 | -10.00 | 1.98 | -10.00 | -15.06 | 241.40 | 60.34 | 251.93 | 0.8846 | -712.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.55 | -12.73 | 240.34 | 59.28 | 254.35 | 0.8729 | -309.0 | -238.2 | |
| 22.18 | -10.00 | 24.06 | -10.00 | -16.90 | 241.96 | 60.90 | 250.00 | 0.8916 | -571.1 | 999999 | |
| 7.71 | -10.00 | 7.92 | -10.00 | -15.40 | 240.51 | 59.45 | 251.37 | 0.8782 | 105.9 | 999999 | |
| 21.92 | -10.00 | 23.07 | -10.00 | -16.72 | 240.98 | 59.92 | 250.00 | 0.8839 | -858.7 | 999999 | |
| 20.55 | -10.00 | 20.95 | -10.00 | -16.72 | 239.94 | 58.88 | 249.77 | 0.8758 | -971.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.86 | -10.13 | 237.45 | 56.39 | 256.82 | 0.8441 | -381.0 | -324.8 | |
| 5.48 | -10.00 | 5.46 | -10.00 | -16.58 | 239.21 | 58.15 | 249.77 | 0.8697 | -1080.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.90 | -17.90 | 237.43 | 56.37 | 247.83 | 0.8577 | -567.0 | -413.7 | |
| 0.00 | 1.03 | 0.00 | 0.92 | -15.30 | 235.59 | 54.53 | 250.36 | 0.8362 | -436.0 | -397.9 | |
| 0.00 | 0.94 | 0.00 | 0.96 | -23.73 | 237.97 | 56.91 | 241.47 | 0.8750 | -407.0 | -334.8 | |
| 0.00 | 0.26 | 0.00 | 0.25 | -23.63 | 236.61 | 55.55 | 241.17 | 0.8645 | -527.0 | -469.0 | |
| 0.00 | 2.31 | 0.00 | 2.26 | -24.14 | 236.37 | 55.31 | 240.52 | 0.8640 | -80.0 | -95.3 | |
| 0.00 | 0.86 | 0.00 | 0.78 | -25.96 | 232.77 | 51.71 | 237.24 | 0.8413 | -54.0 | -73.1 | |
| 0.00 | 0.68 | 0.00 | 0.54 | -21.11 | 227.68 | 46.62 | 240.81 | 0.7791 | -456.0 | -408.2 | |
| 0.00 | 0.68 | 0.00 | 0.60 | -27.72 | 230.49 | 49.43 | 234.37 | 0.8295 | -273.0 | -343.1 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -27.58 | 223.47 | 42.41 | 231.11 | 0.7703 | -481.0 | -430.0 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -23.94 | 221.22 | 40.16 | 234.13 | 0.7298 | -389.0 | -395.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
