SDO HMI 2014-11-24 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.77 | 16.79 | 0.58 | 12.36 | -13.17 | 226.18 | 45.67 | 250.36 | 0.7414 | 27.3 | 84.1 | |
|
previous
or next observation for the same group /

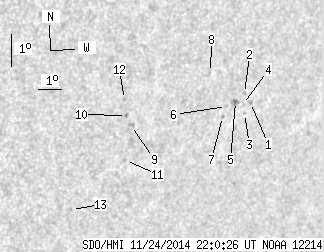

back to the solar disc SDO HMI 2014-11-24 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 1.05 | -12.88 | 228.62 | 48.11 | 251.56 | 0.7673 | 210.0 | 234.2 | |
| 0.00 | 1.11 | 0.00 | 0.85 | -12.59 | 228.28 | 47.77 | 251.82 | 0.7629 | 586.0 | 526.5 | |
| 0.00 | 0.69 | 0.00 | 0.53 | -13.21 | 228.43 | 47.93 | 251.09 | 0.7662 | 397.0 | 360.4 | |
| 0.00 | 0.43 | 0.00 | 0.33 | -12.93 | 228.27 | 47.76 | 251.39 | 0.7637 | 388.0 | 361.0 | |
| 0.77 | 4.11 | 0.58 | 3.12 | -12.83 | 227.93 | 47.42 | 251.42 | 0.7598 | 717.9 | 590.2 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -12.97 | 227.56 | 47.05 | 251.12 | 0.7562 | 671.0 | 600.1 | |
| 0.00 | 1.20 | 0.00 | 0.90 | -13.28 | 227.46 | 46.95 | 250.69 | 0.7559 | 577.0 | 549.7 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -11.92 | 226.60 | 46.10 | 252.20 | 0.7428 | 386.0 | 289.3 | |
| 0.00 | 2.23 | 0.00 | 1.57 | -13.47 | 223.57 | 43.06 | 249.09 | 0.7132 | -687.0 | -568.1 | |
| 0.00 | 1.37 | 0.00 | 0.96 | -13.15 | 223.29 | 42.79 | 249.41 | 0.7089 | -729.0 | -632.7 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -14.54 | 223.57 | 43.06 | 247.65 | 0.7170 | -621.0 | -524.9 | |
| 0.00 | 1.28 | 0.00 | 0.89 | -12.66 | 223.10 | 42.60 | 250.01 | 0.7051 | -609.0 | -477.6 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -16.01 | 221.69 | 41.18 | 244.86 | 0.7015 | -642.0 | -461.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
