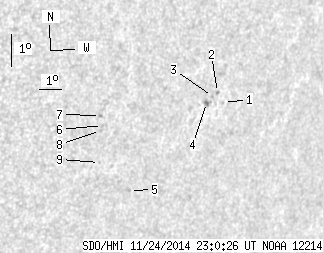

SDO HMI 2014-11-24 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 11.91 | 0.52 | 8.84 | -13.25 | 226.15 | 46.19 | 250.45 | 0.7473 | -108.8 | 61.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.53 | -12.86 | 228.66 | 48.71 | 251.76 | 0.7736 | 350.0 | 319.0 | |
| 0.00 | 1.28 | 0.00 | 0.99 | -12.55 | 228.31 | 48.35 | 252.06 | 0.7690 | 592.0 | 508.4 | |
| 0.00 | 0.94 | 0.00 | 0.72 | -12.67 | 228.11 | 48.15 | 251.85 | 0.7672 | 621.0 | 502.3 | |
| 0.69 | 3.51 | 0.52 | 2.69 | -12.84 | 227.88 | 47.92 | 251.56 | 0.7652 | 729.5 | 630.9 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -15.48 | 225.15 | 45.19 | 247.25 | 0.7438 | -459.0 | -346.1 | |
| 0.00 | 1.37 | 0.00 | 0.97 | -13.45 | 223.47 | 43.52 | 249.30 | 0.7183 | -700.0 | -507.3 | |
| 0.00 | 1.46 | 0.00 | 1.03 | -13.14 | 223.32 | 43.37 | 249.66 | 0.7155 | -750.0 | -635.8 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -13.60 | 223.42 | 43.47 | 249.07 | 0.7183 | -458.0 | -390.4 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -14.59 | 223.62 | 43.66 | 247.83 | 0.7239 | -502.0 | -442.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
