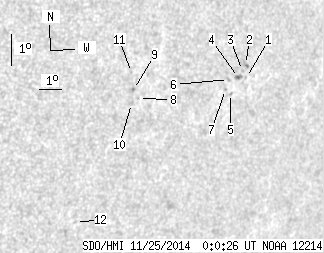

SDO HMI 2014-11-25 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.51 | 16.28 | 0.40 | 12.30 | -13.04 | 226.53 | 47.12 | 251.02 | 0.7568 | 118.1 | 190.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-25 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.27 | -12.88 | 228.36 | 48.95 | 251.82 | 0.7762 | 434.0 | 370.2 | |
| 0.00 | 2.83 | 0.00 | 2.20 | -12.48 | 228.21 | 48.80 | 252.28 | 0.7736 | 557.0 | 406.4 | |
| 0.00 | 1.20 | 0.00 | 0.93 | -12.66 | 228.11 | 48.71 | 252.03 | 0.7731 | 568.0 | 459.9 | |
| 0.51 | 3.00 | 0.40 | 2.33 | -12.87 | 227.98 | 48.58 | 251.72 | 0.7722 | 729.7 | 631.0 | |
| 0.00 | 1.03 | 0.00 | 0.80 | -13.35 | 227.74 | 48.34 | 251.04 | 0.7709 | 393.0 | 424.0 | |
| 0.00 | 1.37 | 0.00 | 1.05 | -12.92 | 227.54 | 48.14 | 251.53 | 0.7676 | 580.0 | 491.6 | |
| 0.00 | 1.20 | 0.00 | 0.92 | -13.22 | 227.48 | 48.08 | 251.12 | 0.7678 | 558.0 | 442.6 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -13.41 | 223.69 | 44.28 | 249.63 | 0.7268 | -544.0 | -493.2 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -13.13 | 223.41 | 44.01 | 249.91 | 0.7228 | -695.0 | -600.7 | |
| 0.00 | 2.31 | 0.00 | 1.65 | -13.56 | 223.42 | 44.02 | 249.34 | 0.7243 | -329.0 | -283.3 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -12.61 | 223.21 | 43.81 | 250.54 | 0.7188 | -608.0 | -563.0 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -17.21 | 222.00 | 42.59 | 243.93 | 0.7221 | -471.0 | -447.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
