SDO HMI 2014-11-25 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.94 | 52.23 | 6.90 | 27.81 | 4.60 | 158.09 | -21.31 | 81.77 | 0.3678 | 131.9 | -3.1 | |
|
previous
or next observation for the same group /

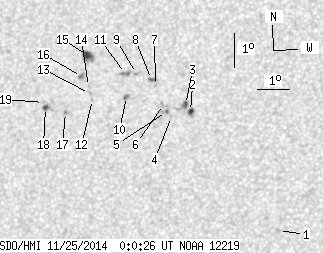

back to the solar disc SDO HMI 2014-11-25 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 0.97 | 0.58 | 162.85 | -16.56 | 93.58 | 0.2868 | 806.0 | 519.2 | |
| 2.31 | 3.85 | 1.21 | 2.02 | 4.08 | 160.06 | -19.34 | 82.46 | 0.3347 | -1068.1 | -761.1 | |
| 1.63 | 6.08 | 0.86 | 3.20 | 4.29 | 159.90 | -19.50 | 81.91 | 0.3377 | -930.7 | -714.4 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 3.93 | 159.47 | -19.93 | 83.10 | 0.3441 | -784.0 | -523.0 | |
| 0.43 | 2.83 | 0.23 | 1.49 | 4.08 | 159.31 | -20.10 | 82.73 | 0.3470 | -1035.4 | -724.8 | |
| 0.00 | 3.00 | 0.00 | 1.58 | 4.28 | 159.21 | -20.20 | 82.17 | 0.3490 | -425.0 | -443.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 4.84 | 158.94 | -20.47 | 80.68 | 0.3546 | -853.0 | -676.1 | |
| 1.11 | 2.74 | 0.59 | 1.45 | 5.02 | 158.80 | -20.60 | 80.24 | 0.3572 | -896.9 | -729.4 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 5.19 | 158.32 | -21.08 | 79.97 | 0.3654 | -865.0 | -618.3 | |
| 0.00 | 2.65 | 0.00 | 1.41 | 4.51 | 158.02 | -21.38 | 81.93 | 0.3686 | 1027.0 | 860.6 | |
| 0.00 | 4.71 | 0.00 | 2.51 | 5.19 | 157.97 | -21.43 | 80.12 | 0.3710 | -959.0 | -692.8 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 4.41 | 156.94 | -22.46 | 82.53 | 0.3859 | 540.0 | 511.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 4.59 | 156.84 | -22.56 | 82.10 | 0.3878 | 713.0 | 566.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 4.79 | 156.80 | -22.60 | 81.58 | 0.3889 | 807.0 | 564.7 | |
| 4.97 | 9.42 | 2.67 | 5.07 | 5.71 | 156.73 | -22.67 | 79.27 | 0.3920 | 1034.6 | 820.0 | |
| 0.86 | 2.74 | 0.46 | 1.48 | 5.09 | 156.56 | -22.84 | 80.91 | 0.3932 | 1023.4 | 846.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 4.02 | 156.08 | -23.32 | 83.75 | 0.3990 | 1014.0 | 894.5 | |
| 1.63 | 3.77 | 0.88 | 2.04 | 4.16 | 155.43 | -23.97 | 83.54 | 0.4096 | 923.8 | 635.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 4.31 | 155.36 | -24.04 | 83.20 | 0.4109 | 562.0 | 434.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
