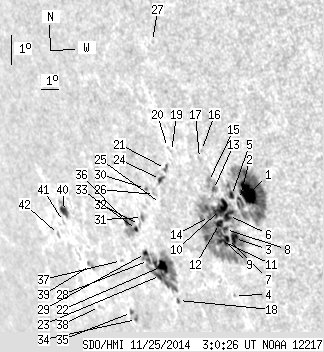

SDO HMI 2014-11-25 03:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.98 | 454.25 | 90.16 | 419.95 | -18.74 | 123.05 | -54.70 | 113.58 | 0.8441 | 242.1 | 60.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-25 03:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.82 | 126.95 | 17.76 | 108.45 | -17.77 | 126.00 | -51.75 | 113.29 | 0.8165 | 1001.0 | 464.3 | |
| 1.11 | -1.00 | 0.96 | -1.00 | -17.97 | 125.46 | -52.29 | 113.36 | 0.8220 | 540.6 | 999999 | |
| 6.77 | 183.83 | 6.02 | 165.47 | -19.21 | 124.64 | -53.11 | 114.57 | 0.8326 | 748.9 | 43.3 | |
| 0.00 | 0.86 | 0.00 | 0.79 | -21.05 | 123.72 | -54.03 | 116.39 | 0.8454 | 292.0 | 257.8 | |
| 2.83 | -1.00 | 2.46 | -1.00 | -17.85 | 125.10 | -52.66 | 113.11 | 0.8250 | 694.4 | 999999 | |
| 6.08 | -3.00 | 5.38 | -3.00 | -18.49 | 124.66 | -53.09 | 113.73 | 0.8306 | 771.6 | 999999 | |
| 2.23 | -3.00 | 2.00 | -3.00 | -19.22 | 124.27 | -53.48 | 114.46 | 0.8359 | 528.0 | 999999 | |
| 2.14 | -3.00 | 1.92 | -3.00 | -18.94 | 124.30 | -53.46 | 114.14 | 0.8349 | 668.5 | 999999 | |
| 3.00 | -3.00 | 2.70 | -3.00 | -19.32 | 124.06 | -53.69 | 114.52 | 0.8380 | 452.1 | 999999 | |
| 14.22 | -3.00 | 12.66 | -3.00 | -18.31 | 124.32 | -53.43 | 113.42 | 0.8331 | 564.8 | 999999 | |
| 1.11 | -3.00 | 1.01 | -3.00 | -19.30 | 123.86 | -53.89 | 114.43 | 0.8396 | 246.5 | 999999 | |
| 3.85 | -3.00 | 3.46 | -3.00 | -18.75 | 124.07 | -53.69 | 113.86 | 0.8365 | 450.0 | 999999 | |
| 0.77 | 5.05 | 0.68 | 4.48 | -17.68 | 124.23 | -53.52 | 112.66 | 0.8324 | 609.1 | 452.0 | |
| 1.46 | -3.00 | 1.32 | -3.00 | -18.54 | 123.63 | -54.12 | 113.49 | 0.8398 | 117.8 | 999999 | |
| 0.00 | 4.71 | 0.00 | 4.19 | -17.44 | 124.08 | -53.68 | 112.33 | 0.8332 | 2.0 | 30.5 | |
| 0.00 | 0.77 | 0.00 | 0.68 | -16.47 | 124.12 | -53.64 | 111.21 | 0.8306 | 455.0 | 395.7 | |
| 0.00 | 1.97 | 0.00 | 1.75 | -16.72 | 123.91 | -53.85 | 111.45 | 0.8330 | 451.0 | 289.4 | |
| 0.69 | 1.71 | 0.69 | 1.73 | -21.29 | 120.41 | -57.35 | 115.69 | 0.8726 | 367.9 | 306.5 | |
| 0.00 | 1.11 | 0.00 | 1.03 | -16.54 | 122.48 | -55.27 | 110.86 | 0.8453 | 330.0 | 312.4 | |
| 0.00 | 1.03 | 0.00 | 0.95 | -16.42 | 122.32 | -55.44 | 110.68 | 0.8465 | 230.0 | 199.2 | |
| 0.00 | 2.57 | 0.00 | 2.41 | -17.08 | 121.91 | -55.84 | 111.34 | 0.8514 | 500.0 | 362.9 | |
| 10.88 | 71.10 | 10.97 | 71.79 | -20.22 | 120.04 | -57.71 | 114.40 | 0.8731 | -797.5 | -354.0 | |
| 3.94 | -22.00 | 4.01 | -22.00 | -20.51 | 119.81 | -57.94 | 114.66 | 0.8755 | -82.3 | 999999 | |
| 1.71 | 4.20 | 1.63 | 3.99 | -17.44 | 121.46 | -56.29 | 111.63 | 0.8559 | 331.0 | 138.8 | |
| 0.00 | 1.37 | 0.00 | 1.32 | -18.20 | 121.09 | -56.66 | 112.40 | 0.8605 | -647.0 | -624.4 | |
| 0.00 | 1.37 | 0.00 | 1.33 | -17.92 | 120.89 | -56.87 | 112.04 | 0.8617 | -634.0 | -523.1 | |
| 0.00 | 1.11 | 0.00 | 1.00 | -13.14 | 122.77 | -54.99 | 106.96 | 0.8360 | 495.0 | 367.2 | |
| 1.46 | -22.00 | 1.49 | -22.00 | -20.04 | 119.37 | -58.39 | 114.03 | 0.8780 | -291.9 | 999999 | |
| 1.97 | -22.00 | 2.02 | -22.00 | -19.82 | 119.32 | -58.44 | 113.77 | 0.8779 | -289.8 | 999999 | |
| 0.34 | 1.28 | 0.34 | 1.26 | -17.74 | 120.46 | -57.30 | 111.73 | 0.8648 | -619.8 | -545.1 | |
| 0.00 | 2.40 | 0.00 | 2.41 | -18.67 | 119.79 | -57.96 | 112.61 | 0.8720 | -618.0 | -565.4 | |
| 0.00 | 1.97 | 0.00 | 2.00 | -18.90 | 119.49 | -58.27 | 112.79 | 0.8748 | -555.0 | -492.3 | |
| 1.20 | 17.05 | 1.23 | 17.62 | -19.06 | 119.21 | -58.54 | 112.91 | 0.8772 | -296.7 | -114.5 | |
| 0.60 | 2.14 | 0.66 | 2.37 | -21.98 | 117.34 | -60.42 | 115.65 | 0.8965 | -549.6 | -519.1 | |
| 0.94 | 2.66 | 1.05 | 2.96 | -21.76 | 117.17 | -60.59 | 115.37 | 0.8973 | -542.0 | -254.0 | |
| 2.23 | -33.00 | 2.31 | -33.00 | -18.82 | 118.74 | -59.01 | 112.53 | 0.8804 | 186.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.20 | -20.09 | 117.66 | -60.09 | 113.66 | 0.8908 | -488.0 | -365.8 | |
| 0.00 | 1.11 | 0.00 | 1.33 | -21.62 | 115.11 | -62.65 | 114.75 | 0.9110 | -204.0 | -167.3 | |
| 0.00 | 3.43 | 0.00 | 3.98 | -20.30 | 115.47 | -62.29 | 113.40 | 0.9065 | -648.0 | -544.7 | |
| 4.63 | 8.82 | 5.43 | 10.35 | -18.61 | 114.85 | -62.91 | 111.44 | 0.9083 | -557.6 | -407.4 | |
| 0.00 | 0.69 | 0.00 | 0.81 | -18.93 | 114.56 | -63.20 | 111.74 | 0.9107 | -424.0 | -385.2 | |
| 0.00 | 1.88 | 0.00 | 2.30 | -19.36 | 113.90 | -63.85 | 112.07 | 0.9156 | -77.0 | -24.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
