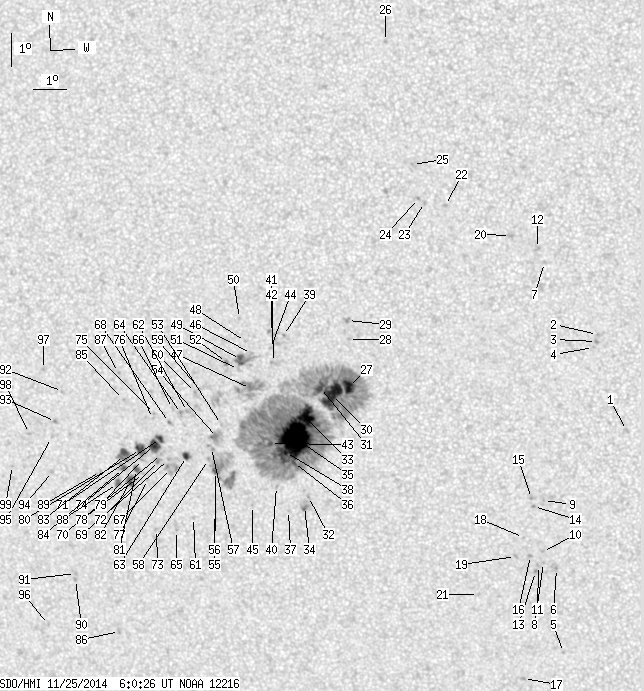

SDO HMI 2014-11-25 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 167.72 | 1082.13 | 87.72 | 565.87 | -13.08 | 164.97 | -11.15 | 143.66 | 0.3183 | 458.6 | 273.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-25 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.74 | 0.00 | 1.40 | -13.22 | 175.31 | -0.81 | 176.94 | 0.2578 | 823.0 | 656.4 | |
| 0.00 | 1.37 | 0.00 | 0.69 | -10.30 | 174.45 | -1.67 | 172.11 | 0.2096 | 933.0 | 766.2 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -10.51 | 174.42 | -1.70 | 172.11 | 0.2133 | 1080.0 | 894.4 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -10.70 | 174.32 | -1.79 | 171.81 | 0.2166 | 886.0 | 732.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -20.15 | 173.28 | -2.83 | 172.87 | 0.3755 | 805.0 | 689.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -17.50 | 173.11 | -3.00 | 171.33 | 0.3328 | 882.0 | 736.8 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -8.13 | 172.88 | -3.24 | 161.73 | 0.1793 | 813.0 | 583.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -17.31 | 172.71 | -3.40 | 170.09 | 0.3308 | 862.0 | 781.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -15.38 | 172.75 | -3.37 | 169.04 | 0.2992 | 1008.0 | 829.2 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -16.96 | 172.69 | -3.43 | 169.83 | 0.3253 | 890.0 | 722.1 | |
| 0.00 | 2.06 | 0.00 | 1.08 | -17.40 | 172.56 | -3.56 | 169.70 | 0.3328 | 752.0 | 595.8 | |
| 0.00 | 2.14 | 0.00 | 1.08 | -7.71 | 172.67 | -3.45 | 159.84 | 0.1736 | 750.0 | 790.7 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.59 | 172.46 | -3.66 | 169.53 | 0.3361 | 913.0 | 776.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -15.56 | 172.44 | -3.68 | 168.19 | 0.3032 | 949.0 | 838.8 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -15.32 | 172.38 | -3.73 | 167.83 | 0.2994 | 888.0 | 786.5 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -17.09 | 172.31 | -3.80 | 168.82 | 0.3285 | 979.0 | 777.5 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -20.98 | 172.00 | -4.12 | 170.10 | 0.3919 | 791.0 | 627.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.53 | 172.11 | -4.01 | 167.86 | 0.3200 | 741.0 | 578.1 | |
| 0.00 | 2.14 | 0.00 | 1.12 | -17.12 | 171.85 | -4.27 | 167.52 | 0.3305 | 914.0 | 691.7 | |
| 0.00 | 2.91 | 0.00 | 1.46 | -7.32 | 171.87 | -4.25 | 154.70 | 0.1728 | 895.0 | 645.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.32 | 170.66 | -5.46 | 165.17 | 0.3542 | 736.0 | 439.5 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -6.43 | 169.93 | -6.18 | 142.59 | 0.1770 | 966.0 | 752.3 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -6.34 | 169.30 | -6.81 | 139.57 | 0.1826 | 922.0 | 623.5 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -6.22 | 169.13 | -6.99 | 138.41 | 0.1831 | 1001.0 | 749.3 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -5.21 | 168.96 | -7.16 | 133.75 | 0.1725 | 981.0 | 791.6 | |
| 0.00 | 1.37 | 0.00 | 0.69 | -1.56 | 168.19 | -7.93 | 111.82 | 0.1492 | 897.0 | 640.0 | |
| 10.79 | 790.30 | 5.57 | 411.84 | -11.89 | 166.87 | -9.25 | 146.03 | 0.2827 | 1438.1 | 454.6 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -10.47 | 166.92 | -9.20 | 143.06 | 0.2628 | 763.0 | 615.1 | |
| 0.00 | 2.74 | 0.00 | 1.40 | -9.89 | 166.90 | -9.21 | 141.64 | 0.2553 | 935.0 | 780.3 | |
| 28.44 | -27.00 | 14.72 | -27.00 | -12.14 | 166.34 | -9.78 | 145.04 | 0.2911 | 1255.2 | 999999 | |
| 5.48 | -27.00 | 2.84 | -27.00 | -11.93 | 166.01 | -10.11 | 143.71 | 0.2915 | 1126.0 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -15.27 | 165.48 | -10.63 | 148.48 | 0.3419 | 899.0 | 731.0 | |
| 19.10 | -27.00 | 9.94 | -27.00 | -12.84 | 165.54 | -10.58 | 144.33 | 0.3083 | 1500.5 | 999999 | |
| 0.00 | 6.34 | 0.00 | 3.35 | -15.58 | 165.34 | -10.77 | 148.63 | 0.3474 | -235.0 | -51.5 | |
| 64.68 | -27.00 | 33.80 | -27.00 | -13.49 | 165.17 | -10.95 | 144.64 | 0.3205 | 1541.6 | 999999 | |
| 1.71 | -27.00 | 0.90 | -27.00 | -14.23 | 165.07 | -11.05 | 145.73 | 0.3313 | 858.2 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -15.71 | 164.83 | -11.28 | 147.65 | 0.3536 | -658.0 | -556.9 | |
| 2.06 | -27.00 | 1.08 | -27.00 | -13.92 | 164.84 | -11.28 | 144.63 | 0.3294 | 1035.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -10.35 | 164.93 | -11.18 | 137.33 | 0.2828 | 662.0 | 508.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -14.97 | 164.50 | -11.62 | 145.69 | 0.3466 | 694.0 | 511.4 | |
| 0.00 | 2.48 | 0.00 | 1.29 | -11.17 | 164.59 | -11.52 | 138.43 | 0.2967 | 653.0 | 421.0 | |
| 0.00 | 3.77 | 0.00 | 1.95 | -10.26 | 164.57 | -11.55 | 136.20 | 0.2859 | -530.0 | -471.2 | |
| 2.14 | -27.00 | 1.12 | -27.00 | -13.64 | 164.38 | -11.73 | 143.06 | 0.3302 | 722.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.75 | 164.52 | -11.60 | 137.25 | 0.2923 | 574.0 | 375.2 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -15.56 | 163.71 | -12.40 | 144.93 | 0.3618 | -863.0 | -710.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -10.90 | 163.93 | -12.19 | 136.21 | 0.3010 | -168.0 | -145.2 | |
| 0.00 | 28.10 | 0.00 | 14.66 | -11.97 | 163.85 | -12.27 | 138.43 | 0.3147 | -343.0 | -168.3 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -10.54 | 163.76 | -12.36 | 134.95 | 0.2987 | -654.0 | -372.2 | |
| 4.11 | 13.28 | 2.14 | 6.90 | -11.09 | 163.58 | -12.54 | 135.84 | 0.3072 | -1039.7 | -573.0 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -9.85 | 163.60 | -12.52 | 132.87 | 0.2926 | -712.0 | -524.2 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -11.39 | 163.50 | -12.61 | 136.37 | 0.3116 | -43.0 | -135.8 | |
| 0.00 | 2.48 | 0.00 | 1.30 | -11.18 | 163.14 | -12.97 | 135.09 | 0.3134 | -869.0 | -752.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.07 | 162.89 | -13.23 | 138.61 | 0.3386 | 636.0 | 490.3 | |
| 0.00 | 14.91 | 0.00 | 7.86 | -13.47 | 162.74 | -13.38 | 139.09 | 0.3451 | 165.0 | 136.0 | |
| 1.46 | 43.86 | 0.77 | 23.23 | -14.52 | 162.61 | -13.50 | 140.81 | 0.3593 | -436.8 | 37.3 | |
| 0.00 | 0.34 | 0.00 | 0.18 | -15.75 | 162.53 | -13.58 | 142.81 | 0.3756 | -616.0 | -553.2 | |
| 0.00 | 3.00 | 0.00 | 1.59 | -13.78 | 162.53 | -13.58 | 139.26 | 0.3510 | -523.0 | -573.5 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.15 | 162.42 | -13.70 | 139.73 | 0.3568 | -1005.0 | -773.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -11.98 | 162.26 | -13.85 | 135.01 | 0.3328 | -859.0 | -720.0 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -12.10 | 162.13 | -13.98 | 135.01 | 0.3357 | -796.0 | -707.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -15.94 | 161.82 | -14.30 | 141.73 | 0.3850 | -795.0 | -534.3 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -12.68 | 161.85 | -14.27 | 135.68 | 0.3457 | -762.0 | -659.5 | |
| 3.08 | 4.97 | 1.64 | 2.64 | -14.06 | 161.73 | -14.38 | 138.19 | 0.3631 | -968.7 | -775.0 | |
| 0.00 | 2.23 | 0.00 | 1.18 | -12.74 | 161.66 | -14.46 | 135.43 | 0.3486 | -923.0 | -830.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -16.35 | 161.25 | -14.87 | 141.33 | 0.3958 | -782.0 | -609.9 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -12.59 | 161.38 | -14.73 | 134.59 | 0.3500 | -872.0 | -690.6 | |
| 0.00 | 11.14 | 0.00 | 5.94 | -14.43 | 161.23 | -14.88 | 137.94 | 0.3729 | -418.0 | -514.3 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -13.02 | 161.26 | -14.85 | 135.24 | 0.3563 | -928.0 | -684.3 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -14.15 | 161.16 | -14.96 | 137.27 | 0.3705 | -1031.0 | -843.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -14.00 | 160.95 | -15.17 | 136.59 | 0.3711 | -846.0 | -735.6 | |
| 2.74 | 16.02 | 1.46 | 8.53 | -13.51 | 160.95 | -15.17 | 135.64 | 0.3655 | -1155.8 | -832.3 | |
| 0.00 | 3.00 | 0.00 | 1.60 | -14.19 | 160.84 | -15.28 | 136.74 | 0.3744 | -883.0 | -767.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -16.32 | 160.61 | -15.51 | 140.13 | 0.4019 | -777.0 | -651.7 | |
| 7.97 | -71.00 | 4.25 | -71.00 | -13.73 | 160.74 | -15.37 | 135.69 | 0.3702 | -1093.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -12.75 | 160.81 | -15.31 | 133.83 | 0.3585 | -919.0 | -763.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -12.90 | 160.74 | -15.38 | 134.02 | 0.3611 | -773.0 | -712.5 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -14.78 | 160.45 | -15.67 | 137.13 | 0.3855 | -610.0 | -376.4 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -14.59 | 160.33 | -15.78 | 136.59 | 0.3847 | -717.0 | -524.1 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -14.16 | 160.33 | -15.78 | 135.78 | 0.3798 | -622.0 | -690.3 | |
| 5.65 | 10.45 | 3.02 | 5.58 | -13.85 | 160.29 | -15.82 | 135.11 | 0.3768 | -1073.6 | -799.9 | |
| 1.71 | 4.03 | 0.92 | 2.16 | -14.47 | 160.12 | -16.00 | 135.98 | 0.3857 | -977.6 | -834.7 | |
| 3.94 | 6.51 | 2.12 | 3.50 | -14.81 | 159.90 | -16.21 | 136.23 | 0.3920 | -884.6 | -681.0 | |
| 0.00 | 13.88 | 0.00 | 7.44 | -14.04 | 159.77 | -16.35 | 134.56 | 0.3849 | -947.0 | -831.8 | |
| 1.29 | 4.80 | 0.69 | 2.58 | -14.44 | 159.71 | -16.41 | 135.22 | 0.3900 | -913.0 | -658.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -12.33 | 159.86 | -16.26 | 131.26 | 0.3655 | -952.0 | -784.8 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -19.54 | 159.10 | -17.01 | 142.54 | 0.4553 | -847.0 | -745.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -11.50 | 159.75 | -16.36 | 129.31 | 0.3584 | -916.0 | -786.3 | |
| 1.37 | 4.20 | 0.74 | 2.26 | -14.91 | 159.48 | -16.64 | 135.69 | 0.3978 | -798.4 | -622.6 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -14.54 | 158.96 | -17.15 | 134.16 | 0.3996 | -879.0 | -628.1 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -17.91 | 157.84 | -18.28 | 138.13 | 0.4490 | -767.0 | -603.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -17.72 | 157.86 | -18.26 | 137.86 | 0.4467 | -802.0 | -631.3 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -12.10 | 157.94 | -18.18 | 127.71 | 0.3872 | -665.0 | -566.6 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -13.01 | 157.65 | -18.47 | 129.15 | 0.3998 | -1058.0 | -851.3 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -14.55 | 157.42 | -18.70 | 131.77 | 0.4178 | -67.0 | -131.3 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -13.51 | 157.48 | -18.64 | 129.87 | 0.4066 | -730.0 | -527.8 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -19.34 | 156.78 | -19.34 | 138.75 | 0.4758 | -817.0 | -670.6 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -11.43 | 157.38 | -18.73 | 125.49 | 0.3883 | -832.0 | -708.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -13.39 | 156.78 | -19.34 | 128.64 | 0.4142 | -896.0 | -815.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -14.38 | 156.14 | -19.98 | 129.63 | 0.4315 | -637.0 | -527.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
