SDO HMI 2014-11-25 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.57 | 445.98 | 73.21 | 397.86 | -18.81 | 122.82 | -53.29 | 114.07 | 0.8319 | 175.4 | 82.3 | |
|
previous
or next observation for the same group /

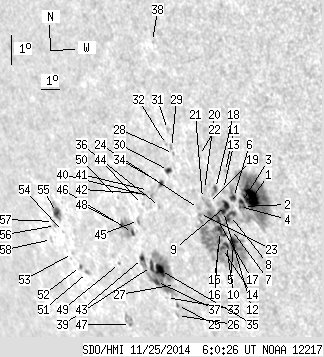

back to the solar disc SDO HMI 2014-11-25 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.71 | 275.17 | 13.75 | 233.07 | -17.81 | 126.02 | -50.09 | 113.86 | 0.8008 | 1021.7 | 285.6 | |
| 0.77 | -1.00 | 0.64 | -1.00 | -18.07 | 125.53 | -50.59 | 114.01 | 0.8063 | 565.7 | 999999 | |
| 1.80 | -1.00 | 1.50 | -1.00 | -17.95 | 125.48 | -50.64 | 113.85 | 0.8064 | 597.3 | 999999 | |
| 0.51 | -1.00 | 0.43 | -1.00 | -18.08 | 125.33 | -50.79 | 113.95 | 0.8082 | 630.5 | 999999 | |
| 6.85 | -1.00 | 5.89 | -1.00 | -19.26 | 124.52 | -51.59 | 115.09 | 0.8190 | 776.3 | 999999 | |
| 2.23 | 7.62 | 1.87 | 6.39 | -17.80 | 125.14 | -50.97 | 113.56 | 0.8092 | 725.2 | 494.0 | |
| 0.00 | 0.94 | 0.00 | 0.81 | -18.82 | 124.62 | -51.50 | 114.60 | 0.8169 | 632.0 | 586.5 | |
| 4.28 | -1.00 | 3.64 | -1.00 | -18.37 | 124.76 | -51.36 | 114.12 | 0.8144 | 737.6 | 999999 | |
| 3.43 | -1.00 | 2.91 | -1.00 | -18.06 | 124.69 | -51.43 | 113.73 | 0.8142 | 699.9 | 999999 | |
| 1.88 | -1.00 | 1.63 | -1.00 | -19.33 | 124.13 | -51.98 | 115.05 | 0.8228 | 531.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.15 | -16.99 | 125.06 | -51.05 | 112.57 | 0.8077 | 370.0 | 307.2 | |
| 1.46 | -1.00 | 1.24 | -1.00 | -18.25 | 124.45 | -51.66 | 113.88 | 0.8169 | 695.5 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.58 | -17.56 | 124.74 | -51.37 | 113.15 | 0.8123 | 141.0 | 201.0 | |
| 1.63 | -1.00 | 1.42 | -1.00 | -19.44 | 123.88 | -52.23 | 115.09 | 0.8253 | 450.4 | 999999 | |
| 5.65 | -1.00 | 4.90 | -1.00 | -18.89 | 124.02 | -52.09 | 114.50 | 0.8225 | 538.0 | 999999 | |
| 1.03 | -1.00 | 0.90 | -1.00 | -19.22 | 123.78 | -52.34 | 114.80 | 0.8256 | 298.4 | 999999 | |
| 2.57 | -1.00 | 2.22 | -1.00 | -18.52 | 124.04 | -52.08 | 114.06 | 0.8214 | 470.1 | 999999 | |
| 1.20 | 4.28 | 1.02 | 3.66 | -17.54 | 124.35 | -51.77 | 113.00 | 0.8159 | 614.6 | 463.5 | |
| 0.00 | 4.28 | 0.00 | 3.71 | -18.02 | 123.79 | -52.32 | 113.40 | 0.8223 | -193.0 | -130.3 | |
| 0.00 | 1.37 | 0.00 | 1.18 | -17.58 | 123.77 | -52.34 | 112.88 | 0.8214 | -111.0 | -111.1 | |
| 0.00 | 1.20 | 0.00 | 1.04 | -17.87 | 123.55 | -52.57 | 113.15 | 0.8241 | -136.0 | -112.8 | |
| 0.00 | 1.03 | 0.00 | 0.88 | -16.52 | 123.94 | -52.17 | 111.67 | 0.8170 | 476.0 | 448.2 | |
| 0.00 | 1.11 | 0.00 | 0.98 | -18.35 | 123.18 | -52.93 | 113.60 | 0.8287 | -127.0 | -119.2 | |
| 0.00 | 1.20 | 0.00 | 1.05 | -18.19 | 123.20 | -52.91 | 113.42 | 0.8281 | -244.0 | -205.1 | |
| 0.43 | 1.63 | 0.41 | 1.56 | -21.33 | 120.47 | -55.64 | 116.21 | 0.8592 | 245.4 | 260.6 | |
| 0.00 | 1.63 | 0.00 | 1.58 | -21.66 | 120.28 | -55.83 | 116.52 | 0.8615 | 332.0 | 227.6 | |
| 0.00 | 0.51 | 0.00 | 0.49 | -20.65 | 120.74 | -55.37 | 115.52 | 0.8553 | -192.0 | -187.0 | |
| 0.00 | 1.11 | 0.00 | 0.98 | -16.48 | 122.62 | -53.50 | 111.25 | 0.8292 | 280.0 | 314.2 | |
| 0.00 | 1.80 | 0.00 | 1.58 | -16.30 | 122.59 | -53.52 | 111.03 | 0.8291 | 465.0 | 393.6 | |
| 2.31 | 3.77 | 2.07 | 3.37 | -17.03 | 122.13 | -53.98 | 111.75 | 0.8349 | 447.7 | 285.8 | |
| 0.00 | 1.80 | 0.00 | 1.58 | -15.74 | 122.60 | -53.51 | 110.37 | 0.8277 | 554.0 | 430.3 | |
| 0.00 | 0.94 | 0.00 | 0.83 | -16.21 | 122.36 | -53.75 | 110.86 | 0.8309 | 223.0 | 136.1 | |
| 0.00 | 0.26 | 0.00 | 0.25 | -21.09 | 119.99 | -56.13 | 115.79 | 0.8625 | 249.0 | 289.3 | |
| 1.54 | 3.17 | 1.40 | 2.88 | -17.44 | 121.58 | -54.54 | 112.09 | 0.8408 | 356.9 | 152.7 | |
| 7.80 | 74.10 | 7.50 | 71.54 | -20.22 | 120.14 | -55.98 | 114.86 | 0.8593 | -903.6 | -354.6 | |
| 0.00 | 1.37 | 0.00 | 1.27 | -18.18 | 121.13 | -54.99 | 112.81 | 0.8463 | -543.0 | -562.9 | |
| 2.57 | -35.00 | 2.51 | -35.00 | -20.58 | 119.70 | -56.41 | 115.15 | 0.8636 | -13.9 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.30 | -13.03 | 122.78 | -53.34 | 107.19 | 0.8203 | 450.0 | 439.0 | |
| 3.26 | -35.00 | 3.16 | -35.00 | -20.11 | 119.69 | -56.43 | 114.61 | 0.8626 | -583.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.95 | -17.87 | 120.84 | -55.28 | 112.38 | 0.8481 | -660.0 | -610.8 | |
| 0.00 | 0.51 | 0.00 | 0.48 | -17.68 | 120.76 | -55.36 | 112.14 | 0.8484 | -222.0 | -296.5 | |
| 0.00 | 1.63 | 0.00 | 1.53 | -17.78 | 120.43 | -55.68 | 112.17 | 0.8514 | -684.0 | -574.6 | |
| 2.40 | -35.00 | 2.35 | -35.00 | -19.86 | 119.30 | -56.81 | 114.23 | 0.8652 | -396.9 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.41 | -18.14 | 120.21 | -55.91 | 112.52 | 0.8540 | -458.0 | -418.2 | |
| 0.00 | 1.97 | 0.00 | 1.90 | -18.65 | 119.72 | -56.39 | 112.97 | 0.8592 | -612.0 | -625.7 | |
| 1.46 | 21.07 | 1.42 | 20.77 | -19.04 | 119.17 | -56.94 | 113.27 | 0.8645 | -498.5 | -144.8 | |
| 0.43 | 7.45 | 0.45 | 7.87 | -22.02 | 117.25 | -58.86 | 116.08 | 0.8854 | -497.6 | -477.5 | |
| 1.63 | -46.00 | 1.61 | -46.00 | -18.83 | 118.71 | -57.41 | 112.92 | 0.8678 | 377.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.79 | -20.06 | 117.83 | -58.28 | 114.06 | 0.8771 | -317.0 | -346.1 | |
| 0.00 | 0.69 | 0.00 | 0.67 | -17.95 | 118.88 | -57.24 | 111.96 | 0.8646 | 235.0 | 211.6 | |
| 0.00 | 1.97 | 0.00 | 2.16 | -20.40 | 115.62 | -60.50 | 113.90 | 0.8942 | -669.0 | -573.8 | |
| 0.69 | 1.80 | 0.76 | 1.99 | -20.22 | 115.28 | -60.83 | 113.62 | 0.8962 | -534.1 | -487.8 | |
| 0.00 | 0.26 | 0.00 | 0.29 | -19.81 | 115.03 | -61.09 | 113.12 | 0.8974 | -497.0 | -402.3 | |
| 0.00 | 0.26 | 0.00 | 0.29 | -19.12 | 114.89 | -61.23 | 112.34 | 0.8972 | -467.0 | -478.0 | |
| 5.05 | 9.59 | 5.61 | 10.65 | -18.52 | 114.80 | -61.31 | 111.67 | 0.8969 | -580.6 | -431.5 | |
| 0.00 | 1.03 | 0.00 | 1.16 | -18.94 | 114.47 | -61.64 | 112.05 | 0.8999 | -423.0 | -399.6 | |
| 0.00 | 0.86 | 0.00 | 0.97 | -18.82 | 114.42 | -61.69 | 111.91 | 0.9001 | -399.0 | -278.1 | |
| 0.00 | 1.97 | 0.00 | 2.27 | -19.40 | 113.90 | -62.21 | 112.43 | 0.9046 | -149.0 | -69.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
