SDO HMI 2014-11-25 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.25 | 626.45 | 166.66 | 956.00 | -15.42 | 243.52 | 69.58 | 252.98 | 0.9439 | -307.8 | -74.8 | |
|
previous
or next observation for the same group /

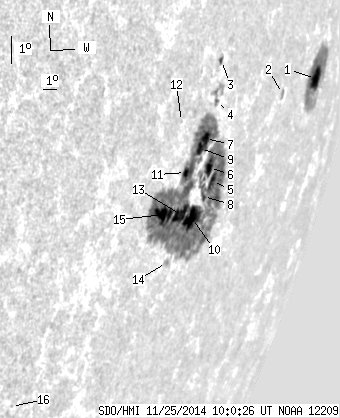

back to the solar disc SDO HMI 2014-11-25 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.88 | 79.14 | 34.18 | 195.90 | -12.89 | 251.58 | 77.65 | 256.49 | 0.9803 | 556.3 | 99.4 | |
| 0.00 | 2.57 | 0.00 | 4.82 | -13.24 | 247.75 | 73.82 | 255.81 | 0.9655 | 113.0 | 146.0 | |
| 1.63 | 3.68 | 2.18 | 4.92 | -12.05 | 241.33 | 67.39 | 256.35 | 0.9307 | 346.8 | 247.7 | |
| 0.86 | 13.45 | 1.17 | 18.32 | -13.31 | 241.62 | 67.68 | 255.05 | 0.9334 | -584.2 | -324.5 | |
| 7.79 | 522.99 | 11.43 | 726.00 | -15.81 | 242.93 | 68.99 | 252.58 | 0.9429 | -25.1 | -118.3 | |
| 8.65 | -5.00 | 12.33 | -5.00 | -15.36 | 242.34 | 68.41 | 252.97 | 0.9393 | -545.2 | 999999 | |
| 8.57 | -5.00 | 11.68 | -5.00 | -14.44 | 241.41 | 67.47 | 253.82 | 0.9330 | -747.0 | 999999 | |
| 2.83 | -5.00 | 4.08 | -5.00 | -16.26 | 242.49 | 68.55 | 252.04 | 0.9408 | -337.9 | 999999 | |
| 6.77 | -5.00 | 9.13 | -5.00 | -14.74 | 241.19 | 67.26 | 253.47 | 0.9320 | -882.8 | 999999 | |
| 23.64 | -5.00 | 33.57 | -5.00 | -16.93 | 242.06 | 68.13 | 251.27 | 0.9390 | -359.5 | 999999 | |
| 3.60 | -5.00 | 4.74 | -5.00 | -15.46 | 240.47 | 66.53 | 252.59 | 0.9282 | 69.6 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.64 | -13.86 | 239.22 | 65.28 | 254.13 | 0.9186 | 72.0 | 96.8 | |
| 14.73 | -5.00 | 19.95 | -5.00 | -16.77 | 240.96 | 67.03 | 251.27 | 0.9324 | -714.9 | 999999 | |
| 0.00 | 3.34 | 0.00 | 4.57 | -18.27 | 240.96 | 67.03 | 249.68 | 0.9339 | 9.0 | -33.4 | |
| 17.30 | -5.00 | 22.22 | -5.00 | -16.74 | 239.61 | 65.68 | 251.09 | 0.9241 | -920.9 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.83 | -22.65 | 233.23 | 59.30 | 243.36 | 0.8897 | -174.0 | -221.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
