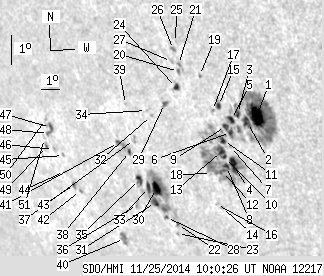

SDO HMI 2014-11-25 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.88 | 410.98 | 69.62 | 347.40 | -18.84 | 122.98 | -50.95 | 114.82 | 0.8107 | 217.0 | 110.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-25 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.39 | 270.83 | 13.67 | 218.68 | -17.80 | 126.04 | -47.89 | 114.61 | 0.7792 | 1065.6 | 303.2 | |
| 4.97 | -1.00 | 3.95 | -1.00 | -18.00 | 125.55 | -48.39 | 114.67 | 0.7848 | 594.8 | 999999 | |
| 2.06 | -1.00 | 1.64 | -1.00 | -17.73 | 125.18 | -48.76 | 114.21 | 0.7876 | 680.7 | 999999 | |
| 8.22 | -1.00 | 6.76 | -1.00 | -19.39 | 124.33 | -49.60 | 115.90 | 0.8009 | 808.4 | 999999 | |
| 3.00 | -1.00 | 2.42 | -1.00 | -17.93 | 124.82 | -49.12 | 114.32 | 0.7917 | 569.4 | 999999 | |
| 1.71 | -1.00 | 1.39 | -1.00 | -18.34 | 124.61 | -49.32 | 114.75 | 0.7950 | 696.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.70 | -18.78 | 124.43 | -49.50 | 115.22 | 0.7980 | 395.0 | 402.6 | |
| 2.40 | -1.00 | 1.99 | -1.00 | -19.42 | 123.97 | -49.96 | 115.82 | 0.8044 | 516.5 | 999999 | |
| 2.31 | -1.00 | 1.88 | -1.00 | -18.15 | 124.44 | -49.49 | 114.46 | 0.7960 | 608.6 | 999999 | |
| 1.20 | -1.00 | 0.99 | -1.00 | -19.14 | 124.00 | -49.94 | 115.49 | 0.8033 | 516.6 | 999999 | |
| 2.40 | -1.00 | 1.97 | -1.00 | -18.60 | 124.17 | -49.77 | 114.91 | 0.8000 | 643.1 | 999999 | |
| 1.63 | -1.00 | 1.36 | -1.00 | -19.59 | 123.71 | -50.23 | 115.92 | 0.8074 | 365.9 | 999999 | |
| 2.91 | -1.00 | 2.41 | -1.00 | -18.95 | 123.93 | -50.01 | 115.24 | 0.8034 | 619.4 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.02 | -20.75 | 123.13 | -50.80 | 117.09 | 0.8162 | 581.0 | 506.1 | |
| 1.88 | 3.94 | 1.53 | 3.20 | -17.50 | 124.35 | -49.58 | 113.64 | 0.7949 | 482.3 | 450.3 | |
| 0.00 | 1.03 | 0.00 | 0.88 | -20.66 | 122.92 | -51.01 | 116.91 | 0.8178 | 368.0 | 298.1 | |
| 0.00 | 1.46 | 0.00 | 1.19 | -17.66 | 124.00 | -49.93 | 113.72 | 0.7988 | 434.0 | 366.7 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -19.67 | 123.13 | -50.81 | 115.81 | 0.8130 | -186.0 | -185.6 | |
| 0.00 | 1.28 | 0.00 | 1.05 | -16.57 | 123.78 | -50.16 | 112.33 | 0.7979 | 498.0 | 428.2 | |
| 0.00 | 2.23 | 0.00 | 1.86 | -16.47 | 122.79 | -51.15 | 111.90 | 0.8072 | 548.0 | 489.2 | |
| 0.00 | 1.46 | 0.00 | 1.21 | -16.25 | 122.87 | -51.07 | 111.66 | 0.8058 | 488.0 | 430.2 | |
| 0.51 | 1.54 | 0.47 | 1.40 | -21.35 | 120.55 | -53.39 | 116.91 | 0.8405 | 309.3 | 365.8 | |
| 0.00 | 1.03 | 0.00 | 0.94 | -21.64 | 120.39 | -53.54 | 117.19 | 0.8427 | 336.0 | 258.6 | |
| 2.31 | 4.20 | 1.95 | 3.54 | -16.98 | 122.50 | -51.44 | 112.42 | 0.8113 | 487.7 | 315.8 | |
| 0.00 | 0.77 | 0.00 | 0.64 | -15.57 | 122.96 | -50.97 | 110.86 | 0.8031 | 455.0 | 390.9 | |
| 0.00 | 2.06 | 0.00 | 1.71 | -15.79 | 122.79 | -51.15 | 111.08 | 0.8054 | 637.0 | 504.8 | |
| 0.00 | 2.06 | 0.00 | 1.72 | -16.17 | 122.55 | -51.38 | 111.46 | 0.8086 | 323.0 | 301.0 | |
| 0.60 | 63.90 | 0.55 | 58.33 | -21.14 | 120.07 | -53.87 | 116.52 | 0.8440 | 268.0 | -372.0 | |
| 1.20 | 3.51 | 1.03 | 3.02 | -17.49 | 121.68 | -52.25 | 112.79 | 0.8202 | 533.6 | 316.9 | |
| 8.48 | -28.00 | 7.74 | -28.00 | -20.21 | 120.01 | -53.92 | 115.44 | 0.8421 | -880.6 | 999999 | |
| 3.68 | -28.00 | 3.40 | -28.00 | -20.67 | 119.72 | -54.21 | 115.87 | 0.8457 | -142.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.98 | -17.89 | 120.85 | -53.09 | 113.00 | 0.8288 | -718.0 | -605.5 | |
| 2.74 | -28.00 | 2.53 | -28.00 | -20.19 | 119.59 | -54.34 | 115.29 | 0.8456 | -558.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.68 | -17.74 | 120.65 | -53.28 | 112.77 | 0.8302 | -621.0 | -571.6 | |
| 3.60 | 7.02 | 3.34 | 6.53 | -19.95 | 119.23 | -54.71 | 114.90 | 0.8480 | -490.4 | -241.2 | |
| 0.00 | 2.31 | 0.00 | 2.19 | -20.75 | 118.68 | -55.25 | 115.66 | 0.8545 | -92.0 | -205.0 | |
| 0.00 | 2.66 | 0.00 | 2.42 | -18.67 | 119.59 | -54.35 | 113.55 | 0.8419 | -555.0 | -508.7 | |
| 1.37 | 8.82 | 1.27 | 8.20 | -19.06 | 119.13 | -54.81 | 113.86 | 0.8467 | -532.4 | -243.5 | |
| 0.00 | 0.60 | 0.00 | 0.54 | -17.57 | 119.61 | -54.32 | 112.28 | 0.8391 | -361.0 | -423.7 | |
| 0.00 | 6.51 | 0.00 | 6.46 | -21.88 | 117.28 | -56.65 | 116.52 | 0.8684 | -662.0 | -470.6 | |
| 1.20 | -38.00 | 1.12 | -38.00 | -18.79 | 118.66 | -55.28 | 113.42 | 0.8501 | 282.3 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.32 | -20.38 | 115.58 | -58.35 | 114.40 | 0.8782 | -488.0 | -462.4 | |
| 0.77 | 2.66 | 0.80 | 2.75 | -20.20 | 115.33 | -58.61 | 114.13 | 0.8798 | -520.4 | -428.4 | |
| 0.00 | 0.69 | 0.00 | 0.71 | -19.80 | 114.96 | -58.97 | 113.59 | 0.8818 | -496.0 | -521.8 | |
| 0.00 | 1.03 | 0.00 | 1.06 | -19.28 | 115.20 | -58.73 | 113.08 | 0.8790 | -512.0 | -532.4 | |
| 0.00 | 0.94 | 0.00 | 0.98 | -19.11 | 114.69 | -59.24 | 112.76 | 0.8825 | -568.0 | -520.0 | |
| 1.97 | 6.42 | 2.03 | 6.65 | -18.41 | 114.91 | -59.02 | 112.04 | 0.8796 | -599.8 | -533.2 | |
| 0.86 | -47.00 | 0.89 | -47.00 | -18.60 | 114.68 | -59.25 | 112.20 | 0.8817 | -681.0 | 999999 | |
| 0.51 | 2.14 | 0.54 | 2.26 | -19.02 | 114.31 | -59.62 | 112.58 | 0.8853 | -343.7 | -400.7 | |
| 0.00 | 1.46 | 0.00 | 1.51 | -18.16 | 114.74 | -59.19 | 111.72 | 0.8805 | -413.0 | -373.5 | |
| 0.00 | 0.26 | 0.00 | 0.27 | -18.77 | 114.34 | -59.60 | 112.30 | 0.8846 | -349.0 | -280.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
