SDO HMI 2014-11-25 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 143.67 | 975.28 | 74.31 | 505.30 | -13.15 | 164.87 | -7.97 | 152.46 | 0.2912 | 394.3 | 264.5 | |
|
previous
or next observation for the same group /

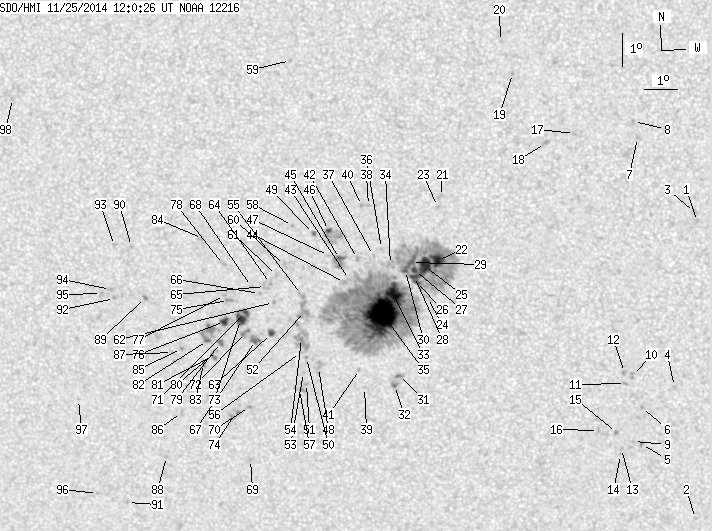

back to the solar disc SDO HMI 2014-11-25 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.97 | 0.00 | 1.00 | -10.69 | 174.75 | 1.91 | 188.75 | 0.2164 | 745.0 | 530.7 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -19.89 | 174.76 | 1.92 | 184.92 | 0.3693 | 380.0 | 378.9 | |
| 0.00 | 3.17 | 0.00 | 1.61 | -10.42 | 174.66 | 1.82 | 188.53 | 0.2115 | 772.0 | 692.9 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -15.75 | 174.08 | 1.24 | 183.99 | 0.3001 | 719.0 | 634.6 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -17.55 | 173.06 | 0.22 | 180.65 | 0.3295 | 856.0 | 757.4 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -16.40 | 173.06 | 0.22 | 180.69 | 0.3103 | 955.0 | 775.1 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -8.16 | 172.95 | 0.11 | 180.62 | 0.1703 | 883.0 | 619.2 | |
| 0.00 | 1.80 | 0.00 | 0.90 | -7.68 | 172.83 | -0.01 | 179.93 | 0.1619 | 910.0 | 772.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.46 | 172.82 | -0.02 | 179.93 | 0.3279 | 924.0 | 755.4 | |
| 0.00 | 2.74 | 0.00 | 1.42 | -15.40 | 172.79 | -0.05 | 179.82 | 0.2937 | 782.0 | 804.5 | |
| 0.00 | 2.14 | 0.00 | 1.11 | -15.65 | 172.57 | -0.27 | 179.13 | 0.2979 | 934.0 | 744.7 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -15.31 | 172.54 | -0.30 | 179.01 | 0.2922 | 1021.0 | 868.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -17.68 | 172.44 | -0.40 | 178.85 | 0.3316 | 1016.0 | 708.3 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -17.86 | 172.41 | -0.43 | 178.77 | 0.3347 | 645.0 | 541.8 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -17.18 | 172.29 | -0.55 | 178.36 | 0.3234 | 1020.0 | 872.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -17.11 | 171.73 | -1.11 | 176.70 | 0.3227 | 894.0 | 749.8 | |
| 0.00 | 1.97 | 0.00 | 0.99 | -8.04 | 171.07 | -1.78 | 169.61 | 0.1709 | 849.0 | 703.5 | |
| 0.00 | 3.08 | 0.00 | 1.55 | -8.34 | 170.20 | -2.65 | 165.17 | 0.1793 | 995.0 | 757.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | -6.24 | 169.23 | -3.61 | 155.32 | 0.1507 | 1073.0 | 804.8 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -5.29 | 168.88 | -3.96 | 150.12 | 0.1388 | 860.0 | 683.5 | |
| 0.00 | 3.43 | 0.00 | 1.74 | -9.94 | 167.02 | -5.82 | 153.43 | 0.2244 | 707.0 | 630.8 | |
| 9.93 | 198.93 | 5.09 | 101.99 | -11.88 | 166.89 | -5.95 | 156.45 | 0.2552 | 1406.7 | 493.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -10.24 | 166.92 | -5.92 | 153.66 | 0.2298 | 808.0 | 714.1 | |
| 0.00 | 3.77 | 0.00 | 1.94 | -13.01 | 166.55 | -6.29 | 157.05 | 0.2749 | 103.0 | 169.7 | |
| 16.53 | -22.00 | 8.48 | -22.00 | -12.06 | 166.49 | -6.35 | 155.36 | 0.2608 | 1271.1 | 999999 | |
| 2.74 | -22.00 | 1.41 | -22.00 | -12.52 | 166.23 | -6.61 | 155.25 | 0.2696 | 892.6 | 999999 | |
| 3.08 | -22.00 | 1.58 | -22.00 | -12.18 | 166.18 | -6.66 | 154.53 | 0.2648 | 1319.6 | 999999 | |
| 3.60 | -22.00 | 1.85 | -22.00 | -12.37 | 166.17 | -6.67 | 154.81 | 0.2676 | 1083.0 | 999999 | |
| 5.31 | -22.00 | 2.72 | -22.00 | -11.94 | 166.09 | -6.75 | 153.83 | 0.2618 | 1158.8 | 999999 | |
| 2.14 | -22.00 | 1.10 | -22.00 | -12.18 | 165.91 | -6.94 | 153.62 | 0.2669 | 1113.3 | 999999 | |
| 0.43 | 3.51 | 0.22 | 1.83 | -15.41 | 165.59 | -7.25 | 157.39 | 0.3180 | 934.0 | 768.1 | |
| 0.51 | 4.11 | 0.27 | 2.15 | -15.72 | 165.45 | -7.39 | 157.40 | 0.3236 | -718.8 | -228.0 | |
| 13.53 | 492.22 | 6.98 | 255.02 | -12.92 | 165.52 | -7.32 | 153.61 | 0.2808 | 1545.1 | 478.5 | |
| 0.00 | 5.31 | 0.00 | 2.73 | -12.00 | 165.45 | -7.39 | 151.83 | 0.2677 | 930.0 | 696.1 | |
| 61.31 | -33.00 | 31.74 | -33.00 | -13.50 | 165.16 | -7.68 | 153.46 | 0.2922 | 1484.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -11.52 | 165.19 | -7.65 | 150.08 | 0.2627 | 463.0 | 473.5 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -11.73 | 164.94 | -7.90 | 149.70 | 0.2679 | 240.0 | 227.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.21 | 164.83 | -8.01 | 146.15 | 0.2473 | -256.0 | -225.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -15.78 | 164.52 | -8.32 | 154.98 | 0.3308 | -912.0 | -696.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.21 | 164.62 | -8.22 | 145.46 | 0.2493 | -812.0 | -698.9 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -15.23 | 164.39 | -8.45 | 153.86 | 0.3235 | 692.0 | 450.8 | |
| 0.00 | 2.74 | 0.00 | 1.41 | -11.82 | 164.45 | -8.39 | 148.36 | 0.2735 | 30.0 | 89.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.46 | 164.18 | -8.66 | 148.80 | 0.2849 | 225.0 | 278.4 | |
| 0.00 | 2.48 | 0.00 | 1.28 | -12.55 | 164.03 | -8.81 | 148.51 | 0.2876 | 247.0 | 299.7 | |
| 1.88 | 13.87 | 0.97 | 7.15 | -11.82 | 163.90 | -8.94 | 146.72 | 0.2785 | -570.7 | -226.3 | |
| 1.46 | 19.61 | 0.75 | 10.09 | -10.97 | 163.59 | -9.25 | 144.02 | 0.2698 | -1100.3 | -380.9 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -11.73 | 163.57 | -9.27 | 145.57 | 0.2804 | -268.0 | -216.9 | |
| 0.00 | 8.39 | 0.00 | 4.40 | -15.17 | 163.12 | -9.72 | 150.49 | 0.3325 | 287.0 | 423.5 | |
| 0.51 | 2.14 | 0.26 | 1.10 | -11.07 | 163.13 | -9.71 | 142.90 | 0.2756 | -870.8 | -723.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -14.86 | 162.76 | -10.08 | 149.11 | 0.3311 | -796.0 | -650.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -15.66 | 162.72 | -10.12 | 150.27 | 0.3428 | -727.0 | -670.7 | |
| 0.00 | 11.30 | 0.00 | 5.89 | -13.45 | 162.76 | -10.08 | 146.70 | 0.3114 | 244.0 | 199.3 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -15.32 | 162.64 | -10.20 | 149.56 | 0.3386 | -779.0 | -633.3 | |
| 0.00 | 26.29 | 0.00 | 13.76 | -14.28 | 162.63 | -10.21 | 147.83 | 0.3241 | -334.0 | -244.1 | |
| 0.00 | 3.77 | 0.00 | 1.96 | -12.93 | 162.69 | -10.15 | 145.55 | 0.3050 | 130.0 | 116.2 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -14.71 | 162.58 | -10.26 | 148.42 | 0.3305 | -595.0 | -376.1 | |
| 0.00 | 4.20 | 0.00 | 2.21 | -15.85 | 162.49 | -10.35 | 150.00 | 0.3473 | -698.0 | -657.3 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -10.83 | 162.50 | -10.34 | 140.60 | 0.2791 | -873.0 | -664.1 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -5.87 | 162.58 | -10.27 | 126.15 | 0.2205 | 831.0 | 595.4 | |
| 0.00 | 2.31 | 0.00 | 1.20 | -12.04 | 162.20 | -10.64 | 142.51 | 0.2979 | -659.0 | -550.1 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -12.35 | 161.95 | -10.90 | 142.48 | 0.3046 | -861.0 | -678.4 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -13.17 | 161.81 | -11.03 | 143.80 | 0.3167 | -825.0 | -722.8 | |
| 2.31 | 3.85 | 1.21 | 2.02 | -14.13 | 161.71 | -11.13 | 145.30 | 0.3304 | -961.9 | -820.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -12.59 | 161.75 | -11.09 | 142.49 | 0.3098 | -886.0 | -789.8 | |
| 0.00 | 4.11 | 0.00 | 2.14 | -12.69 | 161.59 | -11.25 | 142.29 | 0.3126 | -479.0 | -667.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -12.90 | 161.39 | -11.45 | 142.25 | 0.3174 | -789.0 | -578.6 | |
| 2.40 | 8.56 | 1.26 | 4.50 | -14.34 | 161.20 | -11.64 | 144.49 | 0.3382 | -851.2 | -699.2 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -12.69 | 161.16 | -11.68 | 141.25 | 0.3171 | -884.0 | -670.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -18.05 | 160.81 | -12.03 | 149.43 | 0.3914 | -819.0 | -674.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -16.39 | 160.89 | -11.95 | 147.19 | 0.3683 | -820.0 | -757.2 | |
| 2.65 | 16.01 | 1.39 | 8.40 | -13.48 | 160.93 | -11.91 | 142.29 | 0.3296 | -1041.6 | -815.8 | |
| 0.00 | 5.65 | 0.00 | 2.97 | -14.10 | 160.90 | -11.94 | 143.37 | 0.3379 | -1038.0 | -813.6 | |
| 7.28 | -71.00 | 3.82 | -71.00 | -13.70 | 160.76 | -12.08 | 142.32 | 0.3341 | -1079.4 | 999999 | |
| 0.00 | 5.14 | 0.00 | 2.74 | -16.64 | 160.40 | -12.44 | 146.53 | 0.3760 | -370.0 | -816.7 | |
| 0.00 | 2.65 | 0.00 | 1.39 | -13.12 | 160.42 | -12.42 | 140.42 | 0.3302 | -1075.0 | -893.0 | |
| 4.02 | 7.11 | 2.12 | 3.74 | -13.76 | 160.26 | -12.58 | 141.32 | 0.3400 | -1096.4 | -827.9 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -12.97 | 160.30 | -12.54 | 139.86 | 0.3296 | -1031.0 | -732.7 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -12.02 | 160.32 | -12.52 | 137.92 | 0.3178 | -833.0 | -599.9 | |
| 1.11 | 3.94 | 0.59 | 2.08 | -14.41 | 160.10 | -12.74 | 142.17 | 0.3498 | -980.5 | -836.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -14.66 | 159.99 | -12.85 | 142.38 | 0.3541 | -720.0 | -683.4 | |
| 0.00 | 4.02 | 0.00 | 2.13 | -14.81 | 159.85 | -12.99 | 142.37 | 0.3574 | -791.0 | -728.8 | |
| 0.94 | 18.84 | 0.50 | 9.95 | -14.35 | 159.69 | -13.15 | 141.20 | 0.3532 | -929.5 | -802.8 | |
| 0.00 | 2.23 | 0.00 | 1.18 | -15.06 | 159.52 | -13.32 | 142.12 | 0.3639 | -754.0 | -676.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -11.23 | 159.71 | -13.13 | 134.81 | 0.3155 | -959.0 | -844.9 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -14.60 | 158.86 | -13.98 | 139.96 | 0.3650 | -966.0 | -853.3 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -16.59 | 158.72 | -14.12 | 143.08 | 0.3910 | -911.0 | -706.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -14.73 | 158.57 | -14.27 | 139.61 | 0.3696 | -863.0 | -726.8 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -17.97 | 158.13 | -14.71 | 144.12 | 0.4140 | -653.0 | -515.1 | |
| 0.00 | 2.23 | 0.00 | 1.18 | -13.04 | 157.83 | -15.01 | 134.94 | 0.3581 | -1146.0 | -908.4 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -11.49 | 157.48 | -15.36 | 130.98 | 0.3453 | -789.0 | -617.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.43 | 156.72 | -16.12 | 143.80 | 0.4452 | -849.0 | -726.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -13.08 | 156.85 | -15.99 | 133.24 | 0.3700 | -903.0 | -675.4 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -11.46 | 156.95 | -15.89 | 129.98 | 0.3517 | -770.0 | -625.4 | |
| 0.00 | 2.48 | 0.00 | 1.32 | -12.81 | 156.74 | -16.10 | 132.49 | 0.3683 | -934.0 | -687.6 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -12.93 | 156.45 | -16.39 | 132.24 | 0.3731 | -788.0 | -611.5 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -19.15 | 155.77 | -17.07 | 141.85 | 0.4508 | -685.0 | -563.0 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -16.20 | 155.45 | -17.39 | 136.69 | 0.4202 | -701.0 | -441.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -7.06 | 153.98 | -18.86 | 114.90 | 0.3553 | -540.0 | -485.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
