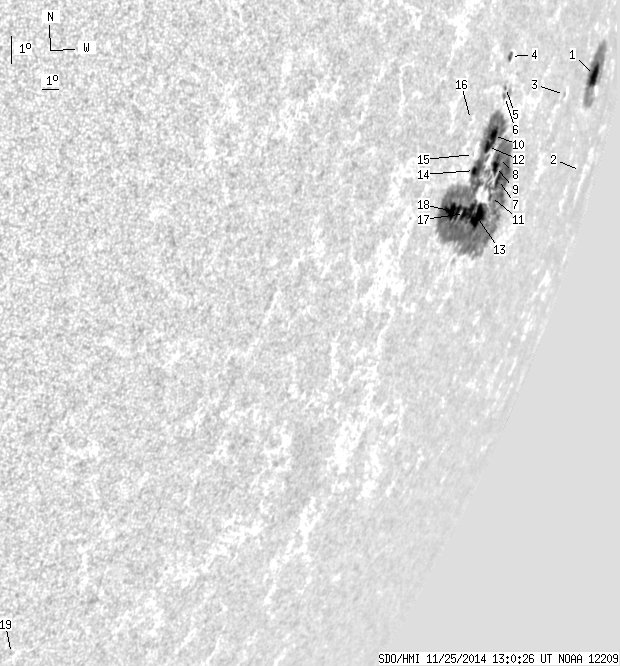

SDO HMI 2014-11-25 13:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.98 | 573.02 | 165.90 | 955.71 | -15.42 | 243.54 | 71.25 | 253.19 | 0.9523 | -331.2 | -61.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-25 13:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.47 | 67.99 | 32.58 | 195.33 | -12.88 | 251.60 | 79.31 | 256.62 | 0.9854 | 430.5 | 69.5 | |
| 0.00 | 2.83 | 0.00 | 10.05 | -15.85 | 253.53 | 81.24 | 253.75 | 0.9910 | 102.0 | 134.8 | |
| 0.00 | 1.80 | 0.00 | 3.76 | -13.35 | 247.82 | 75.52 | 255.85 | 0.9727 | 160.0 | 140.9 | |
| 1.97 | 3.34 | 2.84 | 4.82 | -12.01 | 241.38 | 69.09 | 256.60 | 0.9408 | 237.7 | 163.5 | |
| 0.00 | 1.71 | 0.00 | 2.50 | -12.96 | 241.50 | 69.21 | 255.61 | 0.9421 | -340.0 | -342.5 | |
| 0.86 | 2.23 | 1.25 | 3.26 | -13.24 | 241.59 | 69.30 | 255.33 | 0.9428 | -497.9 | -438.8 | |
| 6.85 | 491.40 | 10.88 | 734.20 | -15.82 | 242.90 | 70.61 | 252.77 | 0.9515 | 56.8 | -99.8 | |
| 4.02 | -7.00 | 6.17 | -7.00 | -15.13 | 242.36 | 70.06 | 253.43 | 0.9482 | -470.5 | 999999 | |
| 5.74 | -7.00 | 8.82 | -7.00 | -15.40 | 242.29 | 70.00 | 253.13 | 0.9481 | -468.3 | 999999 | |
| 9.16 | -7.00 | 13.43 | -7.00 | -14.43 | 241.41 | 69.12 | 254.05 | 0.9426 | -762.4 | 999999 | |
| 1.80 | -7.00 | 2.82 | -7.00 | -16.34 | 242.58 | 70.28 | 252.19 | 0.9502 | -186.6 | 999999 | |
| 5.74 | -7.00 | 8.33 | -7.00 | -14.76 | 241.12 | 68.82 | 253.66 | 0.9412 | -816.5 | 999999 | |
| 25.77 | -7.00 | 38.94 | -7.00 | -16.91 | 241.77 | 69.48 | 251.49 | 0.9464 | -487.6 | 999999 | |
| 3.51 | -7.00 | 4.96 | -7.00 | -15.48 | 240.51 | 68.22 | 252.82 | 0.9383 | 70.6 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.36 | -14.97 | 240.09 | 67.79 | 253.29 | 0.9354 | -233.0 | -216.0 | |
| 0.00 | 0.26 | 0.00 | 0.34 | -13.87 | 239.16 | 66.87 | 254.34 | 0.9288 | 49.0 | 107.3 | |
| 6.68 | -7.00 | 9.59 | -7.00 | -16.81 | 240.65 | 68.36 | 251.43 | 0.9402 | -609.1 | 999999 | |
| 18.41 | -7.00 | 25.29 | -7.00 | -16.72 | 239.58 | 67.29 | 251.37 | 0.9339 | -872.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.09 | -30.71 | 221.85 | 49.55 | 231.20 | 0.8417 | -231.0 | -260.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
