SDO HMI 2014-11-25 16:01:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.61 | 510.94 | 164.89 | 928.04 | -15.44 | 243.34 | 72.71 | 253.34 | 0.9593 | -336.9 | -60.3 | |
|
previous
or next observation for the same group /

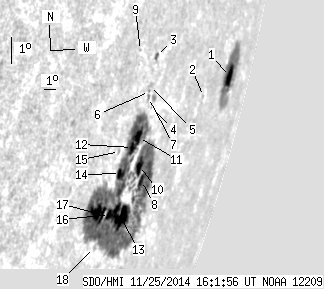

back to the solar disc SDO HMI 2014-11-25 16:01:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.10 | 57.09 | 33.78 | 193.39 | -12.88 | 251.51 | 80.88 | 256.72 | 0.9896 | 93.3 | 51.4 | |
| 0.00 | 0.60 | 0.00 | 1.43 | -13.39 | 247.85 | 77.23 | 255.95 | 0.9790 | 148.0 | 133.6 | |
| 1.03 | 3.08 | 1.62 | 4.85 | -11.99 | 241.46 | 70.83 | 256.81 | 0.9504 | 240.9 | 134.2 | |
| 0.00 | 0.26 | 0.00 | 0.42 | -13.56 | 242.04 | 71.41 | 255.23 | 0.9542 | -166.0 | -161.3 | |
| 0.00 | 2.57 | 0.00 | 4.06 | -12.87 | 241.46 | 70.84 | 255.88 | 0.9509 | -165.0 | -102.5 | |
| 0.00 | 1.20 | 0.00 | 1.89 | -13.06 | 241.49 | 70.86 | 255.70 | 0.9512 | -457.0 | -394.9 | |
| 0.00 | 1.80 | 0.00 | 2.85 | -13.24 | 241.52 | 70.90 | 255.51 | 0.9514 | -444.0 | -398.0 | |
| 4.19 | 440.48 | 7.26 | 713.40 | -15.83 | 242.87 | 72.24 | 252.96 | 0.9596 | 172.0 | -88.4 | |
| 0.00 | 0.86 | 0.00 | 1.24 | -11.76 | 239.89 | 69.26 | 256.88 | 0.9416 | 180.0 | 167.3 | |
| 9.42 | -8.00 | 15.73 | -8.00 | -15.35 | 242.25 | 71.62 | 253.39 | 0.9563 | -309.8 | 999999 | |
| 5.99 | -8.00 | 9.54 | -8.00 | -14.46 | 241.46 | 70.83 | 254.22 | 0.9518 | -543.4 | 999999 | |
| 5.31 | -8.00 | 8.33 | -8.00 | -14.76 | 241.12 | 70.49 | 253.87 | 0.9502 | -747.8 | 999999 | |
| 26.36 | -8.00 | 43.28 | -8.00 | -16.91 | 241.75 | 71.12 | 251.70 | 0.9548 | -366.7 | 999999 | |
| 6.68 | -8.00 | 10.29 | -8.00 | -15.55 | 240.61 | 69.98 | 252.98 | 0.9481 | -198.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 2.03 | -14.85 | 240.01 | 69.38 | 253.63 | 0.9443 | -423.0 | -380.7 | |
| 4.96 | -8.00 | 7.70 | -8.00 | -16.82 | 240.63 | 70.00 | 251.65 | 0.9491 | -629.9 | 999999 | |
| 18.57 | -8.00 | 27.36 | -8.00 | -16.76 | 239.51 | 68.88 | 251.56 | 0.9430 | -823.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 2.48 | -17.83 | 240.13 | 69.51 | 250.52 | 0.9473 | -127.0 | -123.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
