SDO HMI 2014-11-25 19:13:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.64 | 403.05 | 67.60 | 309.50 | -18.82 | 122.62 | -46.25 | 116.52 | 0.7650 | 162.6 | 130.7 | |
|
previous
or next observation for the same group /

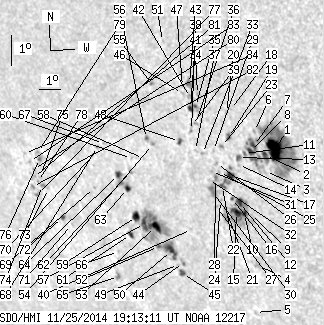

back to the solar disc SDO HMI 2014-11-25 19:13:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.25 | 143.70 | 15.95 | 103.11 | -17.77 | 126.15 | -42.72 | 116.66 | 0.7252 | 1080.2 | 513.9 | |
| 2.91 | -1.00 | 2.10 | -1.00 | -17.96 | 125.71 | -43.16 | 116.71 | 0.7308 | 691.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.06 | -18.47 | 125.55 | -43.32 | 117.29 | 0.7345 | 22.0 | 111.5 | |
| 0.00 | 2.74 | 0.00 | 2.09 | -21.49 | 124.13 | -44.74 | 120.40 | 0.7618 | 247.0 | 282.4 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -23.02 | 123.40 | -45.47 | 121.92 | 0.7753 | 420.0 | 318.4 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -17.22 | 125.46 | -43.40 | 115.64 | 0.7304 | 434.0 | 393.0 | |
| 2.48 | -1.00 | 1.80 | -1.00 | -17.66 | 125.29 | -43.58 | 116.13 | 0.7340 | 791.3 | 999999 | |
| 2.74 | -1.00 | 2.00 | -1.00 | -17.85 | 125.10 | -43.77 | 116.30 | 0.7368 | 716.0 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.22 | -19.85 | 124.43 | -44.44 | 118.53 | 0.7519 | 563.0 | 426.1 | |
| 2.05 | 42.02 | 1.54 | 31.72 | -19.82 | 124.17 | -44.69 | 118.38 | 0.7544 | 780.3 | 277.5 | |
| 0.00 | 1.80 | 0.00 | 1.32 | -17.92 | 124.82 | -44.05 | 116.26 | 0.7400 | 548.0 | 405.7 | |
| 3.85 | -10.00 | 2.89 | -10.00 | -19.48 | 124.07 | -44.79 | 117.90 | 0.7540 | 921.4 | 999999 | |
| 1.03 | 3.17 | 0.76 | 2.34 | -18.05 | 124.51 | -44.35 | 116.30 | 0.7438 | 692.4 | 514.9 | |
| 0.00 | 1.28 | 0.00 | 0.95 | -18.27 | 124.44 | -44.43 | 116.55 | 0.7454 | 396.0 | 359.7 | |
| 5.31 | -10.00 | 4.01 | -10.00 | -19.80 | 123.82 | -45.04 | 118.20 | 0.7578 | 663.9 | 999999 | |
| 0.51 | 1.45 | 0.39 | 1.10 | -19.36 | 123.81 | -45.06 | 117.64 | 0.7562 | 433.0 | 378.1 | |
| 3.42 | 13.95 | 2.56 | 10.47 | -18.63 | 123.97 | -44.90 | 116.79 | 0.7516 | 772.5 | 518.4 | |
| 0.00 | 0.51 | 0.00 | 0.37 | -16.55 | 124.63 | -44.24 | 114.42 | 0.7368 | -387.0 | -299.7 | |
| 1.20 | 2.82 | 0.88 | 2.09 | -17.43 | 124.27 | -44.59 | 115.40 | 0.7439 | 735.2 | 595.3 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -16.65 | 124.43 | -44.44 | 114.46 | 0.7393 | 217.0 | 216.2 | |
| 0.00 | 1.20 | 0.00 | 0.91 | -19.68 | 123.37 | -45.49 | 117.85 | 0.7618 | 254.0 | 154.6 | |
| 1.20 | -17.00 | 0.91 | -17.00 | -18.98 | 123.49 | -45.38 | 117.04 | 0.7579 | 506.6 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.34 | -17.72 | 123.87 | -44.99 | 115.61 | 0.7492 | 623.0 | 522.9 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -19.43 | 123.24 | -45.63 | 117.49 | 0.7622 | 297.0 | 238.6 | |
| 0.00 | 1.11 | 0.00 | 0.84 | -18.54 | 123.51 | -45.36 | 116.49 | 0.7560 | 226.0 | 148.5 | |
| 0.00 | 1.63 | 0.00 | 1.22 | -18.26 | 123.47 | -45.39 | 116.12 | 0.7554 | 103.0 | 103.0 | |
| 0.00 | 1.37 | 0.00 | 1.05 | -19.63 | 122.99 | -45.88 | 117.62 | 0.7655 | -214.0 | -197.6 | |
| 0.00 | 3.77 | 0.00 | 2.86 | -18.77 | 123.25 | -45.61 | 116.67 | 0.7595 | -92.0 | -76.0 | |
| 0.00 | 0.68 | 0.00 | 0.51 | -17.85 | 123.48 | -45.39 | 115.61 | 0.7538 | 466.0 | 374.5 | |
| 0.00 | 5.99 | 0.00 | 4.58 | -19.15 | 122.98 | -45.89 | 117.03 | 0.7637 | -329.0 | -261.3 | |
| 0.00 | 0.86 | 0.00 | 0.65 | -18.52 | 123.16 | -45.71 | 116.32 | 0.7595 | -240.0 | -231.6 | |
| 0.00 | 0.60 | 0.00 | 0.46 | -18.77 | 122.94 | -45.93 | 116.55 | 0.7628 | 161.0 | 150.0 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -17.96 | 122.95 | -45.92 | 115.53 | 0.7596 | -439.0 | -388.6 | |
| 0.00 | 1.20 | 0.00 | 0.89 | -16.11 | 123.32 | -45.55 | 113.34 | 0.7493 | 739.0 | 665.9 | |
| 0.51 | 7.36 | 0.38 | 5.53 | -16.49 | 123.11 | -45.75 | 113.74 | 0.7527 | 736.5 | 577.8 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -17.02 | 122.95 | -45.92 | 114.35 | 0.7563 | 667.0 | 551.1 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -17.87 | 122.67 | -46.20 | 115.31 | 0.7622 | -258.0 | -153.2 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -17.24 | 122.69 | -46.17 | 114.54 | 0.7597 | 430.0 | 357.7 | |
| 0.00 | 1.11 | 0.00 | 0.84 | -17.08 | 122.75 | -46.12 | 114.36 | 0.7587 | 385.0 | 323.1 | |
| 0.00 | 0.86 | 0.00 | 0.68 | -20.39 | 121.54 | -47.33 | 117.95 | 0.7825 | 332.0 | 289.6 | |
| 1.80 | -35.00 | 1.35 | -35.00 | -16.55 | 122.87 | -46.00 | 113.73 | 0.7555 | 527.3 | 999999 | |
| 0.00 | 2.82 | 0.00 | 2.12 | -16.21 | 122.98 | -45.89 | 113.34 | 0.7532 | 671.0 | 534.5 | |
| 0.00 | 5.48 | 0.00 | 4.09 | -15.77 | 123.06 | -45.81 | 112.81 | 0.7509 | 727.0 | 599.8 | |
| 0.00 | 2.57 | 0.00 | 2.08 | -21.46 | 120.71 | -48.16 | 118.90 | 0.7943 | 663.0 | 524.8 | |
| 1.97 | 3.77 | 1.61 | 3.08 | -21.82 | 120.50 | -48.37 | 119.24 | 0.7975 | 558.2 | 381.9 | |
| 0.00 | 1.28 | 0.00 | 0.97 | -16.09 | 122.65 | -46.21 | 113.07 | 0.7562 | 188.0 | 147.9 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -15.87 | 122.72 | -46.15 | 112.81 | 0.7548 | 142.0 | 166.7 | |
| 1.28 | 3.08 | 0.99 | 2.37 | -17.60 | 122.03 | -46.84 | 114.73 | 0.7678 | 463.7 | 381.8 | |
| 0.00 | 1.28 | 0.00 | 1.05 | -21.53 | 120.43 | -48.43 | 118.88 | 0.7971 | 385.0 | 396.2 | |
| 7.02 | 17.03 | 5.73 | 13.92 | -21.08 | 120.30 | -48.57 | 118.30 | 0.7968 | -78.7 | -250.8 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -14.49 | 122.23 | -46.64 | 110.88 | 0.7557 | 618.0 | 512.1 | |
| 0.77 | -50.00 | 0.63 | -50.00 | -20.97 | 119.72 | -49.15 | 117.94 | 0.8017 | 28.2 | 999999 | |
| 5.99 | 57.69 | 4.90 | 47.37 | -20.33 | 119.85 | -49.01 | 117.23 | 0.7983 | -996.3 | -532.4 | |
| 0.00 | 1.54 | 0.00 | 1.22 | -17.72 | 120.74 | -48.12 | 114.40 | 0.7811 | -686.0 | -621.2 | |
| 0.00 | 1.71 | 0.00 | 1.32 | -15.81 | 121.34 | -47.53 | 112.24 | 0.7691 | -633.0 | -483.2 | |
| 0.43 | 2.23 | 0.34 | 1.76 | -17.54 | 120.53 | -48.34 | 114.10 | 0.7827 | -698.2 | -599.1 | |
| 4.88 | -53.00 | 4.03 | -53.00 | -20.24 | 119.36 | -49.51 | 116.94 | 0.8027 | -711.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -18.17 | 120.15 | -48.71 | 114.74 | 0.7884 | -658.0 | -601.3 | |
| 4.71 | -53.00 | 3.91 | -53.00 | -20.03 | 119.06 | -49.81 | 116.58 | 0.8047 | -531.6 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.42 | -18.18 | 119.57 | -49.29 | 114.55 | 0.7941 | -530.0 | -501.8 | |
| 1.97 | 3.94 | 1.66 | 3.32 | -20.61 | 118.50 | -50.37 | 117.07 | 0.8117 | -547.3 | -402.3 | |
| 0.00 | 1.80 | 0.00 | 1.47 | -18.60 | 119.36 | -49.50 | 114.98 | 0.7974 | -567.0 | -502.0 | |
| 2.31 | 13.18 | 1.91 | 10.91 | -19.14 | 119.00 | -49.87 | 115.50 | 0.8025 | -695.6 | -280.2 | |
| 2.31 | -63.00 | 1.91 | -63.00 | -18.70 | 118.74 | -50.13 | 114.89 | 0.8037 | 481.1 | 999999 | |
| 0.60 | 3.17 | 0.53 | 2.78 | -21.99 | 117.22 | -51.64 | 118.21 | 0.8274 | -582.7 | -446.4 | |
| 0.00 | 0.77 | 0.00 | 0.67 | -21.17 | 117.63 | -51.24 | 117.42 | 0.8213 | -568.0 | -494.3 | |
| 0.00 | 0.60 | 0.00 | 0.50 | -17.74 | 118.39 | -50.48 | 113.62 | 0.8041 | 474.0 | 382.9 | |
| 0.00 | 1.20 | 0.00 | 1.00 | -17.84 | 118.05 | -50.81 | 113.63 | 0.8076 | 425.0 | 428.2 | |
| 0.00 | 0.68 | 0.00 | 0.59 | -19.15 | 117.35 | -51.51 | 114.95 | 0.8178 | -466.0 | -378.6 | |
| 0.00 | 1.03 | 0.00 | 0.87 | -18.13 | 117.69 | -51.18 | 113.86 | 0.8119 | 344.0 | 343.2 | |
| 0.00 | 0.51 | 0.00 | 0.46 | -20.36 | 115.59 | -53.28 | 115.80 | 0.8368 | -635.0 | -576.5 | |
| 1.37 | 2.48 | 1.24 | 2.25 | -20.14 | 115.22 | -53.65 | 115.43 | 0.8394 | -677.9 | -534.2 | |
| 0.00 | 1.11 | 0.00 | 1.01 | -19.23 | 114.92 | -53.95 | 114.29 | 0.8397 | -573.0 | -443.5 | |
| 0.00 | 1.97 | 0.00 | 1.79 | -19.14 | 114.64 | -54.23 | 114.11 | 0.8419 | -772.0 | -631.1 | |
| 0.00 | 0.34 | 0.00 | 0.31 | -18.83 | 114.69 | -54.18 | 113.76 | 0.8407 | -514.0 | -437.2 | |
| 0.77 | 2.48 | 0.69 | 2.24 | -18.29 | 114.88 | -53.98 | 113.19 | 0.8377 | -723.0 | -616.0 | |
| 0.00 | 1.63 | 0.00 | 1.50 | -19.44 | 114.22 | -54.64 | 114.33 | 0.8462 | -498.0 | -404.3 | |
| 0.00 | 0.77 | 0.00 | 0.71 | -19.02 | 114.43 | -54.44 | 113.91 | 0.8434 | -589.0 | -531.0 | |
| 0.00 | 1.63 | 0.00 | 1.47 | -18.10 | 114.86 | -54.00 | 112.97 | 0.8374 | -618.0 | -443.8 | |
| 0.00 | 0.86 | 0.00 | 0.78 | -18.64 | 114.39 | -54.47 | 113.47 | 0.8428 | -571.0 | -517.4 | |
| 0.00 | 2.48 | 0.00 | 2.28 | -18.90 | 114.27 | -54.60 | 113.72 | 0.8445 | -580.0 | -453.1 | |
| 0.00 | 1.71 | 0.00 | 1.58 | -19.19 | 114.07 | -54.79 | 114.00 | 0.8468 | -384.0 | -312.9 | |
| 0.00 | 1.20 | 0.00 | 1.10 | -18.40 | 114.30 | -54.57 | 113.15 | 0.8430 | -576.0 | -432.0 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -18.15 | 114.14 | -54.72 | 112.82 | 0.8438 | -405.0 | -418.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
