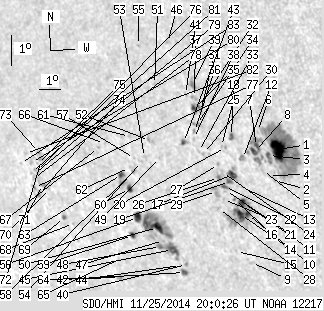

SDO HMI 2014-11-25 20:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.03 | 403.29 | 61.79 | 307.20 | -18.76 | 122.61 | -45.83 | 116.63 | 0.7604 | 160.4 | 119.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-25 20:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.20 | 147.90 | 14.37 | 105.32 | -17.76 | 126.18 | -42.25 | 116.86 | 0.7201 | 1107.0 | 522.1 | |
| 0.00 | 1.03 | 0.00 | 0.74 | -18.75 | 125.71 | -42.72 | 117.92 | 0.7294 | 395.0 | 282.9 | |
| 1.37 | -1.00 | 0.98 | -1.00 | -17.96 | 125.70 | -42.73 | 116.90 | 0.7262 | 750.1 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.50 | -18.59 | 125.50 | -42.93 | 117.62 | 0.7309 | 156.0 | 147.2 | |
| 0.00 | 1.28 | 0.00 | 0.93 | -18.44 | 125.29 | -43.14 | 117.33 | 0.7325 | 255.0 | 265.9 | |
| 0.00 | 1.11 | 0.00 | 0.80 | -17.21 | 125.45 | -42.98 | 115.82 | 0.7257 | 481.0 | 399.7 | |
| 2.57 | -1.00 | 1.85 | -1.00 | -17.69 | 125.27 | -43.16 | 116.35 | 0.7296 | 792.9 | 999999 | |
| 2.82 | -1.00 | 2.05 | -1.00 | -17.85 | 125.14 | -43.30 | 116.49 | 0.7317 | 703.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.17 | -21.39 | 123.77 | -44.66 | 120.32 | 0.7606 | 462.0 | 394.9 | |
| 2.14 | 43.99 | 1.60 | 32.99 | -19.85 | 124.17 | -44.26 | 118.60 | 0.7501 | 818.4 | 254.8 | |
| 3.85 | -10.00 | 2.87 | -10.00 | -19.47 | 124.08 | -44.35 | 118.09 | 0.7494 | 912.5 | 999999 | |
| 0.00 | 3.68 | 0.00 | 2.69 | -18.08 | 124.55 | -43.89 | 116.53 | 0.7389 | 829.0 | 534.8 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -19.00 | 124.24 | -44.19 | 117.56 | 0.7458 | 682.0 | 573.4 | |
| 4.96 | -10.00 | 3.72 | -10.00 | -19.86 | 123.86 | -44.58 | 118.47 | 0.7533 | 687.4 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.52 | -21.05 | 123.23 | -45.20 | 119.66 | 0.7644 | 356.0 | 312.2 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -19.38 | 123.76 | -44.67 | 117.84 | 0.7523 | 498.0 | 447.4 | |
| 4.28 | 15.92 | 3.18 | 11.86 | -18.59 | 123.94 | -44.49 | 116.92 | 0.7473 | 739.6 | 518.6 | |
| 1.45 | 3.00 | 1.07 | 2.19 | -17.39 | 124.28 | -44.15 | 115.54 | 0.7390 | 711.0 | 534.4 | |
| 1.45 | -17.00 | 1.09 | -17.00 | -18.82 | 123.73 | -44.70 | 117.11 | 0.7503 | 601.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -17.74 | 123.91 | -44.52 | 115.83 | 0.7443 | 636.0 | 555.5 | |
| 0.00 | 1.54 | 0.00 | 1.16 | -19.11 | 123.46 | -44.97 | 117.36 | 0.7543 | 313.0 | 321.1 | |
| 1.37 | -17.00 | 1.03 | -17.00 | -18.98 | 123.46 | -44.98 | 117.20 | 0.7538 | 491.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -19.39 | 123.27 | -45.17 | 117.64 | 0.7574 | 422.0 | 302.5 | |
| 0.00 | 1.80 | 0.00 | 1.34 | -18.54 | 123.52 | -44.91 | 116.67 | 0.7514 | 194.0 | 113.1 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -17.72 | 123.75 | -44.69 | 115.73 | 0.7459 | 533.0 | 456.9 | |
| 0.60 | 2.57 | 0.45 | 1.93 | -18.70 | 123.29 | -45.14 | 116.78 | 0.7545 | -354.1 | -140.8 | |
| 0.00 | 1.11 | 0.00 | 0.83 | -18.29 | 123.43 | -45.01 | 116.32 | 0.7514 | 225.0 | 188.5 | |
| 0.00 | 1.71 | 0.00 | 1.30 | -19.69 | 122.93 | -45.50 | 117.86 | 0.7619 | -252.0 | -187.1 | |
| 0.00 | 6.42 | 0.00 | 4.86 | -19.15 | 123.04 | -45.39 | 117.23 | 0.7587 | -166.0 | -150.9 | |
| 0.00 | 1.11 | 0.00 | 0.84 | -17.95 | 122.87 | -45.56 | 115.67 | 0.7559 | -339.0 | -387.8 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -16.64 | 123.16 | -45.27 | 114.11 | 0.7481 | 718.0 | 623.3 | |
| 0.68 | 5.14 | 0.51 | 3.83 | -16.48 | 123.12 | -45.31 | 113.90 | 0.7480 | 783.1 | 528.3 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -17.89 | 122.67 | -45.76 | 115.51 | 0.7578 | -370.0 | -338.8 | |
| 0.00 | 3.08 | 0.00 | 2.31 | -17.05 | 122.86 | -45.58 | 114.52 | 0.7528 | 545.0 | 432.5 | |
| 2.05 | -32.00 | 1.53 | -32.00 | -16.55 | 122.92 | -45.51 | 113.91 | 0.7503 | 537.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.16 | -17.27 | 122.70 | -45.74 | 114.74 | 0.7553 | 553.0 | 415.1 | |
| 0.00 | 2.91 | 0.00 | 2.16 | -16.20 | 123.03 | -45.41 | 113.51 | 0.7480 | 688.0 | 536.7 | |
| 0.00 | 1.37 | 0.00 | 1.03 | -17.49 | 122.58 | -45.85 | 114.97 | 0.7573 | 450.0 | 358.1 | |
| 0.00 | 5.22 | 0.00 | 3.87 | -15.77 | 123.07 | -45.37 | 112.97 | 0.7461 | 723.0 | 598.6 | |
| 0.00 | 1.71 | 0.00 | 1.38 | -21.52 | 120.72 | -47.71 | 119.15 | 0.7903 | 826.0 | 585.0 | |
| 0.00 | 1.28 | 0.00 | 0.96 | -16.12 | 122.65 | -45.78 | 113.26 | 0.7517 | 208.0 | 147.4 | |
| 2.05 | 3.42 | 1.66 | 2.77 | -21.78 | 120.51 | -47.92 | 119.38 | 0.7933 | 604.1 | 404.6 | |
| 1.28 | 3.42 | 0.98 | 2.61 | -17.62 | 122.08 | -46.35 | 114.94 | 0.7628 | 510.3 | 431.8 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -21.56 | 120.42 | -48.02 | 119.08 | 0.7933 | 372.0 | 330.3 | |
| 6.68 | 18.14 | 5.40 | 14.71 | -21.05 | 120.26 | -48.17 | 118.41 | 0.7929 | -156.1 | -201.4 | |
| 0.00 | 1.37 | 0.00 | 1.02 | -14.52 | 122.32 | -46.12 | 111.08 | 0.7501 | 549.0 | 479.3 | |
| 0.00 | 1.03 | 0.00 | 0.83 | -20.77 | 119.95 | -48.48 | 117.95 | 0.7948 | -506.0 | -516.2 | |
| 1.37 | -45.00 | 1.12 | -45.00 | -20.96 | 119.72 | -48.71 | 118.09 | 0.7977 | -105.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -18.12 | 120.81 | -47.62 | 115.08 | 0.7774 | -629.0 | -560.8 | |
| 7.19 | 52.04 | 5.83 | 42.34 | -20.35 | 119.84 | -48.59 | 117.41 | 0.7944 | -991.7 | -581.7 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -15.83 | 121.35 | -47.08 | 112.42 | 0.7645 | -628.0 | -537.9 | |
| 0.00 | 3.51 | 0.00 | 2.76 | -17.59 | 120.54 | -47.89 | 114.33 | 0.7784 | -550.0 | -609.0 | |
| 0.00 | 1.37 | 0.00 | 1.09 | -18.14 | 120.11 | -48.33 | 114.83 | 0.7845 | -681.0 | -578.9 | |
| 0.00 | 0.68 | 0.00 | 0.55 | -18.26 | 119.92 | -48.52 | 114.92 | 0.7868 | -574.0 | -499.0 | |
| 0.00 | 0.60 | 0.00 | 0.46 | -14.64 | 120.98 | -47.45 | 110.79 | 0.7647 | 381.0 | 335.7 | |
| 4.96 | -50.00 | 4.09 | -50.00 | -20.05 | 119.00 | -49.43 | 116.74 | 0.8013 | -505.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -18.18 | 119.62 | -48.81 | 114.71 | 0.7894 | -547.0 | -472.1 | |
| 0.00 | 1.97 | 0.00 | 1.59 | -18.59 | 119.41 | -49.02 | 115.14 | 0.7927 | -585.0 | -515.1 | |
| 1.88 | 3.59 | 1.57 | 3.00 | -20.64 | 118.50 | -49.93 | 117.25 | 0.8079 | -514.5 | -355.0 | |
| 2.57 | 13.35 | 2.10 | 10.95 | -19.13 | 119.00 | -49.43 | 115.65 | 0.7984 | -680.7 | -294.7 | |
| 0.00 | 1.11 | 0.00 | 0.89 | -17.49 | 119.64 | -48.80 | 113.88 | 0.7870 | -575.0 | -441.5 | |
| 0.00 | 0.43 | 0.00 | 0.35 | -18.47 | 119.27 | -49.17 | 114.94 | 0.7937 | -401.0 | -318.0 | |
| 2.23 | -60.00 | 1.82 | -60.00 | -18.70 | 118.79 | -49.64 | 115.05 | 0.7990 | 481.0 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.94 | -22.01 | 117.18 | -51.25 | 118.38 | 0.8240 | -632.0 | -450.0 | |
| 0.00 | 1.03 | 0.00 | 0.88 | -21.43 | 117.42 | -51.01 | 117.79 | 0.8201 | -602.0 | -505.5 | |
| 0.00 | 0.94 | 0.00 | 0.77 | -17.73 | 118.34 | -50.09 | 113.74 | 0.8004 | 493.0 | 349.7 | |
| 0.00 | 0.86 | 0.00 | 0.71 | -17.87 | 118.00 | -50.43 | 113.78 | 0.8041 | 566.0 | 481.0 | |
| 0.00 | 0.77 | 0.00 | 0.68 | -20.32 | 115.65 | -52.78 | 115.90 | 0.8324 | -677.0 | -617.8 | |
| 1.03 | 2.05 | 0.92 | 1.84 | -20.14 | 115.26 | -53.17 | 115.57 | 0.8353 | -717.0 | -583.8 | |
| 0.00 | 0.68 | 0.00 | 0.61 | -19.23 | 114.91 | -53.52 | 114.41 | 0.8359 | -560.0 | -480.6 | |
| 0.00 | 3.08 | 0.00 | 2.78 | -19.11 | 114.60 | -53.84 | 114.18 | 0.8384 | -753.0 | -609.7 | |
| 0.00 | 2.23 | 0.00 | 1.98 | -18.31 | 114.91 | -53.52 | 113.35 | 0.8336 | -728.0 | -666.3 | |
| 0.00 | 1.28 | 0.00 | 1.14 | -18.09 | 114.91 | -53.53 | 113.10 | 0.8331 | -491.0 | -479.6 | |
| 0.00 | 3.08 | 0.00 | 2.81 | -19.43 | 114.22 | -54.21 | 114.44 | 0.8424 | -533.0 | -388.6 | |
| 0.00 | 0.77 | 0.00 | 0.69 | -18.44 | 114.64 | -53.79 | 113.43 | 0.8364 | -491.0 | -486.6 | |
| 0.00 | 2.48 | 0.00 | 2.24 | -18.70 | 114.47 | -53.96 | 113.67 | 0.8385 | -578.0 | -508.6 | |
| 0.00 | 1.54 | 0.00 | 1.41 | -19.21 | 114.11 | -54.32 | 114.16 | 0.8428 | -331.0 | -310.6 | |
| 0.00 | 0.94 | 0.00 | 0.86 | -18.93 | 114.20 | -54.23 | 113.86 | 0.8414 | -435.0 | -394.5 | |
| 0.00 | 1.03 | 0.00 | 0.93 | -18.80 | 114.26 | -54.17 | 113.73 | 0.8405 | -507.0 | -386.8 | |
| 0.00 | 1.37 | 0.00 | 1.24 | -18.42 | 114.33 | -54.10 | 113.31 | 0.8390 | -526.0 | -413.9 | |
| 0.00 | 0.60 | 0.00 | 0.55 | -18.74 | 114.18 | -54.25 | 113.63 | 0.8411 | -316.0 | -292.1 | |
| 0.00 | 1.20 | 0.00 | 1.09 | -18.14 | 114.14 | -54.29 | 112.93 | 0.8400 | -477.0 | -395.9 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -18.46 | 113.72 | -54.71 | 113.19 | 0.8444 | -226.0 | -208.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
