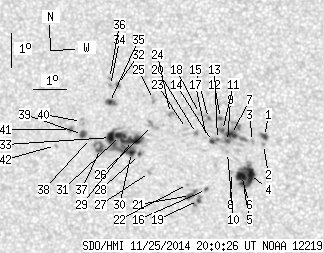

SDO HMI 2014-11-25 20:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.13 | 224.76 | 42.29 | 113.12 | 4.27 | 158.75 | -9.68 | 74.10 | 0.1754 | -73.2 | -44.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-25 20:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.57 | 4.02 | 1.28 | 2.01 | 4.50 | 161.50 | -6.93 | 66.94 | 0.1313 | -1115.9 | -797.9 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 4.26 | 161.47 | -6.96 | 68.71 | 0.1303 | -1123.0 | -944.3 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 4.35 | 161.14 | -7.29 | 68.97 | 0.1361 | -1066.0 | -766.3 | |
| 12.58 | 32.61 | 6.29 | 16.30 | 3.37 | 161.06 | -7.37 | 76.14 | 0.1325 | -1262.4 | -679.1 | |
| 3.17 | -4.00 | 1.58 | -4.00 | 3.08 | 160.88 | -7.55 | 78.60 | 0.1344 | -991.8 | 999999 | |
| 9.41 | -4.00 | 4.71 | -4.00 | 3.34 | 160.82 | -7.61 | 76.76 | 0.1364 | -958.7 | 999999 | |
| 5.82 | 44.42 | 2.91 | 22.25 | 4.56 | 160.51 | -7.92 | 69.16 | 0.1476 | -1276.2 | -685.9 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 3.43 | 160.52 | -7.91 | 76.63 | 0.1418 | -614.0 | -512.9 | |
| 1.45 | -7.00 | 0.73 | -7.00 | 4.35 | 160.40 | -8.03 | 70.76 | 0.1483 | 164.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 4.02 | 160.40 | -8.03 | 72.87 | 0.1465 | 670.0 | 507.4 | |
| 0.94 | -7.00 | 0.47 | -7.00 | 4.67 | 160.24 | -8.19 | 69.06 | 0.1527 | -1049.5 | 999999 | |
| 0.94 | -7.00 | 0.47 | -7.00 | 5.03 | 160.18 | -8.25 | 67.06 | 0.1560 | -1034.4 | 999999 | |
| 0.51 | -7.00 | 0.26 | -7.00 | 4.41 | 160.10 | -8.34 | 71.03 | 0.1536 | -499.7 | 999999 | |
| 1.80 | -7.00 | 0.90 | -7.00 | 4.35 | 159.95 | -8.48 | 71.70 | 0.1557 | 493.0 | 999999 | |
| 0.51 | 4.19 | 0.26 | 2.10 | 5.03 | 159.82 | -8.61 | 67.91 | 0.1617 | -1104.5 | -865.3 | |
| 0.60 | 1.88 | 0.30 | 0.94 | 2.93 | 159.78 | -8.65 | 80.97 | 0.1528 | -867.4 | -670.4 | |
| 0.00 | 0.68 | 0.00 | 0.34 | 4.46 | 159.77 | -8.67 | 71.34 | 0.1593 | -429.0 | -277.2 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 5.18 | 159.55 | -8.88 | 67.69 | 0.1670 | -777.0 | -607.7 | |
| 1.11 | 4.62 | 0.56 | 2.32 | 2.60 | 159.54 | -8.89 | 83.27 | 0.1562 | -1176.5 | -924.5 | |
| 0.00 | 2.48 | 0.00 | 1.25 | 4.58 | 159.46 | -8.97 | 71.23 | 0.1649 | -1038.0 | -743.4 | |
| 3.34 | 6.85 | 1.67 | 3.44 | 2.75 | 159.30 | -9.13 | 82.52 | 0.1606 | -1011.7 | -751.2 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 3.07 | 159.21 | -9.22 | 80.61 | 0.1630 | -827.0 | -555.4 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 4.73 | 159.16 | -9.27 | 70.97 | 0.1706 | -542.0 | -269.2 | |
| 0.00 | 2.31 | 0.00 | 1.16 | 5.17 | 158.67 | -9.76 | 69.49 | 0.1810 | -856.0 | -712.2 | |
| 0.00 | 2.40 | 0.00 | 1.21 | 5.59 | 158.15 | -10.28 | 68.38 | 0.1919 | -943.0 | -772.4 | |
| 0.00 | 5.31 | 0.00 | 2.68 | 4.81 | 158.14 | -10.29 | 72.27 | 0.1878 | 727.0 | 452.1 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 3.42 | 158.06 | -10.37 | 79.69 | 0.1835 | 762.0 | 626.2 | |
| 0.94 | 76.94 | 0.47 | 38.90 | 3.95 | 157.76 | -10.68 | 77.20 | 0.1904 | 924.8 | 546.6 | |
| 11.73 | -28.00 | 5.92 | -28.00 | 4.37 | 157.54 | -10.89 | 75.36 | 0.1956 | 1303.7 | 999999 | |
| 2.74 | -28.00 | 1.38 | -28.00 | 4.01 | 157.51 | -10.92 | 77.17 | 0.1947 | -833.2 | 999999 | |
| 6.85 | -28.00 | 3.46 | -28.00 | 4.51 | 157.17 | -11.26 | 75.09 | 0.2023 | 1246.2 | 999999 | |
| 0.86 | 3.00 | 0.43 | 1.52 | 6.03 | 157.06 | -11.37 | 68.28 | 0.2121 | 1037.6 | 816.0 | |
| 6.68 | -28.00 | 3.38 | -28.00 | 4.45 | 156.87 | -11.56 | 75.74 | 0.2071 | 1103.8 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 6.00 | 156.85 | -11.59 | 68.76 | 0.2153 | 1132.0 | 914.0 | |
| 2.05 | 5.82 | 1.04 | 2.95 | 5.49 | 156.82 | -11.61 | 71.03 | 0.2127 | 1137.3 | 974.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 6.20 | 156.81 | -11.62 | 67.92 | 0.2171 | 960.0 | 747.5 | |
| 3.68 | -28.00 | 1.86 | -28.00 | 4.13 | 156.57 | -11.86 | 77.58 | 0.2108 | 1075.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 4.42 | 156.27 | -12.16 | 76.54 | 0.2170 | 890.0 | 757.4 | |
| 2.91 | 4.45 | 1.48 | 2.26 | 4.54 | 156.02 | -12.41 | 76.27 | 0.2215 | 1054.0 | 800.7 | |
| 0.00 | 3.94 | 0.00 | 2.00 | 4.92 | 155.98 | -12.45 | 74.62 | 0.2237 | 703.0 | 726.0 | |
| 0.94 | 2.23 | 0.48 | 1.13 | 4.69 | 155.65 | -12.78 | 76.00 | 0.2282 | 993.2 | 814.5 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 4.21 | 155.21 | -13.23 | 78.43 | 0.2340 | 870.0 | 661.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
