SDO HMI 2014-11-25 21:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.06 | 412.80 | 143.26 | 890.38 | -15.50 | 243.23 | 75.36 | 253.58 | 0.9706 | -286.8 | -66.5 | |
|
previous
or next observation for the same group /

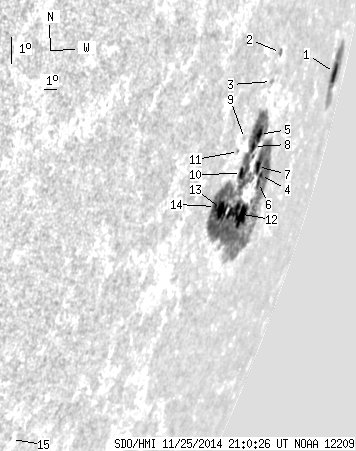

back to the solar disc SDO HMI 2014-11-25 21:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.13 | 38.94 | 37.90 | 187.11 | -12.83 | 251.17 | 83.30 | 256.91 | 0.9947 | 153.9 | 113.6 | |
| 0.00 | 2.57 | 0.00 | 4.79 | -11.96 | 241.72 | 73.85 | 257.14 | 0.9651 | 280.0 | 202.3 | |
| 0.00 | 1.97 | 0.00 | 3.62 | -12.83 | 241.40 | 73.52 | 256.20 | 0.9640 | -275.0 | -228.1 | |
| 1.37 | 366.24 | 2.80 | 689.85 | -15.76 | 242.81 | 74.93 | 253.33 | 0.9712 | 205.7 | -111.6 | |
| 3.94 | -4.00 | 7.31 | -4.00 | -14.46 | 241.44 | 73.56 | 254.53 | 0.9649 | -655.1 | 999999 | |
| 1.54 | -4.00 | 3.14 | -4.00 | -15.97 | 242.80 | 74.92 | 253.11 | 0.9713 | 26.3 | 999999 | |
| 4.96 | -4.00 | 9.72 | -4.00 | -15.46 | 242.15 | 74.28 | 253.57 | 0.9684 | -372.8 | 999999 | |
| 3.94 | -4.00 | 7.17 | -4.00 | -14.82 | 241.10 | 73.22 | 254.12 | 0.9635 | -711.5 | 999999 | |
| 0.00 | 1.46 | 0.00 | 2.47 | -14.54 | 239.93 | 72.05 | 254.29 | 0.9579 | -293.0 | -261.0 | |
| 5.14 | -4.00 | 9.14 | -4.00 | -15.63 | 240.56 | 72.68 | 253.22 | 0.9615 | -227.0 | 999999 | |
| 0.00 | 1.28 | 0.00 | 2.15 | -14.93 | 239.64 | 71.77 | 253.85 | 0.9568 | -464.0 | -374.9 | |
| 26.62 | -4.00 | 50.23 | -4.00 | -16.89 | 241.35 | 73.47 | 252.01 | 0.9657 | -370.0 | 999999 | |
| 9.16 | -4.00 | 15.43 | -4.00 | -16.72 | 239.50 | 71.62 | 251.97 | 0.9571 | -824.7 | 999999 | |
| 0.26 | -4.00 | 0.42 | -4.00 | -16.61 | 238.82 | 70.94 | 252.00 | 0.9537 | -942.0 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.39 | -23.73 | 228.73 | 60.85 | 242.59 | 0.9024 | -314.0 | -314.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
