SDO HMI 2014-11-25 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.11 | 406.54 | 63.76 | 304.69 | -18.84 | 122.43 | -44.90 | 117.11 | 0.7512 | 178.7 | 130.7 | |
|
previous
or next observation for the same group /

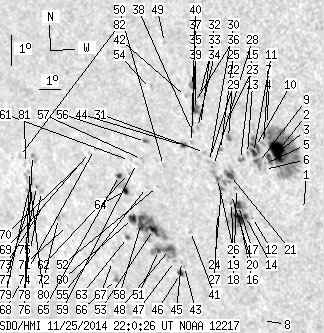

back to the solar disc SDO HMI 2014-11-25 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.24 | -19.61 | 126.69 | -40.63 | 120.05 | 0.7111 | -341.0 | -343.8 | |
| 19.86 | 118.21 | 13.89 | 82.44 | -17.79 | 126.15 | -41.17 | 117.40 | 0.7084 | 1090.0 | 542.8 | |
| 3.51 | -2.00 | 2.47 | -2.00 | -18.01 | 125.75 | -41.57 | 117.50 | 0.7138 | 629.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.84 | -16.95 | 125.97 | -41.35 | 116.20 | 0.7067 | 230.0 | 188.5 | |
| 0.00 | 1.03 | 0.00 | 0.73 | -18.17 | 125.54 | -41.79 | 117.61 | 0.7168 | 498.0 | 384.4 | |
| 0.00 | 1.37 | 0.00 | 0.97 | -18.36 | 125.44 | -41.88 | 117.81 | 0.7187 | 103.0 | 121.9 | |
| 0.00 | 1.80 | 0.00 | 1.27 | -17.55 | 125.64 | -41.69 | 116.83 | 0.7130 | 557.0 | 530.4 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -23.23 | 123.63 | -43.70 | 123.00 | 0.7594 | 332.0 | 326.7 | |
| 0.00 | 6.59 | 0.00 | 4.69 | -18.15 | 125.25 | -42.07 | 117.44 | 0.7198 | 591.0 | 564.2 | |
| 3.25 | 13.61 | 2.30 | 9.65 | -17.65 | 125.28 | -42.05 | 116.79 | 0.7174 | 767.8 | 589.2 | |
| 2.57 | -10.00 | 1.83 | -10.00 | -17.84 | 125.14 | -42.19 | 116.98 | 0.7197 | 667.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -19.90 | 124.44 | -42.89 | 119.30 | 0.7361 | 503.0 | 479.0 | |
| 0.00 | 1.28 | 0.00 | 0.92 | -17.87 | 124.87 | -42.45 | 116.90 | 0.7227 | 458.0 | 366.4 | |
| 2.14 | 41.86 | 1.57 | 30.82 | -19.87 | 124.15 | -43.18 | 119.12 | 0.7390 | 789.0 | 287.9 | |
| 0.00 | 2.40 | 0.00 | 1.72 | -18.07 | 124.52 | -42.81 | 116.99 | 0.7274 | 724.0 | 563.8 | |
| 5.65 | -14.00 | 4.16 | -14.00 | -19.94 | 123.86 | -43.46 | 119.08 | 0.7423 | 657.7 | 999999 | |
| 3.77 | -14.00 | 2.76 | -14.00 | -19.53 | 123.96 | -43.37 | 118.60 | 0.7394 | 937.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.19 | -18.99 | 124.05 | -43.27 | 117.96 | 0.7362 | 662.0 | 568.1 | |
| 0.00 | 1.28 | 0.00 | 0.94 | -19.44 | 123.69 | -43.64 | 118.36 | 0.7419 | 474.0 | 441.1 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -19.18 | 123.77 | -43.55 | 118.08 | 0.7399 | 518.0 | 424.5 | |
| 3.17 | 20.63 | 2.31 | 15.11 | -18.58 | 123.93 | -43.40 | 117.38 | 0.7358 | 842.6 | 264.4 | |
| 1.20 | 2.57 | 0.86 | 1.85 | -17.38 | 124.21 | -43.11 | 115.97 | 0.7278 | 758.7 | 582.5 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -16.76 | 124.39 | -42.93 | 115.23 | 0.7234 | 376.0 | 346.9 | |
| 0.60 | 2.48 | 0.44 | 1.83 | -19.00 | 123.40 | -43.93 | 117.68 | 0.7431 | 509.1 | 430.4 | |
| 0.00 | 1.46 | 0.00 | 1.06 | -17.77 | 123.75 | -43.57 | 116.26 | 0.7343 | 661.0 | 584.0 | |
| 0.86 | -21.00 | 0.63 | -21.00 | -18.69 | 123.33 | -44.00 | 117.25 | 0.7425 | -326.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -19.80 | 122.95 | -44.38 | 118.48 | 0.7510 | -41.0 | -4.8 | |
| 0.00 | 3.17 | 0.00 | 2.33 | -18.28 | 123.29 | -44.04 | 116.71 | 0.7413 | 12.0 | -8.1 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -18.00 | 123.25 | -44.08 | 116.34 | 0.7406 | 343.0 | 180.7 | |
| 0.00 | 1.28 | 0.00 | 0.95 | -18.16 | 123.15 | -44.17 | 116.50 | 0.7422 | -233.0 | -188.7 | |
| 0.00 | 1.80 | 0.00 | 1.32 | -17.88 | 123.02 | -44.30 | 116.09 | 0.7424 | 281.0 | 79.9 | |
| 0.00 | 1.11 | 0.00 | 0.81 | -17.00 | 123.12 | -44.20 | 115.00 | 0.7380 | 662.0 | 521.6 | |
| 0.00 | 1.20 | 0.00 | 0.87 | -16.09 | 123.34 | -43.98 | 113.92 | 0.7323 | 501.0 | 577.1 | |
| 0.00 | 1.63 | 0.00 | 1.19 | -17.10 | 122.96 | -44.36 | 115.06 | 0.7401 | 438.0 | 457.9 | |
| 3.51 | 8.13 | 2.56 | 5.94 | -16.53 | 123.04 | -44.28 | 114.37 | 0.7371 | 775.9 | 617.1 | |
| 0.00 | 3.68 | 0.00 | 2.68 | -16.32 | 123.06 | -44.26 | 114.10 | 0.7361 | 732.0 | 492.8 | |
| 0.00 | 4.37 | 0.00 | 3.17 | -15.82 | 123.12 | -44.21 | 113.47 | 0.7337 | 781.0 | 626.2 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -17.23 | 122.71 | -44.62 | 115.12 | 0.7433 | 384.0 | 358.0 | |
| 0.00 | 1.20 | 0.00 | 0.88 | -16.94 | 122.79 | -44.53 | 114.80 | 0.7414 | 276.0 | 271.8 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -17.57 | 122.55 | -44.77 | 115.50 | 0.7463 | 379.0 | 396.4 | |
| 0.00 | 1.28 | 0.00 | 0.99 | -20.40 | 121.51 | -45.81 | 118.59 | 0.7678 | 424.0 | 345.8 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -16.14 | 122.73 | -44.60 | 113.73 | 0.7391 | 318.0 | 245.7 | |
| 0.00 | 0.60 | 0.00 | 0.47 | -21.54 | 120.78 | -46.55 | 119.65 | 0.7793 | 352.0 | 443.4 | |
| 1.80 | 4.11 | 1.34 | 3.07 | -17.67 | 122.17 | -45.16 | 115.47 | 0.7507 | 606.4 | 376.5 | |
| 0.00 | 1.20 | 0.00 | 0.94 | -21.38 | 120.71 | -46.62 | 119.43 | 0.7794 | 204.0 | 262.9 | |
| 2.14 | 3.68 | 1.69 | 2.92 | -21.77 | 120.49 | -46.83 | 119.81 | 0.7829 | 537.7 | 397.4 | |
| 0.00 | 1.20 | 0.00 | 0.95 | -21.39 | 120.38 | -46.95 | 119.30 | 0.7826 | 490.0 | 391.6 | |
| 4.88 | 24.57 | 3.86 | 19.53 | -21.00 | 120.30 | -47.02 | 118.81 | 0.7818 | -401.1 | -233.4 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -14.48 | 122.27 | -45.05 | 111.40 | 0.7384 | 551.0 | 497.6 | |
| 0.00 | 1.46 | 0.00 | 1.11 | -18.32 | 121.05 | -46.27 | 115.84 | 0.7645 | -593.0 | -491.4 | |
| 1.97 | -48.00 | 1.57 | -48.00 | -21.05 | 119.77 | -47.56 | 118.64 | 0.7870 | -222.4 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.53 | -19.00 | 120.54 | -46.79 | 116.46 | 0.7721 | -317.0 | -353.1 | |
| 3.94 | 53.75 | 3.13 | 42.89 | -20.37 | 119.81 | -47.51 | 117.85 | 0.7842 | -1064.1 | -555.0 | |
| 0.00 | 0.51 | 0.00 | 0.39 | -15.92 | 121.25 | -46.07 | 112.88 | 0.7541 | -493.0 | -394.5 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -19.04 | 120.01 | -47.31 | 116.31 | 0.7775 | -601.0 | -533.8 | |
| 0.77 | 1.97 | 0.59 | 1.52 | -17.58 | 120.49 | -46.83 | 114.70 | 0.7676 | -759.4 | -642.1 | |
| 0.00 | 2.23 | 0.00 | 1.73 | -18.15 | 120.15 | -47.17 | 115.28 | 0.7730 | -557.0 | -495.5 | |
| 7.62 | -53.00 | 6.10 | -53.00 | -20.16 | 119.34 | -47.99 | 117.41 | 0.7880 | -814.3 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -18.29 | 119.83 | -47.50 | 115.32 | 0.7767 | -591.0 | -582.7 | |
| 4.37 | -53.00 | 3.52 | -53.00 | -20.04 | 118.96 | -48.37 | 117.12 | 0.7912 | -562.6 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -18.20 | 119.54 | -47.79 | 115.10 | 0.7793 | -595.0 | -549.8 | |
| 0.00 | 0.43 | 0.00 | 0.34 | -18.61 | 119.34 | -47.99 | 115.53 | 0.7827 | -548.0 | -465.0 | |
| 1.03 | 2.57 | 0.84 | 2.10 | -20.66 | 118.46 | -48.87 | 117.66 | 0.7980 | -573.0 | -502.3 | |
| 2.74 | 15.66 | 2.19 | 12.54 | -19.15 | 118.99 | -48.34 | 116.06 | 0.7879 | -611.6 | -306.8 | |
| 1.88 | -64.00 | 1.51 | -64.00 | -18.68 | 118.89 | -48.44 | 115.45 | 0.7873 | 436.3 | 999999 | |
| 0.60 | 3.51 | 0.51 | 2.97 | -22.03 | 117.28 | -50.04 | 118.83 | 0.8134 | -475.7 | -311.5 | |
| 0.00 | 0.86 | 0.00 | 0.72 | -21.45 | 117.36 | -49.96 | 118.19 | 0.8107 | -394.0 | -369.6 | |
| 0.00 | 0.43 | 0.00 | 0.35 | -17.88 | 118.00 | -49.33 | 114.17 | 0.7934 | 566.0 | 536.2 | |
| 0.00 | 0.68 | 0.00 | 0.56 | -17.98 | 117.72 | -49.60 | 114.20 | 0.7964 | 270.0 | 328.9 | |
| 0.00 | 1.37 | 0.00 | 1.13 | -18.34 | 117.14 | -50.18 | 114.43 | 0.8030 | 469.0 | 282.1 | |
| 0.00 | 0.60 | 0.00 | 0.52 | -20.34 | 115.62 | -51.71 | 116.27 | 0.8229 | -482.0 | -487.6 | |
| 0.00 | 1.63 | 0.00 | 1.42 | -20.12 | 115.26 | -52.07 | 115.90 | 0.8255 | -612.0 | -576.3 | |
| 0.00 | 0.94 | 0.00 | 0.83 | -19.72 | 114.67 | -52.65 | 115.25 | 0.8296 | -534.0 | -481.0 | |
| 0.00 | 1.88 | 0.00 | 1.65 | -19.28 | 114.78 | -52.55 | 114.76 | 0.8275 | -674.0 | -575.6 | |
| 0.34 | 1.28 | 0.30 | 1.13 | -19.12 | 114.59 | -52.74 | 114.53 | 0.8287 | -662.2 | -584.2 | |
| 0.43 | 3.77 | 0.37 | 3.27 | -18.14 | 114.82 | -52.51 | 113.45 | 0.8241 | -544.6 | -557.4 | |
| 0.00 | 2.40 | 0.00 | 2.14 | -19.45 | 114.17 | -53.15 | 114.78 | 0.8332 | -536.0 | -364.0 | |
| 0.00 | 6.42 | 0.00 | 5.68 | -18.91 | 114.32 | -53.00 | 114.19 | 0.8305 | -683.0 | -502.2 | |
| 0.51 | 2.05 | 0.46 | 1.83 | -19.26 | 114.10 | -53.22 | 114.54 | 0.8334 | -392.5 | -372.8 | |
| 0.00 | 1.28 | 0.00 | 1.13 | -18.66 | 114.38 | -52.94 | 113.92 | 0.8293 | -461.0 | -471.3 | |
| 0.00 | 1.37 | 0.00 | 1.21 | -18.40 | 114.34 | -52.98 | 113.61 | 0.8291 | -316.0 | -404.2 | |
| 0.00 | 1.37 | 0.00 | 1.21 | -18.19 | 114.12 | -53.20 | 113.30 | 0.8305 | -447.0 | -380.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
