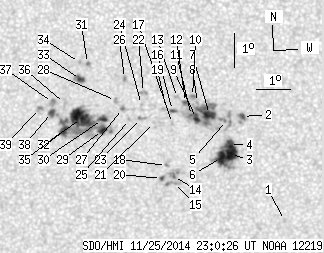

SDO HMI 2014-11-25 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.50 | 293.92 | 48.86 | 147.25 | 4.28 | 158.87 | -7.90 | 70.33 | 0.1464 | -18.7 | -35.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-25 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.59 | 1.44 | 162.98 | -3.80 | 91.75 | 0.0665 | 881.0 | 703.6 | |
| 1.80 | 3.68 | 0.90 | 1.83 | 4.51 | 161.72 | -5.05 | 59.52 | 0.1023 | -1088.7 | -913.9 | |
| 13.01 | 44.08 | 6.48 | 21.95 | 3.39 | 161.37 | -5.40 | 71.16 | 0.0998 | -1306.8 | -649.0 | |
| 6.25 | -3.00 | 3.11 | -3.00 | 3.68 | 161.34 | -5.43 | 68.50 | 0.1021 | -1099.9 | 999999 | |
| 0.00 | 10.61 | 0.00 | 5.29 | 4.39 | 161.25 | -5.53 | 62.68 | 0.1086 | -735.0 | -844.4 | |
| 11.47 | -3.00 | 5.71 | -3.00 | 3.30 | 161.10 | -5.67 | 72.80 | 0.1038 | -1052.8 | 999999 | |
| 7.96 | 64.54 | 3.97 | 32.21 | 4.57 | 160.74 | -6.04 | 63.29 | 0.1179 | -1204.0 | -332.5 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 4.93 | 160.38 | -6.40 | 62.04 | 0.1263 | -954.0 | -788.2 | |
| 4.19 | -7.00 | 2.09 | -7.00 | 4.45 | 160.35 | -6.42 | 65.56 | 0.1231 | 347.8 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 5.10 | 160.23 | -6.55 | 61.36 | 0.1300 | -978.0 | -859.1 | |
| 0.26 | -7.00 | 0.13 | -7.00 | 4.54 | 160.20 | -6.57 | 65.41 | 0.1261 | -748.7 | 999999 | |
| 1.46 | -7.00 | 0.73 | -7.00 | 4.92 | 160.02 | -6.76 | 63.30 | 0.1318 | -1020.9 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 5.07 | 159.78 | -7.00 | 63.11 | 0.1367 | -642.0 | -576.9 | |
| 0.51 | 7.79 | 0.26 | 3.89 | 2.73 | 159.67 | -7.10 | 80.46 | 0.1258 | -1215.3 | -703.8 | |
| 0.00 | 5.31 | 0.00 | 2.65 | 2.53 | 159.68 | -7.10 | 82.09 | 0.1252 | -1115.0 | -880.8 | |
| 1.03 | -7.00 | 0.51 | -7.00 | 4.69 | 159.63 | -7.14 | 66.14 | 0.1361 | -902.7 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 4.30 | 159.63 | -7.14 | 68.78 | 0.1336 | 802.0 | 578.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 3.06 | 159.46 | -7.31 | 78.25 | 0.1304 | -792.0 | -570.6 | |
| 0.00 | 3.08 | 0.00 | 1.54 | 4.72 | 159.45 | -7.32 | 66.46 | 0.1392 | -766.0 | -547.7 | |
| 1.20 | 2.23 | 0.60 | 1.11 | 2.67 | 159.32 | -7.46 | 81.35 | 0.1317 | -896.1 | -724.4 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 4.33 | 159.10 | -7.68 | 69.94 | 0.1425 | 635.0 | 492.0 | |
| 0.00 | 3.25 | 0.00 | 1.63 | 5.22 | 158.76 | -8.02 | 65.21 | 0.1537 | -872.0 | -756.6 | |
| 0.00 | 2.65 | 0.00 | 1.33 | 4.45 | 158.71 | -8.07 | 70.08 | 0.1495 | 971.0 | 790.8 | |
| 0.00 | 0.68 | 0.00 | 0.34 | 4.86 | 158.70 | -8.07 | 67.51 | 0.1521 | -737.0 | -500.4 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 4.42 | 158.35 | -8.43 | 71.04 | 0.1552 | 593.0 | 462.1 | |
| 0.00 | 2.05 | 0.00 | 1.03 | 5.63 | 158.18 | -8.59 | 64.36 | 0.1657 | -997.0 | -782.2 | |
| 0.51 | 1.63 | 0.26 | 0.82 | 4.74 | 158.13 | -8.64 | 69.53 | 0.1606 | 167.8 | 309.2 | |
| 0.00 | 2.23 | 0.00 | 1.12 | 4.98 | 157.92 | -8.85 | 68.62 | 0.1654 | 889.0 | 695.9 | |
| 4.45 | 106.83 | 2.24 | 53.77 | 4.09 | 157.54 | -9.23 | 74.45 | 0.1669 | -745.4 | 490.6 | |
| 3.85 | -29.00 | 1.94 | -29.00 | 4.42 | 157.54 | -9.24 | 72.58 | 0.1685 | 1083.4 | 999999 | |
| 0.34 | 1.88 | 0.17 | 0.95 | 6.07 | 157.06 | -9.71 | 64.75 | 0.1864 | 1029.0 | 792.2 | |
| 27.31 | -29.00 | 13.75 | -29.00 | 4.44 | 156.90 | -9.87 | 73.46 | 0.1791 | 1263.8 | 999999 | |
| 3.51 | 6.51 | 1.77 | 3.28 | 5.60 | 156.86 | -9.92 | 67.53 | 0.1863 | 1151.7 | 819.6 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 6.10 | 156.82 | -9.96 | 65.14 | 0.1903 | 1079.0 | 782.9 | |
| 5.31 | -29.00 | 2.68 | -29.00 | 4.09 | 156.40 | -10.38 | 76.07 | 0.1860 | 1057.1 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.25 | 4.89 | 156.38 | -10.39 | 71.96 | 0.1898 | 779.0 | 611.5 | |
| 0.00 | 4.11 | 0.00 | 2.07 | 4.91 | 156.02 | -10.75 | 72.38 | 0.1959 | 898.0 | 814.2 | |
| 3.08 | -29.00 | 1.56 | -29.00 | 4.62 | 156.00 | -10.78 | 73.88 | 0.1949 | 1039.5 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.43 | 4.73 | 155.63 | -11.14 | 73.80 | 0.2015 | 1033.0 | 810.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
