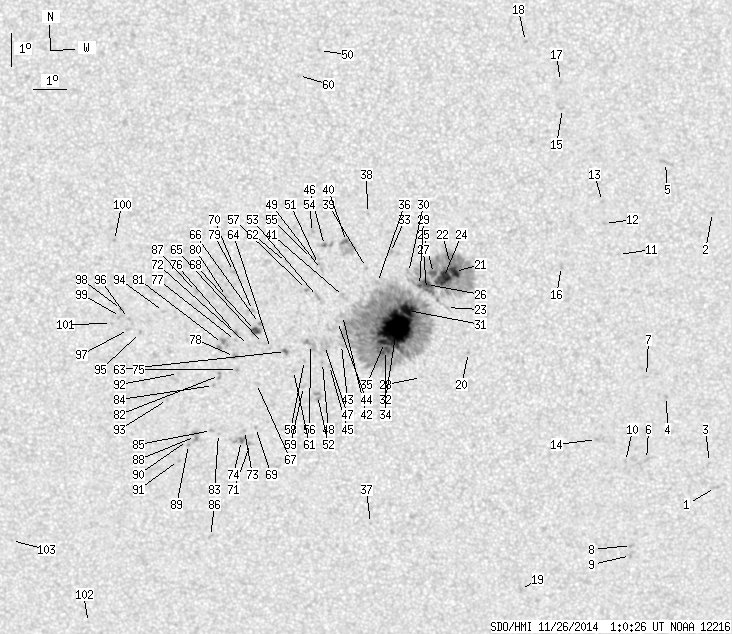

SDO HMI 2014-11-26 01:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.53 | 874.18 | 67.89 | 448.56 | -13.30 | 164.95 | -0.72 | 177.62 | 0.2606 | 431.9 | 299.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 01:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.74 | 0.00 | 1.46 | -18.54 | 175.10 | 9.43 | 204.37 | 0.3783 | 738.0 | 553.8 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -10.08 | 174.67 | 9.00 | 217.45 | 0.2544 | 748.0 | 519.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -17.76 | 174.87 | 9.20 | 204.76 | 0.3652 | 688.0 | 529.2 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -15.69 | 173.44 | 7.77 | 203.73 | 0.3248 | 772.0 | 620.7 | |
| 0.00 | 4.88 | 0.00 | 2.48 | -8.56 | 173.21 | 7.54 | 216.52 | 0.2190 | 888.0 | 666.7 | |
| 0.00 | 2.23 | 0.00 | 1.18 | -17.65 | 172.89 | 7.22 | 200.03 | 0.3513 | 698.0 | 614.0 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -15.07 | 172.80 | 7.13 | 202.75 | 0.3112 | 646.0 | 570.7 | |
| 0.00 | 2.14 | 0.00 | 1.15 | -20.37 | 172.53 | 6.86 | 196.71 | 0.3911 | 886.0 | 725.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -20.69 | 172.51 | 6.84 | 196.42 | 0.3959 | 784.0 | 691.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -17.71 | 172.24 | 6.57 | 198.29 | 0.3487 | 832.0 | 666.6 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -11.33 | 171.84 | 6.17 | 205.34 | 0.2475 | 872.0 | 555.6 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -10.39 | 171.40 | 5.73 | 205.42 | 0.2299 | 744.0 | 580.2 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -9.73 | 171.33 | 5.66 | 206.46 | 0.2191 | 852.0 | 619.6 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -17.02 | 171.31 | 5.64 | 196.45 | 0.3333 | 735.0 | 561.7 | |
| 0.00 | 1.71 | 0.00 | 0.86 | -6.93 | 170.10 | 4.43 | 207.49 | 0.1668 | 853.0 | 652.8 | |
| 0.00 | 2.31 | 0.00 | 1.18 | -11.69 | 170.12 | 4.45 | 198.37 | 0.2422 | 805.0 | 660.7 | |
| 0.00 | 1.46 | 0.00 | 0.73 | -6.12 | 170.03 | 4.36 | 209.55 | 0.1540 | 693.0 | 580.4 | |
| 0.00 | 1.03 | 0.00 | 0.51 | -4.93 | 168.98 | 3.31 | 207.06 | 0.1271 | 920.0 | 784.1 | |
| 0.00 | 2.83 | 0.00 | 1.53 | -21.77 | 169.04 | 3.37 | 187.86 | 0.4011 | 942.0 | 537.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -14.31 | 167.32 | 1.65 | 185.84 | 0.2758 | 684.0 | 558.7 | |
| 7.11 | 668.65 | 3.62 | 342.41 | -11.84 | 166.89 | 1.21 | 185.13 | 0.2333 | 1356.9 | 497.3 | |
| 1.63 | -21.00 | 0.83 | -21.00 | -11.62 | 166.76 | 1.09 | 184.69 | 0.2295 | 1124.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -12.93 | 166.65 | 0.98 | 183.80 | 0.2516 | 641.0 | 432.8 | |
| 14.47 | -21.00 | 7.37 | -21.00 | -12.02 | 166.55 | 0.88 | 183.68 | 0.2360 | 1331.1 | 999999 | |
| 2.91 | -21.00 | 1.48 | -21.00 | -11.89 | 166.25 | 0.58 | 182.44 | 0.2336 | 1238.2 | 999999 | |
| 5.22 | -21.00 | 2.66 | -21.00 | -12.23 | 166.04 | 0.37 | 181.51 | 0.2392 | 1301.3 | 999999 | |
| 0.68 | -21.00 | 0.35 | -21.00 | -12.38 | 166.04 | 0.37 | 181.50 | 0.2418 | 1158.0 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -15.08 | 165.89 | 0.22 | 180.73 | 0.2874 | 767.0 | 609.2 | |
| 1.28 | -21.00 | 0.66 | -21.00 | -12.26 | 165.83 | 0.16 | 180.64 | 0.2396 | 1158.3 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.39 | -11.86 | 165.50 | -0.18 | 179.26 | 0.2329 | 888.0 | 627.3 | |
| 13.36 | -21.00 | 6.83 | -21.00 | -13.02 | 165.46 | -0.21 | 179.19 | 0.2526 | 1508.3 | 999999 | |
| 68.75 | -21.00 | 35.27 | -21.00 | -13.57 | 165.13 | -0.54 | 177.97 | 0.2621 | 1556.4 | 999999 | |
| 0.00 | 2.83 | 0.00 | 1.44 | -11.26 | 164.95 | -0.72 | 176.83 | 0.2228 | 795.0 | 678.6 | |
| 4.54 | -21.00 | 2.34 | -21.00 | -14.25 | 164.79 | -0.88 | 176.86 | 0.2737 | 951.6 | 999999 | |
| 5.05 | -21.00 | 2.60 | -21.00 | -14.00 | 164.76 | -0.91 | 176.70 | 0.2696 | 1112.1 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.05 | -12.17 | 164.56 | -1.11 | 175.41 | 0.2388 | 229.0 | 246.2 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -19.65 | 164.29 | -1.39 | 176.39 | 0.3638 | -836.0 | -692.0 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -10.07 | 164.27 | -1.40 | 173.17 | 0.2037 | -575.0 | -497.2 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -11.71 | 164.23 | -1.44 | 173.85 | 0.2316 | -553.0 | -433.1 | |
| 0.68 | 18.24 | 0.35 | 9.26 | -10.92 | 163.63 | -2.04 | 170.79 | 0.2196 | -998.0 | -362.0 | |
| 0.00 | 4.11 | 0.00 | 2.10 | -12.59 | 163.52 | -2.15 | 171.48 | 0.2480 | -80.0 | 64.1 | |
| 0.00 | 2.74 | 0.00 | 1.40 | -13.17 | 163.49 | -2.18 | 171.69 | 0.2579 | 288.0 | 285.4 | |
| 0.00 | 2.23 | 0.00 | 1.15 | -14.06 | 163.45 | -2.22 | 172.03 | 0.2728 | 663.0 | 627.7 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -13.36 | 163.33 | -2.34 | 171.22 | 0.2613 | 198.0 | 196.4 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -14.71 | 163.07 | -2.60 | 171.09 | 0.2845 | -620.0 | -505.1 | |
| 0.51 | 4.37 | 0.26 | 2.22 | -11.04 | 162.97 | -2.71 | 167.99 | 0.2237 | -891.0 | -729.2 | |
| 0.00 | 8.22 | 0.00 | 4.23 | -14.09 | 162.93 | -2.74 | 170.23 | 0.2747 | 253.0 | 349.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -14.62 | 162.86 | -2.81 | 170.32 | 0.2835 | 807.0 | 556.3 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -11.77 | 162.87 | -2.81 | 168.24 | 0.2362 | -104.0 | -70.9 | |
| 0.00 | 1.28 | 0.00 | 0.64 | -5.19 | 162.86 | -2.81 | 157.38 | 0.1275 | 927.0 | 677.0 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -11.62 | 162.78 | -2.89 | 167.74 | 0.2340 | -551.0 | -425.7 | |
| 0.00 | 4.71 | 0.00 | 2.44 | -15.64 | 162.69 | -2.98 | 170.38 | 0.3008 | -706.0 | -700.1 | |
| 0.00 | 2.74 | 0.00 | 1.40 | -12.59 | 162.74 | -2.94 | 168.43 | 0.2504 | -463.0 | -310.9 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -10.65 | 162.61 | -3.06 | 166.03 | 0.2185 | -942.0 | -744.3 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -11.44 | 162.57 | -3.10 | 166.70 | 0.2318 | -709.0 | -522.3 | |
| 0.00 | 8.05 | 0.00 | 4.15 | -14.06 | 162.50 | -3.17 | 168.72 | 0.2755 | -701.0 | -388.0 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -12.38 | 162.40 | -3.27 | 166.97 | 0.2480 | -687.0 | -664.2 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -14.56 | 162.31 | -3.36 | 168.43 | 0.2842 | -571.0 | -456.5 | |
| 0.00 | 2.31 | 0.00 | 1.20 | -15.36 | 162.27 | -3.41 | 168.85 | 0.2976 | -719.0 | -586.6 | |
| 0.00 | 1.37 | 0.00 | 0.69 | -5.93 | 162.23 | -3.44 | 155.36 | 0.1437 | 760.0 | 566.4 | |
| 0.00 | 2.14 | 0.00 | 1.11 | -14.86 | 161.97 | -3.70 | 167.53 | 0.2905 | -477.0 | -395.4 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -11.56 | 161.81 | -3.86 | 163.77 | 0.2371 | -826.0 | -616.1 | |
| 1.03 | 2.65 | 0.53 | 1.37 | -14.28 | 161.73 | -3.94 | 166.28 | 0.2818 | -899.8 | -696.2 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -14.19 | 161.28 | -4.39 | 164.67 | 0.2823 | -784.0 | -647.9 | |
| 0.00 | 3.17 | 0.00 | 1.63 | -14.03 | 161.07 | -4.61 | 163.81 | 0.2807 | -783.0 | -639.4 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -13.42 | 160.96 | -4.71 | 162.79 | 0.2714 | -1127.0 | -935.6 | |
| 0.00 | 2.14 | 0.00 | 1.11 | -15.27 | 160.82 | -4.85 | 164.25 | 0.3017 | -421.0 | -326.4 | |
| 3.85 | 5.99 | 1.98 | 3.09 | -13.63 | 160.83 | -4.84 | 162.60 | 0.2755 | -1086.2 | -801.6 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -16.63 | 160.76 | -4.91 | 165.25 | 0.3238 | -841.0 | -641.9 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -13.02 | 160.75 | -4.92 | 161.61 | 0.2661 | -821.0 | -623.2 | |
| 0.00 | 2.40 | 0.00 | 1.26 | -17.13 | 160.59 | -5.08 | 165.18 | 0.3325 | -780.0 | -667.2 | |
| 0.00 | 0.68 | 0.00 | 0.35 | -14.10 | 160.61 | -5.07 | 162.36 | 0.2840 | -725.0 | -586.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -16.73 | 160.41 | -5.26 | 164.35 | 0.3268 | -986.0 | -796.2 | |
| 1.03 | 7.36 | 0.54 | 3.86 | -17.04 | 160.31 | -5.36 | 164.33 | 0.3323 | -1038.8 | -722.5 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -14.83 | 160.25 | -5.42 | 162.04 | 0.2976 | -969.0 | -774.7 | |
| 0.43 | 1.88 | 0.22 | 0.97 | -13.70 | 160.22 | -5.45 | 160.63 | 0.2797 | -1228.6 | -970.0 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -13.94 | 160.21 | -5.46 | 160.91 | 0.2836 | -1016.0 | -676.7 | |
| 0.00 | 3.08 | 0.00 | 1.60 | -14.43 | 160.17 | -5.50 | 161.34 | 0.2917 | -1074.0 | -824.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -11.83 | 160.20 | -5.47 | 158.01 | 0.2505 | -1027.0 | -873.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.60 | 159.97 | -5.70 | 158.33 | 0.2639 | -920.0 | -720.6 | |
| 0.00 | 8.65 | 0.00 | 4.47 | -14.03 | 159.81 | -5.86 | 159.74 | 0.2874 | -856.0 | -864.9 | |
| 0.00 | 3.08 | 0.00 | 1.60 | -15.02 | 159.69 | -5.98 | 160.54 | 0.3035 | -963.0 | -801.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -16.82 | 159.60 | -6.07 | 162.18 | 0.3322 | -656.0 | -598.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -15.33 | 159.50 | -6.18 | 160.32 | 0.3094 | -777.0 | -588.7 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -16.73 | 159.39 | -6.28 | 161.50 | 0.3318 | -844.0 | -622.5 | |
| 0.00 | 1.97 | 0.00 | 1.06 | -20.07 | 159.23 | -6.44 | 164.02 | 0.3845 | -726.0 | -580.7 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.44 | 159.06 | -6.61 | 155.03 | 0.2676 | -882.0 | -689.0 | |
| 0.00 | 5.56 | 0.00 | 2.93 | -16.92 | 158.88 | -6.79 | 160.33 | 0.3375 | -1001.0 | -826.3 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -17.17 | 158.66 | -7.02 | 159.99 | 0.3426 | -667.0 | -586.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.04 | 158.63 | -7.04 | 159.79 | 0.3409 | -632.0 | -446.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.67 | 158.32 | -7.35 | 159.66 | 0.3522 | -642.0 | -658.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -14.96 | 158.43 | -7.24 | 156.77 | 0.3103 | -733.0 | -647.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.77 | 158.06 | -7.61 | 156.78 | 0.3249 | -832.0 | -669.7 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.06 | 158.03 | -7.64 | 152.78 | 0.2845 | -942.0 | -752.9 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.70 | 157.30 | -8.37 | 151.70 | 0.2996 | -912.0 | -767.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -13.27 | 156.95 | -8.72 | 149.98 | 0.2963 | -928.0 | -789.1 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -13.61 | 156.94 | -8.73 | 150.52 | 0.3013 | -776.0 | -631.6 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -13.00 | 156.74 | -8.93 | 148.91 | 0.2941 | -1067.0 | -927.4 | |
| 0.00 | 2.83 | 0.00 | 1.47 | -13.21 | 156.71 | -8.97 | 149.19 | 0.2975 | -945.0 | -757.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.90 | 156.60 | -9.07 | 144.27 | 0.2662 | -944.0 | -789.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -13.43 | 156.42 | -9.25 | 148.78 | 0.3030 | -739.0 | -538.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -22.84 | 155.14 | -10.53 | 157.78 | 0.4474 | -650.0 | -421.0 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -20.22 | 152.85 | -12.82 | 150.64 | 0.4264 | -725.0 | -538.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
