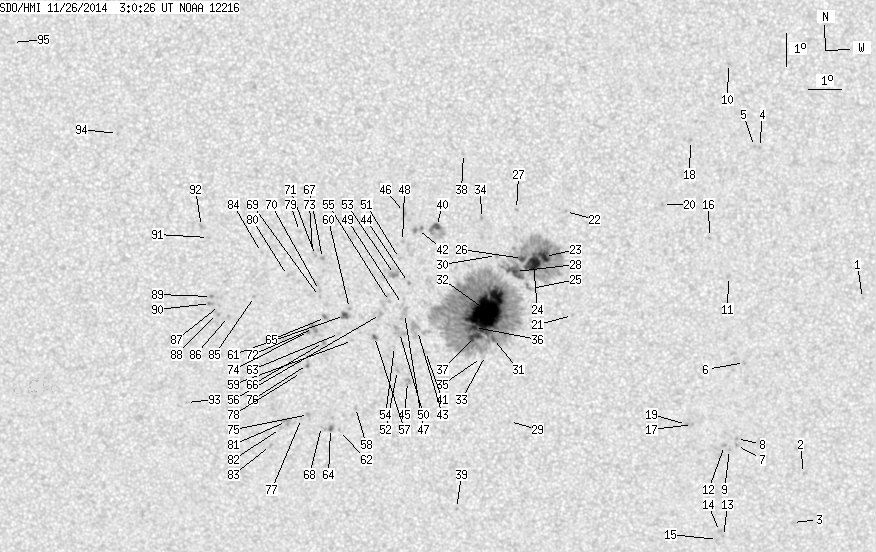

SDO HMI 2014-11-26 03:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132.20 | 862.59 | 67.73 | 442.47 | -13.28 | 164.98 | 0.40 | 181.66 | 0.2600 | 417.2 | 310.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 03:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.40 | -13.16 | 176.67 | 12.09 | 218.89 | 0.3263 | 671.0 | 544.8 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -18.58 | 175.12 | 10.54 | 206.81 | 0.3862 | 619.0 | 436.6 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -20.13 | 174.86 | 10.29 | 204.47 | 0.4067 | 700.0 | 548.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -8.56 | 173.35 | 8.78 | 220.80 | 0.2320 | 795.0 | 705.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -8.53 | 173.20 | 8.62 | 220.39 | 0.2299 | 1018.0 | 804.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -15.10 | 173.09 | 8.52 | 206.58 | 0.3211 | 822.0 | 671.3 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -17.68 | 172.95 | 8.38 | 202.90 | 0.3584 | 819.0 | 695.4 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -17.46 | 172.94 | 8.37 | 203.13 | 0.3551 | 843.0 | 693.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -17.81 | 172.74 | 8.17 | 202.24 | 0.3589 | 815.0 | 648.5 | |
| 0.00 | 1.71 | 0.00 | 0.86 | -6.04 | 172.37 | 7.80 | 225.75 | 0.1892 | 920.0 | 648.0 | |
| 0.00 | 2.06 | 0.00 | 1.06 | -12.46 | 172.51 | 7.94 | 209.18 | 0.2778 | 695.0 | 640.4 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -17.68 | 172.58 | 8.00 | 201.98 | 0.3560 | 1007.0 | 859.3 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -20.56 | 172.68 | 8.11 | 199.37 | 0.4000 | 652.0 | 500.5 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -20.40 | 172.55 | 7.97 | 199.21 | 0.3969 | 872.0 | 714.9 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -20.66 | 172.50 | 7.92 | 198.88 | 0.4004 | 684.0 | 607.2 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -11.27 | 171.90 | 7.32 | 209.47 | 0.2553 | 775.0 | 547.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -17.02 | 171.55 | 6.98 | 200.07 | 0.3399 | 966.0 | 711.6 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -8.34 | 171.26 | 6.69 | 213.96 | 0.2073 | 874.0 | 604.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.02 | 171.36 | 6.79 | 199.58 | 0.3388 | 789.0 | 704.4 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -10.27 | 170.45 | 5.88 | 206.27 | 0.2287 | 933.0 | 751.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -13.63 | 167.77 | 3.20 | 191.72 | 0.2682 | 778.0 | 612.8 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -10.47 | 167.53 | 2.95 | 193.71 | 0.2148 | 881.0 | 649.0 | |
| 7.28 | 669.96 | 3.71 | 343.13 | -11.83 | 166.91 | 2.33 | 189.78 | 0.2354 | 1331.7 | 500.1 | |
| 14.98 | -23.00 | 7.64 | -23.00 | -12.04 | 166.57 | 2.00 | 188.28 | 0.2381 | 1330.0 | 999999 | |
| 0.00 | 4.54 | 0.00 | 2.32 | -12.81 | 166.49 | 1.91 | 187.50 | 0.2507 | 592.0 | 575.8 | |
| 3.00 | -23.00 | 1.53 | -23.00 | -11.89 | 166.24 | 1.67 | 186.99 | 0.2348 | 1231.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -10.40 | 166.05 | 1.48 | 187.00 | 0.2092 | -699.0 | -559.3 | |
| 9.33 | -23.00 | 4.76 | -23.00 | -12.29 | 166.03 | 1.46 | 185.94 | 0.2411 | 1193.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -16.91 | 165.87 | 1.30 | 183.92 | 0.3183 | -810.0 | -652.6 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -11.80 | 165.45 | 0.88 | 183.73 | 0.2320 | 933.0 | 776.1 | |
| 1.88 | -23.00 | 0.97 | -23.00 | -14.34 | 165.37 | 0.79 | 182.81 | 0.2748 | 440.0 | 999999 | |
| 78.61 | -23.00 | 40.31 | -23.00 | -13.51 | 165.18 | 0.61 | 182.29 | 0.2607 | 1571.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -14.86 | 165.13 | 0.55 | 181.89 | 0.2835 | -22.0 | -12.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -10.67 | 165.00 | 0.43 | 181.98 | 0.2124 | 936.0 | 727.2 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -14.92 | 165.00 | 0.43 | 181.46 | 0.2845 | 84.0 | 31.6 | |
| 2.91 | -23.00 | 1.50 | -23.00 | -14.00 | 164.79 | 0.21 | 180.78 | 0.2688 | 1142.7 | 999999 | |
| 7.28 | -23.00 | 3.75 | -23.00 | -14.27 | 164.79 | 0.21 | 180.76 | 0.2735 | 954.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -8.71 | 164.46 | -0.11 | 179.38 | 0.1786 | -729.0 | -700.9 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.64 | 164.22 | -0.35 | 179.08 | 0.3627 | -768.0 | -699.9 | |
| 2.65 | 16.36 | 1.35 | 8.30 | -10.92 | 163.65 | -0.93 | 175.77 | 0.2170 | -998.5 | -360.2 | |
| 0.00 | 3.00 | 0.00 | 1.55 | -14.73 | 163.29 | -1.28 | 175.57 | 0.2821 | 38.0 | 117.3 | |
| 0.00 | 4.37 | 0.00 | 2.22 | -11.01 | 163.07 | -1.50 | 173.23 | 0.2195 | -646.0 | -750.1 | |
| 0.00 | 15.41 | 0.00 | 7.93 | -14.09 | 163.05 | -1.52 | 174.52 | 0.2716 | 378.0 | 415.4 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -12.62 | 162.79 | -1.79 | 172.90 | 0.2473 | -597.0 | -530.6 | |
| 0.00 | 4.02 | 0.00 | 2.09 | -15.66 | 162.73 | -1.84 | 174.01 | 0.2984 | -701.0 | -656.0 | |
| 0.00 | 2.40 | 0.00 | 1.21 | -10.49 | 162.68 | -1.89 | 171.14 | 0.2116 | -1017.0 | -849.0 | |
| 0.00 | 7.11 | 0.00 | 3.65 | -13.57 | 162.66 | -1.92 | 172.88 | 0.2635 | 319.0 | 469.9 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -11.37 | 162.62 | -1.96 | 171.46 | 0.2267 | -742.0 | -690.1 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -13.29 | 162.60 | -1.97 | 172.53 | 0.2590 | -206.0 | -136.2 | |
| 0.00 | 9.50 | 0.00 | 4.89 | -14.15 | 162.50 | -2.07 | 172.60 | 0.2736 | -421.0 | -317.3 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -11.89 | 162.52 | -2.05 | 171.41 | 0.2356 | -620.0 | -524.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -15.32 | 162.43 | -2.15 | 172.89 | 0.2933 | -901.0 | -745.4 | |
| 0.00 | 6.59 | 0.00 | 3.37 | -12.37 | 162.37 | -2.21 | 171.09 | 0.2442 | -810.0 | -657.8 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -14.58 | 162.34 | -2.23 | 172.26 | 0.2812 | -598.0 | -504.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -13.20 | 162.21 | -2.37 | 171.00 | 0.2584 | -785.0 | -578.3 | |
| 0.00 | 3.08 | 0.00 | 1.58 | -13.60 | 161.93 | -2.65 | 170.23 | 0.2658 | -934.0 | -696.5 | |
| 0.86 | 2.40 | 0.44 | 1.24 | -14.27 | 161.73 | -2.84 | 170.00 | 0.2776 | -871.3 | -710.6 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -16.47 | 161.11 | -3.46 | 169.39 | 0.3156 | -798.0 | -606.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -14.39 | 161.06 | -3.51 | 167.78 | 0.2818 | -617.0 | -478.7 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -13.41 | 160.99 | -3.59 | 166.70 | 0.2660 | -1082.0 | -848.8 | |
| 2.48 | 4.97 | 1.28 | 2.55 | -13.63 | 160.83 | -3.75 | 166.34 | 0.2701 | -1161.9 | -903.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -17.19 | 160.60 | -3.97 | 168.35 | 0.3289 | -755.0 | -644.0 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -14.18 | 160.67 | -3.91 | 166.28 | 0.2798 | -741.0 | -590.1 | |
| 0.94 | 3.51 | 0.49 | 1.84 | -17.12 | 160.33 | -4.25 | 167.51 | 0.3289 | -981.8 | -734.5 | |
| 0.00 | 2.57 | 0.00 | 1.32 | -13.69 | 160.25 | -4.33 | 164.39 | 0.2736 | -1241.0 | -933.9 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -14.46 | 160.17 | -4.40 | 164.88 | 0.2864 | -1022.0 | -875.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -11.89 | 160.19 | -4.38 | 162.12 | 0.2447 | -1092.0 | -952.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.06 | 160.05 | -4.53 | 166.68 | 0.3289 | -621.0 | -496.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -13.05 | 160.08 | -4.50 | 163.11 | 0.2640 | -909.0 | -805.5 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -12.86 | 160.08 | -4.49 | 162.91 | 0.2610 | -789.0 | -667.4 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -11.80 | 159.98 | -4.59 | 161.20 | 0.2444 | -798.0 | -652.1 | |
| 0.00 | 5.14 | 0.00 | 2.65 | -14.03 | 159.87 | -4.70 | 163.48 | 0.2808 | -1029.0 | -903.0 | |
| 0.00 | 0.51 | 0.00 | 0.26 | -11.67 | 159.89 | -4.68 | 160.69 | 0.2429 | -661.0 | -522.0 | |
| 0.00 | 2.06 | 0.00 | 1.06 | -14.12 | 159.72 | -4.86 | 163.06 | 0.2830 | -969.0 | -824.7 | |
| 0.00 | 1.88 | 0.00 | 0.99 | -16.69 | 159.66 | -4.92 | 165.27 | 0.3245 | -991.0 | -820.2 | |
| 0.00 | 2.57 | 0.00 | 1.33 | -15.14 | 159.66 | -4.91 | 163.92 | 0.2996 | -927.0 | -782.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -16.81 | 159.43 | -5.14 | 164.75 | 0.3274 | -825.0 | -625.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -15.38 | 159.47 | -5.10 | 163.57 | 0.3045 | -742.0 | -575.2 | |
| 0.00 | 1.88 | 0.00 | 0.96 | -11.07 | 159.51 | -5.07 | 158.31 | 0.2356 | -845.0 | -482.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -12.41 | 159.12 | -5.46 | 158.89 | 0.2591 | -831.0 | -651.4 | |
| 0.00 | 4.20 | 0.00 | 2.20 | -16.91 | 158.97 | -5.61 | 163.52 | 0.3310 | -963.0 | -863.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -17.12 | 158.77 | -5.80 | 163.18 | 0.3354 | -778.0 | -621.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -17.66 | 158.44 | -6.13 | 162.78 | 0.3453 | -921.0 | -731.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.71 | 158.34 | -6.23 | 155.07 | 0.2534 | -814.0 | -693.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -13.05 | 158.09 | -6.48 | 156.38 | 0.2757 | -972.0 | -775.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.66 | 157.28 | -7.29 | 154.76 | 0.2907 | -961.0 | -765.9 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -13.33 | 157.01 | -7.56 | 153.44 | 0.2876 | -977.0 | -827.5 | |
| 0.00 | 2.74 | 0.00 | 1.42 | -13.57 | 156.91 | -7.66 | 153.53 | 0.2920 | -755.0 | -693.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -13.05 | 156.78 | -7.80 | 152.27 | 0.2853 | -1109.0 | -882.4 | |
| 0.00 | 2.14 | 0.00 | 1.11 | -13.27 | 156.74 | -7.83 | 152.52 | 0.2888 | -998.0 | -814.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -11.25 | 156.74 | -7.83 | 148.83 | 0.2594 | -832.0 | -680.3 | |
| 0.00 | 2.74 | 0.00 | 1.40 | -10.92 | 156.54 | -8.04 | 147.48 | 0.2565 | -911.0 | -745.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -16.32 | 155.88 | -8.70 | 154.64 | 0.3403 | -752.0 | -559.7 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -8.13 | 154.07 | -10.51 | 132.80 | 0.2472 | -868.0 | -659.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -5.42 | 150.94 | -13.64 | 117.10 | 0.2649 | -773.0 | -525.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
