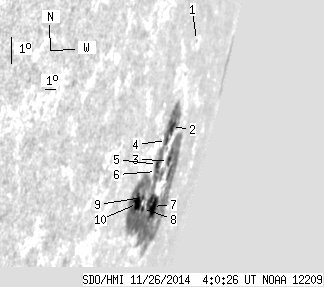

SDO HMI 2014-11-26 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.69 | 282.94 | 113.23 | 695.46 | -16.14 | 241.03 | 77.00 | 253.15 | 0.9789 | -366.2 | -61.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.64 | -11.85 | 241.99 | 77.96 | 257.59 | 0.9810 | 130.0 | 84.0 | |
| 7.28 | 282.68 | 17.32 | 694.82 | -14.45 | 241.18 | 77.16 | 254.88 | 0.9790 | -470.0 | -61.9 | |
| 3.51 | -2.00 | 9.09 | -2.00 | -15.52 | 242.07 | 78.04 | 253.86 | 0.9822 | -232.7 | 999999 | |
| 3.08 | -2.00 | 7.23 | -2.00 | -14.88 | 240.98 | 76.95 | 254.43 | 0.9784 | -571.7 | 999999 | |
| 3.08 | -2.00 | 7.07 | -2.00 | -15.61 | 240.60 | 76.57 | 253.65 | 0.9773 | -316.8 | 999999 | |
| 2.14 | -2.00 | 4.95 | -2.00 | -15.83 | 240.73 | 76.70 | 253.44 | 0.9778 | -448.2 | 999999 | |
| 17.73 | -2.00 | 44.24 | -2.00 | -16.93 | 241.62 | 77.59 | 252.39 | 0.9811 | -210.4 | 999999 | |
| 1.28 | -2.00 | 2.91 | -2.00 | -16.96 | 240.25 | 76.23 | 252.24 | 0.9765 | -262.7 | 999999 | |
| 2.40 | -2.00 | 5.21 | -2.00 | -16.61 | 239.82 | 75.79 | 252.56 | 0.9748 | -393.3 | 999999 | |
| 7.19 | -2.00 | 15.21 | -2.00 | -16.78 | 239.39 | 75.36 | 252.34 | 0.9733 | -722.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
