SDO HMI 2014-11-26 05:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.19 | 889.54 | 69.79 | 456.38 | -13.30 | 164.89 | 1.41 | 185.50 | 0.2612 | 409.8 | 290.9 | |
|
previous
or next observation for the same group /

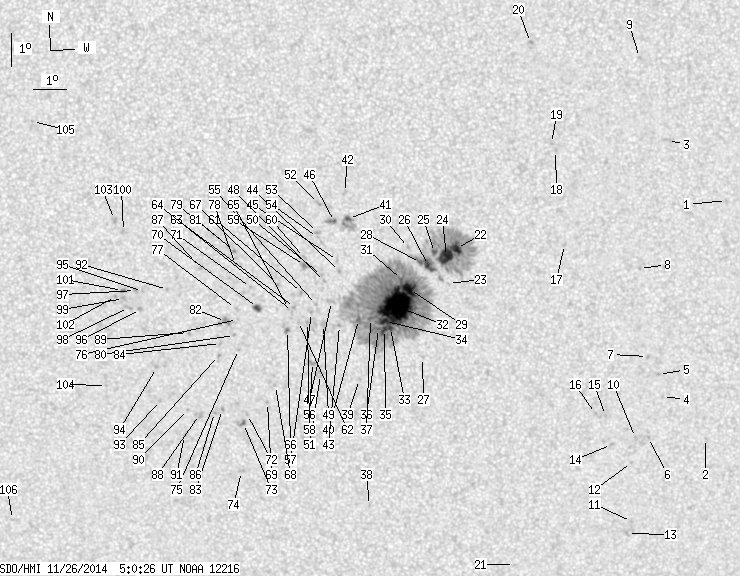

back to the solar disc SDO HMI 2014-11-26 05:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.62 | -10.40 | 175.09 | 11.61 | 223.87 | 0.2868 | 786.0 | 603.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -17.72 | 174.80 | 11.32 | 209.62 | 0.3798 | 787.0 | 626.4 | |
| 0.00 | 2.65 | 0.00 | 1.36 | -8.58 | 173.23 | 9.75 | 223.77 | 0.2432 | 704.0 | 709.6 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -16.40 | 173.37 | 9.89 | 208.21 | 0.3500 | 693.0 | 546.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -15.71 | 173.21 | 9.73 | 208.82 | 0.3389 | 896.0 | 653.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -17.67 | 172.99 | 9.51 | 205.63 | 0.3656 | 893.0 | 770.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -15.15 | 172.84 | 9.36 | 208.73 | 0.3280 | 814.0 | 780.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -12.45 | 172.49 | 9.01 | 212.41 | 0.2866 | 830.0 | 719.4 | |
| 0.00 | 1.46 | 0.00 | 0.74 | -6.09 | 172.33 | 8.85 | 229.23 | 0.2030 | 926.0 | 633.4 | |
| 0.00 | 1.88 | 0.00 | 1.00 | -17.67 | 172.58 | 9.10 | 204.67 | 0.3627 | 959.0 | 759.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -20.33 | 172.60 | 9.12 | 201.80 | 0.4020 | 893.0 | 843.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -18.46 | 172.50 | 9.02 | 203.55 | 0.3737 | 685.0 | 524.7 | |
| 0.00 | 1.88 | 0.00 | 1.02 | -20.71 | 172.50 | 9.02 | 201.20 | 0.4070 | 663.0 | 638.2 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -17.89 | 171.84 | 8.36 | 202.64 | 0.3611 | 780.0 | 593.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -16.98 | 171.61 | 8.13 | 203.12 | 0.3460 | 973.0 | 811.4 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -16.91 | 171.30 | 7.82 | 202.39 | 0.3430 | 807.0 | 698.6 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -11.71 | 170.18 | 6.70 | 206.56 | 0.2566 | 783.0 | 677.0 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -8.87 | 169.85 | 6.37 | 211.35 | 0.2116 | 840.0 | 702.7 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -8.65 | 169.73 | 6.24 | 211.39 | 0.2074 | 801.0 | 624.1 | |
| 0.00 | 1.88 | 0.00 | 0.94 | -5.63 | 169.06 | 5.58 | 217.94 | 0.1581 | 957.0 | 798.0 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -21.69 | 168.93 | 5.45 | 192.63 | 0.4052 | 776.0 | 476.0 | |
| 7.71 | 187.20 | 3.93 | 95.48 | -11.82 | 166.90 | 3.42 | 194.23 | 0.2388 | 1313.1 | 506.0 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -12.88 | 166.67 | 3.19 | 192.32 | 0.2555 | 223.0 | 206.7 | |
| 15.16 | -22.00 | 7.73 | -22.00 | -12.06 | 166.60 | 3.12 | 192.79 | 0.2416 | 1333.4 | 999999 | |
| 1.80 | -22.00 | 0.92 | -22.00 | -11.94 | 166.24 | 2.76 | 191.44 | 0.2383 | 1281.1 | 999999 | |
| 6.59 | -22.00 | 3.37 | -22.00 | -12.33 | 166.06 | 2.58 | 190.41 | 0.2443 | 1204.0 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -15.15 | 165.90 | 2.42 | 188.10 | 0.2909 | -10.0 | 128.9 | |
| 1.37 | -22.00 | 0.70 | -22.00 | -12.24 | 165.82 | 2.34 | 189.51 | 0.2421 | 1196.2 | 999999 | |
| 11.73 | 522.72 | 6.01 | 268.24 | -13.06 | 165.49 | 2.01 | 187.73 | 0.2550 | 1496.5 | 471.4 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -11.78 | 165.45 | 1.97 | 188.33 | 0.2334 | 897.0 | 687.6 | |
| 0.26 | -29.00 | 0.13 | -29.00 | -12.76 | 165.24 | 1.76 | 186.94 | 0.2494 | 1175.0 | 999999 | |
| 67.91 | -29.00 | 34.85 | -29.00 | -13.58 | 165.10 | 1.62 | 186.01 | 0.2630 | 1590.3 | 999999 | |
| 2.06 | -29.00 | 1.06 | -29.00 | -14.23 | 164.92 | 1.44 | 185.12 | 0.2735 | 940.3 | 999999 | |
| 6.34 | -29.00 | 3.26 | -29.00 | -14.04 | 164.76 | 1.28 | 184.63 | 0.2702 | 1168.1 | 999999 | |
| 3.34 | -29.00 | 1.72 | -29.00 | -14.29 | 164.73 | 1.25 | 184.45 | 0.2743 | 970.0 | 999999 | |
| 2.40 | -29.00 | 1.23 | -29.00 | -14.26 | 164.55 | 1.07 | 183.81 | 0.2735 | 884.7 | 999999 | |
| 1.37 | -29.00 | 0.70 | -29.00 | -13.95 | 164.31 | 0.83 | 183.00 | 0.2681 | 787.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.79 | 164.29 | 0.81 | 182.10 | 0.3650 | -861.0 | -752.2 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -15.83 | 163.97 | 0.49 | 181.59 | 0.2995 | -788.0 | -577.1 | |
| 1.46 | -29.00 | 0.75 | -29.00 | -13.98 | 163.94 | 0.46 | 181.67 | 0.2684 | 736.3 | 999999 | |
| 1.63 | 15.93 | 0.83 | 8.08 | -10.90 | 163.64 | 0.16 | 180.71 | 0.2159 | -1053.1 | -420.8 | |
| 0.00 | 1.88 | 0.00 | 0.95 | -10.11 | 163.52 | 0.04 | 180.18 | 0.2024 | -538.0 | -549.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -14.16 | 163.36 | -0.12 | 179.57 | 0.2714 | 1038.0 | 841.3 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -12.51 | 163.36 | -0.12 | 179.53 | 0.2434 | 265.0 | 216.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -12.18 | 163.30 | -0.18 | 179.27 | 0.2377 | 825.0 | 635.4 | |
| 0.69 | 4.71 | 0.35 | 2.39 | -10.99 | 163.22 | -0.27 | 178.80 | 0.2175 | -831.4 | -669.4 | |
| 0.00 | 3.60 | 0.00 | 1.84 | -13.43 | 163.12 | -0.36 | 178.63 | 0.2590 | 164.0 | 160.8 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -12.82 | 162.91 | -0.57 | 177.74 | 0.2487 | -464.0 | -296.7 | |
| 0.00 | 4.97 | 0.00 | 2.55 | -14.13 | 162.87 | -0.61 | 177.81 | 0.2710 | 306.0 | 302.4 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -12.63 | 162.82 | -0.66 | 177.35 | 0.2457 | -626.0 | -391.6 | |
| 0.00 | 5.05 | 0.00 | 2.62 | -15.68 | 162.77 | -0.71 | 177.70 | 0.2970 | -362.0 | -523.5 | |
| 0.00 | 2.57 | 0.00 | 1.30 | -10.45 | 162.74 | -0.75 | 176.46 | 0.2085 | -889.0 | -710.2 | |
| 0.00 | 2.14 | 0.00 | 1.09 | -11.32 | 162.70 | -0.78 | 176.56 | 0.2235 | -855.0 | -682.4 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.48 | 162.70 | -0.78 | 176.60 | 0.2261 | -598.0 | -487.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.52 | 162.66 | -0.82 | 176.93 | 0.2608 | 421.0 | 303.6 | |
| 0.00 | 3.43 | 0.00 | 1.77 | -15.30 | 162.53 | -0.95 | 176.83 | 0.2910 | -647.0 | -704.8 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -13.76 | 162.51 | -0.97 | 176.42 | 0.2651 | 830.0 | 593.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -14.07 | 162.38 | -1.10 | 176.05 | 0.2704 | -792.0 | -657.3 | |
| 0.00 | 5.48 | 0.00 | 2.80 | -12.33 | 162.30 | -1.18 | 175.20 | 0.2411 | -939.0 | -666.6 | |
| 0.00 | 1.88 | 0.00 | 0.96 | -12.08 | 162.31 | -1.18 | 175.12 | 0.2369 | -835.0 | -603.7 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -13.15 | 162.21 | -1.27 | 175.11 | 0.2551 | -873.0 | -695.8 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -14.04 | 162.11 | -1.37 | 175.05 | 0.2703 | -623.0 | -564.1 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -13.61 | 161.99 | -1.49 | 174.47 | 0.2632 | -824.0 | -718.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.73 | 161.93 | -1.55 | 174.29 | 0.2654 | -669.0 | -561.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -13.64 | 161.81 | -1.67 | 173.81 | 0.2640 | -524.0 | -529.4 | |
| 0.43 | 1.88 | 0.22 | 0.97 | -14.32 | 161.77 | -1.71 | 173.95 | 0.2754 | -907.2 | -751.3 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -12.91 | 161.48 | -2.00 | 172.22 | 0.2524 | -781.0 | -625.3 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.02 | 161.39 | -2.09 | 173.35 | 0.3045 | -758.0 | -631.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -16.54 | 161.13 | -2.35 | 172.78 | 0.3137 | -866.0 | -598.0 | |
| 2.74 | 4.45 | 1.41 | 2.29 | -13.61 | 160.86 | -2.62 | 170.35 | 0.2657 | -1106.1 | -841.2 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -13.00 | 160.66 | -2.82 | 169.16 | 0.2562 | -905.0 | -782.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -16.92 | 160.51 | -2.97 | 171.08 | 0.3213 | -743.0 | -636.6 | |
| 0.77 | 4.28 | 0.40 | 2.24 | -17.20 | 160.38 | -3.10 | 170.85 | 0.3263 | -957.8 | -741.3 | |
| 0.00 | 2.23 | 0.00 | 1.18 | -18.71 | 160.29 | -3.19 | 171.32 | 0.3510 | -721.0 | -594.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -14.90 | 160.27 | -3.22 | 169.14 | 0.2889 | -805.0 | -675.6 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -13.98 | 160.25 | -3.23 | 168.42 | 0.2737 | -951.0 | -778.8 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -13.64 | 160.19 | -3.29 | 167.96 | 0.2684 | -1056.0 | -780.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.30 | 160.21 | -3.27 | 166.86 | 0.2461 | -851.0 | -674.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -11.90 | 160.19 | -3.29 | 166.37 | 0.2396 | -1121.0 | -938.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -14.47 | 160.15 | -3.33 | 168.45 | 0.2822 | -974.0 | -783.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -11.75 | 160.01 | -3.47 | 165.50 | 0.2379 | -1000.0 | -826.1 | |
| 0.00 | 6.85 | 0.00 | 3.53 | -14.04 | 159.88 | -3.60 | 167.20 | 0.2761 | -999.0 | -879.2 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -16.76 | 159.74 | -3.74 | 168.72 | 0.3210 | -1002.0 | -801.2 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -14.72 | 159.72 | -3.76 | 167.20 | 0.2878 | -862.0 | -674.4 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -15.09 | 159.65 | -3.83 | 167.27 | 0.2941 | -876.0 | -737.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -16.86 | 159.49 | -3.99 | 168.06 | 0.3234 | -877.0 | -633.9 | |
| 0.00 | 2.31 | 0.00 | 1.18 | -12.39 | 159.15 | -4.33 | 162.92 | 0.2523 | -930.0 | -710.0 | |
| 0.00 | 4.20 | 0.00 | 2.20 | -16.92 | 159.02 | -4.46 | 166.75 | 0.3261 | -925.0 | -779.9 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -14.38 | 158.74 | -4.74 | 163.70 | 0.2864 | -705.0 | -647.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -16.76 | 158.65 | -4.83 | 165.58 | 0.3251 | -811.0 | -686.4 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -17.58 | 158.54 | -4.94 | 165.89 | 0.3385 | -884.0 | -660.8 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -13.06 | 158.13 | -5.35 | 160.14 | 0.2685 | -816.0 | -632.3 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -16.48 | 157.82 | -5.66 | 162.98 | 0.3243 | -798.0 | -664.7 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -15.46 | 157.73 | -5.75 | 161.69 | 0.3087 | -902.0 | -764.8 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -13.12 | 157.37 | -6.11 | 157.66 | 0.2742 | -899.0 | -753.6 | |
| 0.00 | 2.57 | 0.00 | 1.33 | -13.67 | 157.29 | -6.19 | 158.18 | 0.2832 | -850.0 | -765.3 | |
| 0.00 | 2.14 | 0.00 | 1.10 | -13.09 | 157.15 | -6.33 | 156.92 | 0.2751 | -974.0 | -726.7 | |
| 0.00 | 3.08 | 0.00 | 1.59 | -13.61 | 156.92 | -6.56 | 156.94 | 0.2846 | -737.0 | -588.5 | |
| 0.00 | 2.14 | 0.00 | 1.10 | -13.34 | 156.78 | -6.70 | 156.08 | 0.2814 | -1011.0 | -853.2 | |
| 0.00 | 2.74 | 0.00 | 1.40 | -11.30 | 156.83 | -6.65 | 152.86 | 0.2500 | -812.0 | -745.2 | |
| 0.43 | 2.14 | 0.22 | 1.10 | -13.09 | 156.76 | -6.72 | 155.64 | 0.2778 | -973.8 | -811.6 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -13.28 | 156.54 | -6.94 | 155.23 | 0.2821 | -928.0 | -717.4 | |
| 0.00 | 3.17 | 0.00 | 1.62 | -10.93 | 156.57 | -6.91 | 151.24 | 0.2467 | -935.0 | -797.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -16.02 | 156.17 | -7.32 | 157.87 | 0.3264 | -698.0 | -559.3 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -7.99 | 154.16 | -9.32 | 135.74 | 0.2309 | -905.0 | -690.3 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -20.24 | 152.98 | -10.50 | 155.20 | 0.4095 | -689.0 | -556.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
