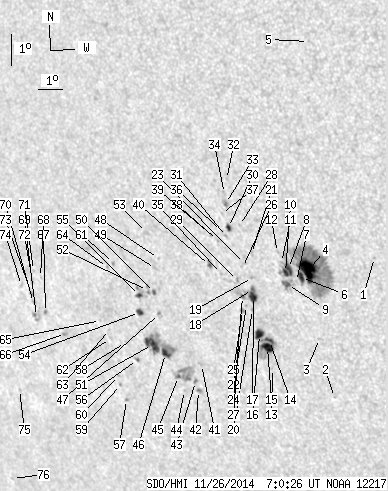

SDO HMI 2014-11-26 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.67 | 356.35 | 57.20 | 245.01 | -18.80 | 122.74 | -39.65 | 119.55 | 0.6948 | 248.7 | 158.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.59 | -17.35 | 128.79 | -33.60 | 121.11 | 0.6193 | 616.0 | 506.1 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -21.83 | 126.12 | -36.27 | 125.47 | 0.6766 | -652.0 | -571.4 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -19.94 | 126.07 | -36.32 | 122.94 | 0.6658 | 347.0 | 419.0 | |
| 22.01 | 144.21 | 14.34 | 93.90 | -17.77 | 126.19 | -36.20 | 120.02 | 0.6519 | 1151.5 | 521.2 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -10.73 | 127.49 | -34.90 | 110.23 | 0.6014 | 602.0 | 517.5 | |
| 3.77 | -4.00 | 2.47 | -4.00 | -18.02 | 125.86 | -36.53 | 120.18 | 0.6572 | 631.3 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.84 | -18.15 | 125.63 | -36.76 | 120.22 | 0.6604 | 617.0 | 453.1 | |
| 4.54 | -4.00 | 2.99 | -4.00 | -17.75 | 125.42 | -36.97 | 119.53 | 0.6607 | 822.8 | 999999 | |
| 1.54 | 8.05 | 1.02 | 5.32 | -18.25 | 125.26 | -37.14 | 120.13 | 0.6653 | 632.5 | 492.2 | |
| 2.91 | -4.00 | 1.92 | -4.00 | -17.87 | 125.27 | -37.12 | 119.62 | 0.6631 | 759.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -17.56 | 125.19 | -37.20 | 119.14 | 0.6623 | 345.0 | 324.0 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -17.25 | 125.11 | -37.28 | 118.66 | 0.6616 | 541.0 | 419.6 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -20.94 | 123.91 | -38.48 | 122.92 | 0.6947 | -184.0 | -218.3 | |
| 2.83 | 31.94 | 1.92 | 21.83 | -20.04 | 124.05 | -38.34 | 121.83 | 0.6882 | 961.8 | 341.2 | |
| 7.19 | -14.00 | 4.91 | -14.00 | -20.27 | 123.91 | -38.48 | 122.04 | 0.6910 | 818.8 | 999999 | |
| 5.48 | -14.00 | 3.74 | -14.00 | -19.86 | 123.70 | -38.69 | 121.39 | 0.6910 | 839.2 | 999999 | |
| 5.39 | 17.30 | 3.65 | 11.73 | -18.65 | 123.80 | -38.59 | 119.84 | 0.6836 | 869.4 | 161.1 | |
| 1.54 | -17.00 | 1.04 | -17.00 | -18.43 | 123.82 | -38.57 | 119.55 | 0.6823 | 879.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.75 | -18.05 | 123.92 | -38.47 | 119.10 | 0.6792 | 646.0 | 580.7 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -19.06 | 123.65 | -38.74 | 120.31 | 0.6875 | 623.0 | 556.0 | |
| 0.00 | 1.80 | 0.00 | 1.20 | -17.30 | 124.08 | -38.31 | 118.15 | 0.6737 | 709.0 | 530.0 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -18.94 | 123.44 | -38.95 | 120.03 | 0.6891 | 300.0 | 335.0 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -17.62 | 123.72 | -38.67 | 118.39 | 0.6794 | 575.0 | 468.8 | |
| 0.69 | -17.00 | 0.47 | -17.00 | -18.66 | 123.36 | -39.03 | 119.60 | 0.6886 | -423.5 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.41 | -19.10 | 123.23 | -39.16 | 120.13 | 0.6922 | 646.0 | 498.8 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -17.74 | 123.60 | -38.79 | 118.50 | 0.6813 | 111.0 | 350.6 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -19.71 | 122.93 | -39.46 | 120.76 | 0.6986 | 493.0 | 332.2 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -16.43 | 123.81 | -38.58 | 116.81 | 0.6725 | 767.0 | 638.3 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -18.16 | 123.29 | -39.10 | 118.90 | 0.6868 | 516.0 | 454.7 | |
| 1.71 | 3.51 | 1.15 | 2.36 | -16.50 | 123.36 | -39.03 | 116.67 | 0.6781 | 751.0 | 633.2 | |
| 0.00 | 1.28 | 0.00 | 0.87 | -16.78 | 123.21 | -39.18 | 116.98 | 0.6811 | 494.0 | 406.9 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -15.01 | 123.62 | -38.77 | 114.72 | 0.6682 | 454.0 | 487.0 | |
| 0.00 | 3.00 | 0.00 | 2.00 | -15.75 | 123.42 | -38.97 | 115.67 | 0.6740 | 862.0 | 728.8 | |
| 0.00 | 1.97 | 0.00 | 1.31 | -15.44 | 123.45 | -38.94 | 115.25 | 0.6722 | 630.0 | 450.4 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -17.95 | 122.70 | -39.69 | 118.30 | 0.6923 | 315.0 | 262.0 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -16.63 | 123.05 | -39.34 | 116.69 | 0.6822 | 495.0 | 446.9 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -16.07 | 123.18 | -39.21 | 115.99 | 0.6781 | 599.0 | 522.4 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -16.91 | 122.81 | -39.58 | 116.96 | 0.6862 | 577.0 | 463.8 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -16.73 | 122.58 | -39.81 | 116.59 | 0.6880 | 459.0 | 403.8 | |
| 1.03 | 3.85 | 0.71 | 2.65 | -17.70 | 122.28 | -40.11 | 117.76 | 0.6959 | 616.7 | 465.3 | |
| 0.00 | 2.06 | 0.00 | 1.47 | -20.86 | 120.99 | -41.40 | 121.19 | 0.7248 | 13.0 | 92.4 | |
| 0.51 | 1.71 | 0.37 | 1.24 | -21.70 | 120.57 | -41.82 | 122.03 | 0.7332 | 594.3 | 437.8 | |
| 0.43 | 1.71 | 0.31 | 1.24 | -21.41 | 120.54 | -41.85 | 121.66 | 0.7321 | 619.6 | 505.9 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -21.71 | 119.96 | -42.43 | 121.73 | 0.7394 | 471.0 | 427.2 | |
| 0.60 | 18.33 | 0.44 | 13.33 | -21.26 | 119.86 | -42.53 | 121.13 | 0.7382 | 139.1 | -357.4 | |
| 4.37 | 40.42 | 3.19 | 29.59 | -20.53 | 119.56 | -42.83 | 120.06 | 0.7380 | -1047.5 | -612.0 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -19.26 | 119.73 | -42.66 | 118.53 | 0.7305 | -692.0 | -628.7 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -17.52 | 120.22 | -42.17 | 116.51 | 0.7177 | -704.0 | -606.4 | |
| 0.00 | 1.97 | 0.00 | 1.40 | -17.84 | 120.01 | -42.38 | 116.83 | 0.7215 | -569.0 | -497.4 | |
| 0.94 | 2.48 | 0.68 | 1.79 | -18.60 | 119.73 | -42.66 | 117.68 | 0.7276 | -724.7 | -609.9 | |
| 10.88 | -46.00 | 8.00 | -46.00 | -20.25 | 119.09 | -43.30 | 119.49 | 0.7415 | -793.0 | 999999 | |
| 0.00 | 3.85 | 0.00 | 2.78 | -18.54 | 119.45 | -42.94 | 117.48 | 0.7304 | -328.0 | -227.6 | |
| 0.00 | 2.48 | 0.00 | 1.76 | -16.71 | 119.95 | -42.44 | 115.33 | 0.7174 | -44.0 | -79.5 | |
| 2.83 | 4.28 | 2.07 | 3.14 | -19.24 | 118.88 | -43.51 | 118.11 | 0.7394 | -779.4 | -610.7 | |
| 1.97 | 6.59 | 1.43 | 4.79 | -18.70 | 119.05 | -43.34 | 117.51 | 0.7352 | 566.4 | 515.2 | |
| 0.51 | 1.63 | 0.38 | 1.22 | -20.75 | 118.26 | -44.13 | 119.71 | 0.7521 | -673.3 | -584.3 | |
| 0.00 | 1.46 | 0.00 | 1.12 | -22.05 | 117.25 | -45.14 | 120.85 | 0.7675 | -633.0 | -563.7 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -20.21 | 117.92 | -44.47 | 118.90 | 0.7532 | -537.0 | -486.9 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -21.57 | 117.18 | -45.21 | 120.23 | 0.7662 | -627.0 | -575.8 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -21.28 | 117.20 | -45.19 | 119.89 | 0.7648 | -654.0 | -554.2 | |
| 0.00 | 1.46 | 0.00 | 1.07 | -17.71 | 118.24 | -44.15 | 115.88 | 0.7398 | 708.0 | 575.4 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -20.10 | 117.30 | -45.09 | 118.47 | 0.7590 | -474.0 | -435.9 | |
| 0.00 | 0.43 | 0.00 | 0.32 | -19.81 | 117.36 | -45.03 | 118.14 | 0.7572 | -488.0 | -428.8 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -17.84 | 117.94 | -44.45 | 115.92 | 0.7435 | 443.0 | 455.2 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -19.53 | 117.06 | -45.33 | 117.67 | 0.7592 | -625.0 | -571.9 | |
| 0.00 | 1.80 | 0.00 | 1.41 | -19.98 | 115.29 | -47.10 | 117.49 | 0.7784 | -769.0 | -664.7 | |
| 0.00 | 1.37 | 0.00 | 1.09 | -19.32 | 114.61 | -47.78 | 116.43 | 0.7827 | -769.0 | -688.6 | |
| 0.00 | 0.51 | 0.00 | 0.40 | -18.22 | 114.80 | -47.59 | 115.14 | 0.7771 | -706.0 | -622.0 | |
| 0.00 | 5.48 | 0.00 | 4.38 | -19.46 | 114.13 | -48.26 | 116.41 | 0.7878 | -486.0 | -481.5 | |
| 0.00 | 1.80 | 0.00 | 1.43 | -19.02 | 114.17 | -48.22 | 115.89 | 0.7860 | -555.0 | -468.9 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -18.00 | 114.55 | -47.84 | 114.79 | 0.7789 | -397.0 | -384.7 | |
| 0.00 | 1.63 | 0.00 | 1.29 | -18.35 | 114.37 | -48.02 | 115.15 | 0.7817 | -405.0 | -425.5 | |
| 0.00 | 1.63 | 0.00 | 1.29 | -18.73 | 114.18 | -48.21 | 115.55 | 0.7849 | -622.0 | -565.9 | |
| 0.00 | 1.37 | 0.00 | 1.10 | -18.49 | 113.80 | -48.59 | 115.11 | 0.7878 | -518.0 | -414.9 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -21.83 | 112.26 | -50.13 | 118.52 | 0.8131 | -320.0 | -288.5 | |
| 0.00 | 1.03 | 0.00 | 0.93 | -24.77 | 110.32 | -52.08 | 121.17 | 0.8393 | 364.0 | 325.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
