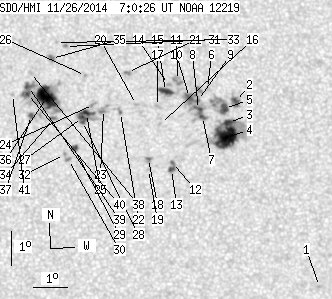

SDO HMI 2014-11-26 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.46 | 320.51 | 57.85 | 159.28 | 4.22 | 159.46 | -2.93 | 38.75 | 0.0753 | -93.1 | -83.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.55 | -0.94 | 164.71 | 2.32 | 223.60 | 0.0590 | 962.0 | 765.7 | |
| 3.68 | 9.16 | 1.83 | 4.54 | 4.53 | 162.23 | -0.16 | 2.98 | 0.0534 | -1018.1 | -683.6 | |
| 5.22 | 70.65 | 2.59 | 35.02 | 3.91 | 162.02 | -0.37 | 8.61 | 0.0429 | -1051.1 | -545.7 | |
| 33.48 | -3.00 | 16.59 | -3.00 | 3.47 | 161.93 | -0.46 | 12.98 | 0.0355 | -1330.2 | 999999 | |
| 5.65 | 20.98 | 2.80 | 10.41 | 4.33 | 161.90 | -0.49 | 9.69 | 0.0504 | -1209.4 | -901.2 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 4.92 | 161.40 | -0.99 | 16.06 | 0.0625 | -841.0 | -653.9 | |
| 2.40 | 39.56 | 1.19 | 19.63 | 4.09 | 161.25 | -1.14 | 23.60 | 0.0497 | -1032.6 | -623.9 | |
| 3.25 | -7.00 | 1.61 | -7.00 | 4.30 | 161.13 | -1.26 | 24.07 | 0.0539 | -986.1 | 999999 | |
| 0.86 | -7.00 | 0.42 | -7.00 | 4.56 | 161.10 | -1.29 | 22.66 | 0.0583 | -1114.8 | 999999 | |
| 3.60 | -7.00 | 1.78 | -7.00 | 4.65 | 160.87 | -1.52 | 25.67 | 0.0615 | -784.5 | 999999 | |
| 0.00 | 6.94 | 0.00 | 3.44 | 5.16 | 160.51 | -1.88 | 27.08 | 0.0721 | -944.0 | -857.5 | |
| 0.69 | 6.42 | 0.34 | 3.18 | 2.73 | 160.36 | -2.03 | 58.55 | 0.0416 | -1108.2 | -902.8 | |
| 2.06 | -12.00 | 1.02 | -12.00 | 2.52 | 160.33 | -2.06 | 63.35 | 0.0403 | -1202.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 5.04 | 160.24 | -2.15 | 31.11 | 0.0726 | -901.0 | -768.9 | |
| 5.82 | 11.99 | 2.89 | 5.95 | 4.83 | 160.15 | -2.24 | 33.73 | 0.0704 | -1165.1 | -569.9 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 3.88 | 160.01 | -2.38 | 44.83 | 0.0591 | 938.0 | 781.0 | |
| 0.00 | 2.65 | 0.00 | 1.32 | 4.39 | 159.92 | -2.47 | 40.42 | 0.0667 | 101.0 | 201.3 | |
| 0.69 | 3.85 | 0.34 | 1.91 | 2.85 | 159.65 | -2.74 | 63.60 | 0.0535 | -961.6 | -654.4 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 2.52 | 159.65 | -2.74 | 69.33 | 0.0512 | -995.0 | -656.3 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 4.45 | 159.29 | -3.10 | 46.25 | 0.0749 | 761.0 | 549.3 | |
| 0.00 | 2.57 | 0.00 | 1.28 | 5.39 | 159.02 | -3.37 | 40.67 | 0.0902 | -1007.0 | -836.5 | |
| 0.43 | 3.85 | 0.21 | 1.91 | 4.21 | 158.82 | -3.57 | 52.64 | 0.0785 | -768.4 | 80.2 | |
| 0.00 | 5.91 | 0.00 | 2.94 | 4.30 | 158.31 | -4.08 | 55.35 | 0.0866 | 206.0 | 510.3 | |
| 0.00 | 2.74 | 0.00 | 1.36 | 4.45 | 158.01 | -4.38 | 55.85 | 0.0923 | 840.0 | 513.6 | |
| 5.22 | 19.52 | 2.60 | 9.71 | 4.18 | 157.81 | -4.58 | 59.49 | 0.0929 | 1029.2 | 378.7 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 5.31 | 157.77 | -4.62 | 50.30 | 0.1047 | 969.0 | 714.8 | |
| 3.85 | -25.00 | 1.92 | -25.00 | 4.06 | 157.69 | -4.70 | 61.23 | 0.0937 | 1200.3 | 999999 | |
| 1.37 | -25.00 | 0.68 | -25.00 | 3.94 | 157.69 | -4.70 | 62.36 | 0.0927 | 1100.5 | 999999 | |
| 2.74 | 4.45 | 1.36 | 2.21 | 3.14 | 157.45 | -4.94 | 71.41 | 0.0911 | 1191.8 | 849.1 | |
| 0.00 | 2.23 | 0.00 | 1.11 | 2.82 | 157.28 | -5.11 | 75.38 | 0.0924 | 1168.0 | 930.2 | |
| 0.00 | 1.80 | 0.00 | 0.90 | 6.16 | 157.17 | -5.22 | 47.97 | 0.1224 | 953.0 | 817.8 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 2.97 | 157.16 | -5.23 | 74.18 | 0.0951 | 1050.0 | 883.8 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 6.28 | 156.90 | -5.49 | 48.68 | 0.1273 | 825.0 | 586.2 | |
| 0.00 | 2.74 | 0.00 | 1.37 | 4.03 | 156.83 | -5.56 | 65.35 | 0.1069 | 1058.0 | 837.8 | |
| 1.11 | 3.60 | 0.56 | 1.80 | 5.81 | 156.75 | -5.64 | 52.36 | 0.1240 | 1223.8 | 932.4 | |
| 28.00 | 80.84 | 13.96 | 40.31 | 4.65 | 156.61 | -5.78 | 61.17 | 0.1151 | 1338.3 | 628.6 | |
| 1.46 | 3.25 | 0.73 | 1.62 | 4.12 | 156.17 | -6.22 | 66.97 | 0.1180 | 984.9 | 798.5 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 5.39 | 156.13 | -6.26 | 57.88 | 0.1288 | 807.0 | 573.4 | |
| 2.57 | -36.00 | 1.28 | -36.00 | 4.98 | 156.07 | -6.32 | 60.93 | 0.1260 | 912.8 | 999999 | |
| 2.31 | -36.00 | 1.15 | -36.00 | 4.77 | 156.04 | -6.35 | 62.51 | 0.1247 | 1054.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 4.74 | 155.60 | -6.79 | 64.27 | 0.1315 | 837.0 | 576.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
