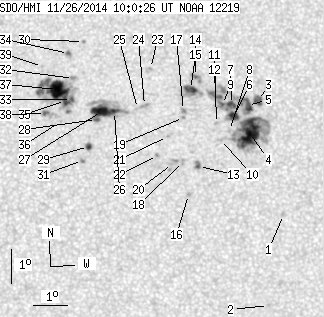

SDO HMI 2014-11-26 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.93 | 377.30 | 60.50 | 187.32 | 4.13 | 159.78 | -0.97 | 180.44 | 0.0626 | -58.2 | -116.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.31 | 0.00 | 1.15 | 1.14 | 163.13 | 2.38 | 262.01 | 0.0421 | 765.0 | 526.5 | |
| 0.00 | 1.20 | 0.00 | 0.59 | -1.55 | 162.69 | 1.93 | 212.54 | 0.0629 | 768.0 | 641.0 | |
| 4.62 | 172.26 | 2.29 | 85.43 | 4.52 | 162.40 | 1.65 | 331.62 | 0.0606 | -965.2 | -665.1 | |
| 35.70 | -3.00 | 17.70 | -3.00 | 3.57 | 162.13 | 1.38 | 326.71 | 0.0439 | -1310.7 | 999999 | |
| 6.85 | -3.00 | 3.40 | -3.00 | 4.37 | 162.07 | 1.32 | 335.53 | 0.0557 | -1079.6 | 999999 | |
| 5.65 | -3.00 | 2.80 | -3.00 | 4.05 | 161.66 | 0.90 | 340.64 | 0.0477 | -1258.1 | 999999 | |
| 4.20 | -3.00 | 2.08 | -3.00 | 4.40 | 161.60 | 0.85 | 343.91 | 0.0533 | -1352.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 3.63 | 161.54 | 0.78 | 340.02 | 0.0402 | -217.0 | -267.0 | |
| 1.11 | -3.00 | 0.55 | -3.00 | 4.40 | 161.33 | 0.58 | 348.83 | 0.0522 | -1058.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 3.36 | 161.27 | 0.52 | 344.70 | 0.0343 | 349.0 | 221.2 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 3.84 | 161.15 | 0.40 | 350.41 | 0.0420 | -778.0 | -480.6 | |
| 3.60 | -3.00 | 1.78 | -3.00 | 4.67 | 161.13 | 0.37 | 353.38 | 0.0563 | -1100.3 | 999999 | |
| 1.20 | 3.94 | 0.59 | 1.95 | 2.57 | 160.62 | -0.14 | 7.08 | 0.0192 | -1144.9 | -978.4 | |
| 0.68 | 5.22 | 0.34 | 2.59 | 5.23 | 160.53 | -0.22 | 3.37 | 0.0659 | -939.6 | -785.4 | |
| 6.25 | 17.98 | 3.10 | 8.92 | 4.85 | 160.38 | -0.37 | 6.26 | 0.0594 | -1143.1 | -404.2 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 1.74 | 160.32 | -0.43 | 58.84 | 0.0089 | -1092.0 | -839.7 | |
| 0.00 | 2.65 | 0.00 | 1.32 | 4.22 | 160.18 | -0.58 | 11.87 | 0.0492 | 1031.0 | 722.7 | |
| 0.00 | 2.40 | 0.00 | 1.19 | 2.72 | 160.17 | -0.58 | 25.07 | 0.0240 | -927.0 | -760.3 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 4.02 | 160.18 | -0.58 | 12.81 | 0.0457 | 998.0 | 823.2 | |
| 0.00 | 6.16 | 0.00 | 3.05 | 2.66 | 159.85 | -0.91 | 37.49 | 0.0261 | -188.0 | -515.7 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 3.46 | 159.70 | -1.05 | 27.99 | 0.0393 | 911.0 | 720.3 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 2.89 | 159.41 | -1.35 | 43.58 | 0.0343 | -991.0 | -821.4 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 5.47 | 159.20 | -1.56 | 21.25 | 0.0751 | -987.0 | -752.5 | |
| 0.00 | 3.60 | 0.00 | 1.78 | 4.37 | 159.02 | -1.74 | 30.86 | 0.0591 | 875.0 | 550.4 | |
| 0.00 | 1.97 | 0.00 | 0.98 | 4.28 | 158.81 | -1.94 | 34.62 | 0.0598 | 633.0 | 390.6 | |
| 3.08 | 47.60 | 1.53 | 23.64 | 4.20 | 158.13 | -2.63 | 43.91 | 0.0662 | 1056.9 | 295.4 | |
| 15.33 | -26.00 | 7.61 | -26.00 | 4.20 | 157.74 | -3.01 | 47.83 | 0.0710 | 1179.7 | 999999 | |
| 1.28 | -26.00 | 0.64 | -26.00 | 3.96 | 157.59 | -3.16 | 51.76 | 0.0703 | 1055.3 | 999999 | |
| 2.40 | 3.51 | 1.19 | 1.74 | 3.16 | 157.36 | -3.40 | 63.56 | 0.0663 | 1186.9 | 934.6 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 6.27 | 157.20 | -3.56 | 36.40 | 0.1044 | 941.0 | 785.9 | |
| 0.00 | 2.05 | 0.00 | 1.02 | 2.75 | 157.18 | -3.57 | 70.39 | 0.0664 | 1169.0 | 948.4 | |
| 0.00 | 2.57 | 0.00 | 1.28 | 5.17 | 156.91 | -3.85 | 46.01 | 0.0933 | 949.0 | 778.5 | |
| 2.40 | 78.85 | 1.19 | 39.23 | 4.55 | 156.85 | -3.90 | 51.66 | 0.0869 | 1057.5 | 685.2 | |
| 0.86 | 1.80 | 0.43 | 0.90 | 5.91 | 156.75 | -4.00 | 41.87 | 0.1045 | 1119.9 | 907.1 | |
| 4.45 | -33.00 | 2.21 | -33.00 | 4.52 | 156.67 | -4.08 | 53.17 | 0.0891 | 1211.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 3.90 | 156.53 | -4.23 | 60.09 | 0.0853 | 318.0 | 275.0 | |
| 20.81 | -33.00 | 10.35 | -33.00 | 4.85 | 156.43 | -4.32 | 51.92 | 0.0959 | 1393.9 | 999999 | |
| 1.46 | 7.02 | 0.72 | 3.49 | 4.14 | 156.08 | -4.68 | 60.25 | 0.0941 | 1007.7 | 801.5 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 5.53 | 155.98 | -4.77 | 49.51 | 0.1094 | 737.0 | 557.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
