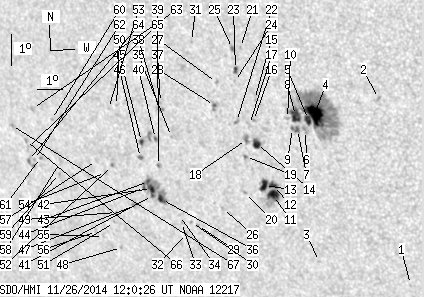

SDO HMI 2014-11-26 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.74 | 310.02 | 49.56 | 204.43 | -18.75 | 123.01 | -36.65 | 121.21 | 0.6614 | 254.1 | 163.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.60 | -23.19 | 128.46 | -31.20 | 130.99 | 0.6333 | 213.0 | 268.6 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -17.26 | 128.61 | -31.05 | 122.82 | 0.5884 | 782.0 | 693.2 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -22.49 | 125.16 | -34.50 | 127.53 | 0.6622 | 598.0 | 410.3 | |
| 21.66 | 141.24 | 13.65 | 88.94 | -17.80 | 126.15 | -33.51 | 121.80 | 0.6209 | 1114.4 | 514.0 | |
| 4.02 | -4.00 | 2.55 | -4.00 | -17.96 | 125.89 | -33.77 | 121.85 | 0.6249 | 695.8 | 999999 | |
| 0.00 | 3.68 | 0.00 | 2.34 | -18.31 | 125.70 | -33.96 | 122.22 | 0.6292 | 591.0 | 501.3 | |
| 1.28 | 5.39 | 0.82 | 3.44 | -18.28 | 125.40 | -34.26 | 121.98 | 0.6325 | 617.3 | 484.2 | |
| 8.30 | -4.00 | 5.28 | -4.00 | -17.84 | 125.43 | -34.23 | 121.37 | 0.6295 | 768.9 | 999999 | |
| 0.43 | -7.00 | 0.27 | -7.00 | -18.25 | 125.22 | -34.44 | 121.81 | 0.6344 | 483.6 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.15 | -17.94 | 125.10 | -34.56 | 121.29 | 0.6339 | 471.0 | 351.0 | |
| 8.30 | 32.44 | 5.47 | 21.39 | -20.39 | 123.96 | -35.70 | 123.92 | 0.6615 | 799.8 | 310.7 | |
| 3.42 | -11.00 | 2.25 | -11.00 | -20.07 | 124.04 | -35.62 | 123.55 | 0.6587 | 965.8 | 999999 | |
| 5.31 | -11.00 | 3.50 | -11.00 | -20.08 | 123.69 | -35.97 | 123.32 | 0.6625 | 702.6 | 999999 | |
| 4.96 | 7.02 | 3.24 | 4.59 | -18.75 | 123.72 | -35.94 | 121.53 | 0.6543 | 806.6 | 557.7 | |
| 0.00 | 0.34 | 0.00 | 0.22 | -17.36 | 123.98 | -35.68 | 119.75 | 0.6436 | 643.0 | 632.5 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -18.02 | 123.79 | -35.88 | 120.56 | 0.6495 | 767.0 | 607.4 | |
| 0.00 | 2.65 | 0.00 | 1.73 | -18.15 | 123.60 | -36.06 | 120.63 | 0.6524 | 657.0 | 522.6 | |
| 0.00 | 4.28 | 0.00 | 2.81 | -18.63 | 123.37 | -36.29 | 121.14 | 0.6577 | -277.0 | -138.1 | |
| 0.43 | 1.28 | 0.28 | 0.85 | -19.16 | 123.19 | -36.47 | 121.77 | 0.6627 | 688.2 | 586.7 | |
| 0.00 | 1.20 | 0.00 | 0.80 | -20.31 | 122.84 | -36.82 | 123.09 | 0.6732 | 495.0 | 440.4 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -15.75 | 123.79 | -35.87 | 117.32 | 0.6370 | 640.0 | 570.9 | |
| 0.00 | 2.23 | 0.00 | 1.46 | -18.06 | 123.12 | -36.54 | 120.21 | 0.6574 | 650.0 | 560.4 | |
| 1.54 | 3.17 | 1.00 | 2.05 | -16.43 | 123.46 | -36.20 | 118.12 | 0.6447 | 824.4 | 650.9 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -16.81 | 123.34 | -36.33 | 118.58 | 0.6481 | 619.0 | 540.8 | |
| 0.60 | 2.23 | 0.39 | 1.43 | -15.78 | 123.48 | -36.18 | 117.19 | 0.6410 | 843.0 | 707.4 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -20.84 | 121.81 | -37.85 | 123.15 | 0.6873 | 334.0 | 331.1 | |
| 0.00 | 1.37 | 0.00 | 0.90 | -16.85 | 122.63 | -37.03 | 118.23 | 0.6565 | 637.0 | 443.8 | |
| 0.77 | 3.42 | 0.51 | 2.26 | -17.57 | 122.38 | -37.28 | 119.09 | 0.6632 | 740.6 | 553.3 | |
| 0.00 | 1.37 | 0.00 | 0.95 | -21.40 | 120.62 | -39.04 | 123.17 | 0.7030 | 701.0 | 551.1 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -21.31 | 120.41 | -39.26 | 122.93 | 0.7047 | 316.0 | 247.5 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -15.59 | 121.94 | -37.72 | 116.06 | 0.6583 | 441.0 | 348.3 | |
| 0.00 | 1.71 | 0.00 | 1.20 | -21.67 | 120.08 | -39.58 | 123.20 | 0.7100 | 350.0 | 294.7 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -21.32 | 119.99 | -39.67 | 122.70 | 0.7091 | 239.0 | 152.5 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -21.09 | 119.98 | -39.68 | 122.41 | 0.7080 | -705.0 | -575.2 | |
| 0.00 | 0.68 | 0.00 | 0.47 | -18.58 | 120.41 | -39.25 | 119.36 | 0.6905 | -740.0 | -624.4 | |
| 4.02 | 33.90 | 2.83 | 23.83 | -20.59 | 119.40 | -40.26 | 121.44 | 0.7115 | -976.3 | -652.2 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -17.51 | 120.25 | -39.41 | 117.84 | 0.6870 | -620.0 | -608.0 | |
| 0.00 | 3.51 | 0.00 | 2.39 | -17.73 | 120.15 | -39.51 | 118.09 | 0.6892 | -705.0 | -630.4 | |
| 0.34 | 1.63 | 0.24 | 1.13 | -19.51 | 119.61 | -40.05 | 120.15 | 0.7038 | -728.2 | -619.4 | |
| 0.60 | 1.80 | 0.41 | 1.24 | -18.65 | 119.74 | -39.92 | 119.10 | 0.6982 | -693.9 | -619.5 | |
| 1.03 | -36.00 | 0.72 | -36.00 | -20.47 | 119.06 | -40.60 | 121.10 | 0.7144 | -625.4 | 999999 | |
| 3.77 | -36.00 | 2.65 | -36.00 | -20.25 | 119.09 | -40.57 | 120.83 | 0.7130 | -928.5 | 999999 | |
| 1.37 | -36.00 | 0.96 | -36.00 | -20.02 | 119.04 | -40.62 | 120.52 | 0.7125 | -764.1 | 999999 | |
| 0.68 | -36.00 | 0.48 | -36.00 | -20.22 | 118.81 | -40.85 | 120.65 | 0.7159 | -436.4 | 999999 | |
| 1.63 | 6.59 | 1.13 | 4.57 | -18.76 | 119.13 | -40.53 | 118.92 | 0.7053 | 624.3 | -73.2 | |
| 0.77 | 1.88 | 0.54 | 1.32 | -19.26 | 118.94 | -40.72 | 119.48 | 0.7098 | -831.0 | -714.8 | |
| 0.00 | 2.14 | 0.00 | 1.53 | -20.80 | 118.19 | -41.47 | 121.07 | 0.7251 | -697.0 | -527.4 | |
| 0.00 | 1.11 | 0.00 | 0.82 | -22.17 | 117.15 | -42.52 | 122.24 | 0.7423 | -560.0 | -497.9 | |
| 0.00 | 1.11 | 0.00 | 0.81 | -21.04 | 117.34 | -42.32 | 120.94 | 0.7350 | -551.0 | -540.5 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -17.64 | 118.42 | -41.24 | 117.09 | 0.7080 | 741.0 | 567.6 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -21.37 | 117.14 | -42.52 | 121.24 | 0.7385 | -633.0 | -567.9 | |
| 0.00 | 1.46 | 0.00 | 1.04 | -19.54 | 117.68 | -41.98 | 119.20 | 0.7245 | -774.0 | -663.9 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -17.74 | 118.06 | -41.60 | 117.05 | 0.7124 | 560.0 | 448.3 | |
| 0.00 | 1.54 | 0.00 | 1.11 | -19.77 | 117.31 | -42.35 | 119.31 | 0.7295 | -577.0 | -427.8 | |
| 0.00 | 1.28 | 0.00 | 0.95 | -21.83 | 116.49 | -43.17 | 121.49 | 0.7472 | -445.0 | -368.9 | |
| 0.00 | 1.71 | 0.00 | 1.27 | -21.67 | 116.24 | -43.42 | 121.18 | 0.7489 | -361.0 | -364.9 | |
| 0.00 | 1.37 | 0.00 | 0.99 | -19.39 | 117.05 | -42.62 | 118.71 | 0.7305 | -570.0 | -485.3 | |
| 0.00 | 2.74 | 0.00 | 2.03 | -19.45 | 115.46 | -44.20 | 118.05 | 0.7472 | -558.0 | -497.3 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -19.84 | 115.29 | -44.38 | 118.45 | 0.7506 | -659.0 | -639.8 | |
| 0.00 | 0.68 | 0.00 | 0.50 | -18.13 | 115.51 | -44.15 | 116.40 | 0.7413 | -640.0 | -563.2 | |
| 0.00 | 1.37 | 0.00 | 1.03 | -19.34 | 114.62 | -45.04 | 117.54 | 0.7554 | -810.0 | -675.9 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -19.41 | 114.33 | -45.34 | 117.50 | 0.7586 | -696.0 | -669.2 | |
| 0.00 | 2.23 | 0.00 | 1.65 | -17.80 | 114.79 | -44.87 | 115.67 | 0.7477 | -451.0 | -385.8 | |
| 0.51 | 4.28 | 0.39 | 3.25 | -19.45 | 114.04 | -45.62 | 117.43 | 0.7616 | -461.0 | -421.0 | |
| 0.00 | 1.97 | 0.00 | 1.49 | -19.03 | 114.15 | -45.51 | 116.96 | 0.7590 | -472.0 | -333.7 | |
| 0.00 | 1.71 | 0.00 | 1.29 | -18.81 | 114.13 | -45.53 | 116.68 | 0.7583 | -521.0 | -430.1 | |
| 0.00 | 0.51 | 0.00 | 0.39 | -18.35 | 113.67 | -45.99 | 115.91 | 0.7613 | -594.0 | -536.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
