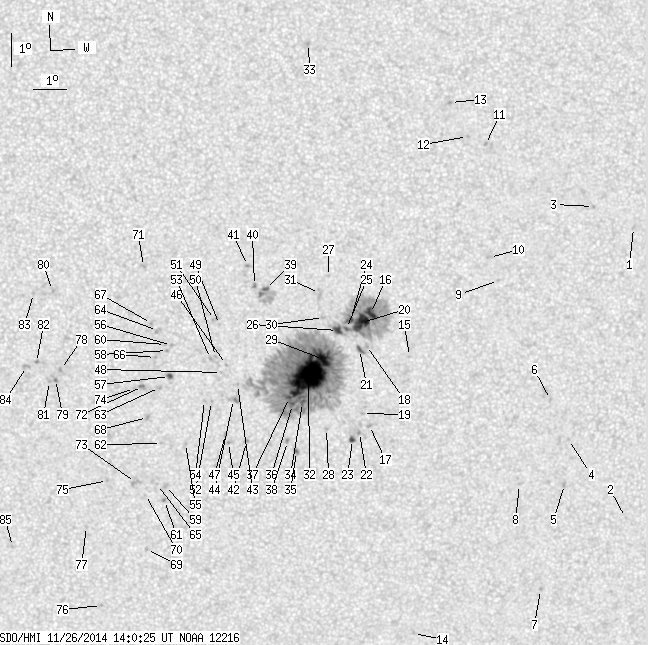

SDO HMI 2014-11-26 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.67 | 816.43 | 65.35 | 421.25 | -13.27 | 165.11 | 6.54 | 203.58 | 0.2808 | 494.2 | 336.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.81 | -9.21 | 174.90 | 16.33 | 236.43 | 0.3347 | 734.0 | 614.7 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -18.10 | 175.28 | 16.71 | 219.30 | 0.4334 | 570.0 | 449.7 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -8.56 | 173.63 | 15.06 | 236.00 | 0.3114 | 804.0 | 665.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -15.66 | 173.24 | 14.68 | 219.72 | 0.3834 | 878.0 | 648.7 | |
| 0.00 | 2.31 | 0.00 | 1.25 | -17.05 | 173.22 | 14.65 | 217.35 | 0.4004 | 796.0 | 630.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -14.42 | 172.59 | 14.02 | 220.69 | 0.3616 | 914.0 | 685.6 | |
| 0.00 | 1.28 | 0.00 | 0.71 | -20.36 | 172.73 | 14.16 | 211.73 | 0.4381 | 929.0 | 733.4 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -17.04 | 171.78 | 13.22 | 214.61 | 0.3866 | 863.0 | 650.7 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -10.77 | 170.78 | 12.22 | 224.51 | 0.2979 | 750.0 | 588.9 | |
| 0.00 | 2.05 | 0.00 | 1.06 | -10.08 | 170.48 | 11.91 | 225.52 | 0.2861 | 790.0 | 783.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -6.68 | 170.25 | 11.69 | 234.93 | 0.2470 | 967.0 | 771.4 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -6.44 | 169.70 | 11.14 | 234.46 | 0.2370 | 908.0 | 768.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -5.42 | 169.17 | 10.60 | 236.87 | 0.2198 | 809.0 | 687.3 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -21.74 | 168.72 | 10.16 | 202.59 | 0.4283 | 769.0 | 695.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -13.07 | 168.13 | 9.57 | 212.86 | 0.2997 | 709.0 | 585.5 | |
| 6.93 | 160.29 | 3.56 | 82.45 | -11.75 | 166.89 | 8.33 | 211.83 | 0.2701 | 1218.2 | 465.7 | |
| 0.00 | 2.14 | 0.00 | 1.12 | -15.18 | 166.98 | 8.41 | 206.26 | 0.3206 | -949.0 | -732.0 | |
| 0.00 | 2.31 | 0.00 | 1.19 | -12.73 | 166.80 | 8.23 | 209.70 | 0.2833 | 635.0 | 409.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -14.81 | 166.75 | 8.18 | 206.17 | 0.3134 | 833.0 | 628.2 | |
| 16.69 | -16.00 | 8.59 | -16.00 | -12.02 | 166.62 | 8.06 | 210.47 | 0.2716 | 1246.1 | 999999 | |
| 1.63 | 3.77 | 0.84 | 1.94 | -12.85 | 166.59 | 8.02 | 208.85 | 0.2833 | 828.4 | 617.3 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -15.40 | 166.68 | 8.11 | 205.14 | 0.3216 | -983.0 | -737.8 | |
| 1.71 | 2.82 | 0.90 | 1.48 | -15.61 | 166.47 | 7.90 | 204.29 | 0.3234 | -1060.2 | -811.2 | |
| 3.00 | -16.00 | 1.54 | -16.00 | -11.96 | 166.29 | 7.72 | 209.53 | 0.2679 | 1258.9 | 999999 | |
| 1.03 | -16.00 | 0.53 | -16.00 | -12.20 | 166.17 | 7.61 | 208.72 | 0.2705 | 1112.2 | 999999 | |
| 4.28 | -16.00 | 2.20 | -16.00 | -12.26 | 165.90 | 7.33 | 207.74 | 0.2692 | 1223.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -10.62 | 165.58 | 7.02 | 209.85 | 0.2424 | 770.0 | 565.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.27 | 165.65 | 7.09 | 202.47 | 0.3128 | 815.0 | 698.7 | |
| 11.90 | 512.63 | 6.13 | 264.67 | -13.15 | 165.49 | 6.93 | 204.98 | 0.2794 | 1364.1 | 479.1 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -11.87 | 165.46 | 6.90 | 207.02 | 0.2599 | 883.0 | 653.5 | |
| 0.00 | 4.79 | 0.00 | 2.45 | -11.14 | 165.32 | 6.76 | 207.90 | 0.2479 | 645.0 | 674.3 | |
| 72.14 | -29.00 | 37.26 | -29.00 | -13.67 | 165.05 | 6.48 | 202.81 | 0.2843 | 1517.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.81 | -3.65 | 164.89 | 6.32 | 231.01 | 0.1421 | 823.0 | 575.1 | |
| 2.14 | -29.00 | 1.11 | -29.00 | -14.46 | 164.89 | 6.32 | 201.24 | 0.2956 | 838.1 | 999999 | |
| 0.60 | 2.82 | 0.31 | 1.47 | -15.98 | 164.74 | 6.18 | 199.06 | 0.3184 | -1003.1 | -786.2 | |
| 0.94 | -29.00 | 0.49 | -29.00 | -14.52 | 164.58 | 6.02 | 200.23 | 0.2948 | 978.2 | 999999 | |
| 1.20 | -29.00 | 0.62 | -29.00 | -14.31 | 164.48 | 5.92 | 200.19 | 0.2908 | 940.0 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -15.66 | 164.46 | 5.89 | 198.56 | 0.3120 | 797.0 | 570.3 | |
| 1.03 | 20.45 | 0.52 | 10.43 | -11.01 | 163.68 | 5.12 | 202.08 | 0.2341 | -993.6 | -280.9 | |
| 0.00 | 2.48 | 0.00 | 1.26 | -10.89 | 163.35 | 4.79 | 200.96 | 0.2301 | -910.0 | -735.2 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -10.28 | 163.13 | 4.57 | 201.04 | 0.2191 | -1003.0 | -809.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -15.66 | 163.19 | 4.63 | 194.78 | 0.3059 | -813.0 | -672.7 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -13.90 | 162.88 | 4.32 | 195.42 | 0.2761 | 890.0 | 693.9 | |
| 0.00 | 4.88 | 0.00 | 2.52 | -14.36 | 162.77 | 4.20 | 194.59 | 0.2831 | 403.0 | 386.9 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -15.69 | 162.64 | 4.07 | 193.06 | 0.3041 | -800.0 | -644.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -13.29 | 162.54 | 3.97 | 194.83 | 0.2646 | 803.0 | 573.0 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -15.44 | 162.54 | 3.98 | 192.95 | 0.2997 | -785.0 | -550.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -13.53 | 162.39 | 3.82 | 194.06 | 0.2680 | -672.0 | -452.0 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -12.07 | 162.31 | 3.74 | 195.26 | 0.2437 | -652.0 | -472.3 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -13.04 | 162.20 | 3.63 | 193.85 | 0.2592 | -937.0 | -654.7 | |
| 0.00 | 1.97 | 0.00 | 1.00 | -11.91 | 162.15 | 3.59 | 194.83 | 0.2405 | -799.0 | -701.2 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -14.42 | 162.10 | 3.53 | 192.29 | 0.2814 | -660.0 | -547.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -13.10 | 162.05 | 3.48 | 193.24 | 0.2596 | -965.0 | -764.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -14.39 | 161.88 | 3.32 | 191.59 | 0.2802 | -797.0 | -587.7 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -15.72 | 161.32 | 2.75 | 188.89 | 0.3004 | -848.0 | -726.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -12.70 | 160.86 | 2.29 | 189.06 | 0.2490 | -918.0 | -689.0 | |
| 1.45 | 2.82 | 0.75 | 1.45 | -13.65 | 160.80 | 2.24 | 188.29 | 0.2648 | -1028.9 | -820.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -12.86 | 160.74 | 2.17 | 188.50 | 0.2513 | -875.0 | -655.8 | |
| 0.00 | 2.74 | 0.00 | 1.43 | -17.02 | 160.71 | 2.15 | 186.45 | 0.3205 | -672.0 | -627.4 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -12.67 | 160.68 | 2.11 | 188.37 | 0.2480 | -780.0 | -586.2 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -17.49 | 160.69 | 2.12 | 186.21 | 0.3282 | -965.0 | -809.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -15.71 | 160.58 | 2.01 | 186.53 | 0.2987 | -792.0 | -574.1 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -13.99 | 160.50 | 1.94 | 187.02 | 0.2697 | -706.0 | -771.6 | |
| 0.00 | 2.82 | 0.00 | 1.44 | -12.25 | 160.43 | 1.87 | 187.65 | 0.2403 | -867.0 | -735.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.99 | 160.47 | 1.90 | 185.72 | 0.3196 | -834.0 | -640.4 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -13.07 | 160.37 | 1.81 | 186.99 | 0.2540 | -1025.0 | -737.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -12.03 | 160.25 | 1.68 | 187.02 | 0.2363 | -1070.0 | -937.8 | |
| 0.00 | 2.14 | 0.00 | 1.10 | -14.91 | 160.14 | 1.58 | 185.39 | 0.2845 | -974.0 | -767.2 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -19.03 | 160.14 | 1.58 | 184.25 | 0.3527 | -834.0 | -640.4 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -17.30 | 160.10 | 1.53 | 184.54 | 0.3242 | -462.0 | -495.0 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -10.30 | 160.00 | 1.43 | 186.89 | 0.2064 | -872.0 | -793.4 | |
| 0.00 | 3.00 | 0.00 | 1.54 | -13.96 | 159.98 | 1.42 | 185.17 | 0.2683 | -1081.0 | -895.6 | |
| 0.00 | 4.19 | 0.00 | 2.19 | -16.92 | 159.78 | 1.22 | 183.69 | 0.3176 | -877.0 | -821.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -14.02 | 159.74 | 1.18 | 184.27 | 0.2689 | -976.0 | -740.3 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.86 | 158.92 | 0.35 | 181.08 | 0.3159 | -919.0 | -774.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -20.81 | 158.73 | 0.17 | 180.41 | 0.3807 | -916.0 | -799.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -18.30 | 158.27 | -0.30 | 179.16 | 0.3398 | -536.0 | -466.4 | |
| 0.00 | 2.14 | 0.00 | 1.10 | -13.43 | 157.49 | -1.08 | 175.94 | 0.2589 | -1091.0 | -883.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -13.74 | 157.33 | -1.23 | 175.45 | 0.2643 | -1021.0 | -794.9 | |
| 0.00 | 0.68 | 0.00 | 0.35 | -11.03 | 157.26 | -1.30 | 174.10 | 0.2185 | -895.0 | -723.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.80 | 157.15 | -1.41 | 174.80 | 0.2656 | -943.0 | -793.9 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -13.22 | 156.76 | -1.80 | 173.11 | 0.2565 | -1069.0 | -862.0 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -11.12 | 156.69 | -1.88 | 171.60 | 0.2212 | -846.0 | -651.1 | |
| 0.00 | 3.17 | 0.00 | 1.62 | -13.34 | 156.45 | -2.11 | 172.02 | 0.2592 | -854.0 | -770.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -18.93 | 155.95 | -2.62 | 172.94 | 0.3527 | -625.0 | -506.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
