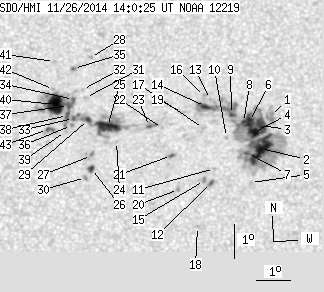

SDO HMI 2014-11-26 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.62 | 432.35 | 63.35 | 214.68 | 4.23 | 160.05 | 1.49 | 331.41 | 0.0704 | -31.3 | -140.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.87 | 0.00 | 5.40 | 4.59 | 162.61 | 4.05 | 307.77 | 0.0894 | -728.0 | -550.4 | |
| 29.01 | 230.73 | 14.41 | 114.61 | 3.61 | 162.31 | 3.74 | 299.91 | 0.0756 | -1360.8 | -572.8 | |
| 11.21 | -2.00 | 5.57 | -2.00 | 4.29 | 162.31 | 3.75 | 307.13 | 0.0822 | -1138.5 | 999999 | |
| 10.53 | -2.00 | 5.23 | -2.00 | 4.09 | 162.10 | 3.54 | 306.61 | 0.0771 | -1430.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 2.61 | 162.01 | 3.44 | 288.40 | 0.0635 | -781.0 | -670.7 | |
| 9.16 | -2.00 | 4.55 | -2.00 | 4.41 | 161.99 | 3.42 | 310.83 | 0.0790 | -1279.5 | 999999 | |
| 1.54 | -2.00 | 0.76 | -2.00 | 3.47 | 161.92 | 3.36 | 300.85 | 0.0684 | -1038.2 | 999999 | |
| 2.40 | -2.00 | 1.19 | -2.00 | 4.38 | 161.81 | 3.24 | 312.06 | 0.0764 | -1217.2 | 999999 | |
| 1.88 | -2.00 | 0.94 | -2.00 | 4.62 | 161.45 | 2.89 | 317.62 | 0.0749 | -1253.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 3.94 | 161.30 | 2.74 | 312.19 | 0.0646 | -66.0 | -117.8 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 3.03 | 160.94 | 2.38 | 303.29 | 0.0498 | 903.0 | 548.6 | |
| 1.03 | 2.48 | 0.51 | 1.23 | 2.61 | 160.85 | 2.29 | 296.61 | 0.0448 | -1138.3 | -975.2 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 5.07 | 160.83 | 2.27 | 327.89 | 0.0745 | -1084.0 | -844.3 | |
| 3.77 | -2.00 | 1.87 | -2.00 | 4.86 | 160.68 | 2.12 | 328.12 | 0.0701 | -1167.4 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.27 | 2.67 | 160.64 | 2.08 | 300.09 | 0.0421 | -1230.0 | -986.3 | |
| 0.00 | 3.25 | 0.00 | 1.62 | 5.16 | 160.65 | 2.09 | 330.57 | 0.0743 | -623.0 | -657.1 | |
| 0.00 | 2.74 | 0.00 | 1.36 | 4.21 | 160.62 | 2.06 | 323.21 | 0.0600 | 835.0 | 633.7 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 1.31 | 160.43 | 1.87 | 265.23 | 0.0329 | -955.0 | -769.3 | |
| 0.00 | 3.08 | 0.00 | 1.53 | 4.68 | 160.00 | 1.43 | 336.03 | 0.0617 | 593.0 | 420.2 | |
| 0.00 | 1.54 | 0.00 | 0.76 | 2.41 | 159.87 | 1.31 | 305.66 | 0.0282 | -818.0 | -488.8 | |
| 0.86 | 2.40 | 0.42 | 1.19 | 3.41 | 159.67 | 1.10 | 330.44 | 0.0392 | 1044.2 | 794.1 | |
| 0.00 | 0.68 | 0.00 | 0.34 | 4.21 | 159.40 | 0.84 | 343.02 | 0.0503 | 788.0 | 543.0 | |
| 1.20 | 5.39 | 0.59 | 2.67 | 4.27 | 159.02 | 0.45 | 350.81 | 0.0498 | -525.6 | 332.3 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 3.83 | 158.04 | -0.52 | 12.49 | 0.0424 | 762.0 | 529.8 | |
| 18.23 | 132.22 | 9.04 | 65.62 | 4.27 | 157.77 | -0.79 | 15.70 | 0.0511 | 1208.9 | 521.8 | |
| 2.40 | 4.11 | 1.19 | 2.04 | 3.03 | 157.30 | -1.26 | 38.94 | 0.0352 | 1056.4 | 800.7 | |
| 0.00 | 2.82 | 0.00 | 1.40 | 3.42 | 157.30 | -1.26 | 32.96 | 0.0407 | 1166.0 | 944.5 | |
| 0.00 | 1.97 | 0.00 | 0.98 | 6.32 | 157.27 | -1.30 | 14.89 | 0.0879 | 821.0 | 673.3 | |
| 2.31 | -25.00 | 1.15 | -25.00 | 4.48 | 157.21 | -1.35 | 24.14 | 0.0579 | 1243.2 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.06 | 2.76 | 157.12 | -1.44 | 48.00 | 0.0340 | 1106.0 | 792.2 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 5.13 | 157.12 | -1.44 | 21.43 | 0.0690 | -677.0 | -434.6 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 5.37 | 157.03 | -1.53 | 21.38 | 0.0734 | 771.0 | 622.8 | |
| 1.11 | -25.00 | 0.55 | -25.00 | 4.51 | 156.76 | -1.80 | 30.52 | 0.0619 | 1185.7 | 999999 | |
| 0.94 | -25.00 | 0.47 | -25.00 | 5.07 | 156.76 | -1.80 | 26.45 | 0.0706 | 1000.9 | 999999 | |
| 0.51 | 2.40 | 0.26 | 1.19 | 5.99 | 156.76 | -1.80 | 21.62 | 0.0853 | 1132.3 | 880.7 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 4.30 | 156.71 | -1.86 | 33.17 | 0.0594 | 996.0 | 755.9 | |
| 2.74 | -25.00 | 1.36 | -25.00 | 4.90 | 156.62 | -1.95 | 29.53 | 0.0691 | 1100.1 | 999999 | |
| 2.57 | -25.00 | 1.27 | -25.00 | 4.60 | 156.59 | -1.98 | 32.19 | 0.0649 | 1246.3 | 999999 | |
| 0.00 | 1.88 | 0.00 | 0.93 | 4.13 | 156.53 | -2.04 | 37.38 | 0.0587 | 806.0 | 515.9 | |
| 23.36 | -25.00 | 11.60 | -25.00 | 4.93 | 156.23 | -2.33 | 33.93 | 0.0731 | 1368.3 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 6.20 | 156.20 | -2.37 | 26.46 | 0.0926 | 722.0 | 538.7 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 5.37 | 156.17 | -2.40 | 31.43 | 0.0802 | 715.0 | 567.6 | |
| 0.86 | 4.88 | 0.42 | 2.42 | 4.19 | 155.99 | -2.57 | 43.32 | 0.0655 | 934.9 | 957.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
