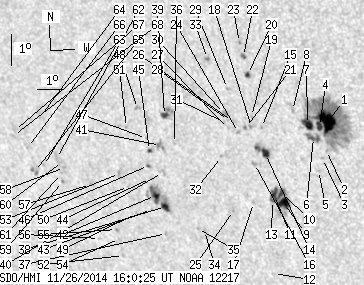

SDO HMI 2014-11-26 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.26 | 330.67 | 45.24 | 211.78 | -18.67 | 123.13 | -34.34 | 122.60 | 0.6348 | 298.3 | 165.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.59 | 152.48 | 13.89 | 93.71 | -17.80 | 126.20 | -31.27 | 123.45 | 0.5945 | 1210.8 | 500.7 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -18.72 | 125.97 | -31.49 | 124.61 | 0.6034 | 567.0 | 477.2 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -18.97 | 125.77 | -31.69 | 124.82 | 0.6074 | 609.0 | 492.5 | |
| 3.68 | -1.00 | 2.27 | -1.00 | -17.96 | 125.87 | -31.59 | 123.44 | 0.5994 | 735.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.12 | -19.35 | 125.54 | -31.92 | 125.19 | 0.6127 | 501.0 | 408.9 | |
| 0.00 | 9.50 | 0.00 | 5.90 | -18.31 | 125.58 | -31.88 | 123.72 | 0.6052 | 670.0 | 560.5 | |
| 7.36 | -1.00 | 4.56 | -1.00 | -17.91 | 125.44 | -32.02 | 123.03 | 0.6040 | 815.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -17.48 | 124.98 | -32.48 | 122.05 | 0.6067 | 717.0 | 605.6 | |
| 8.47 | 34.23 | 5.43 | 21.96 | -20.42 | 124.02 | -33.45 | 125.53 | 0.6370 | 807.9 | 291.3 | |
| 3.85 | -9.00 | 2.46 | -9.00 | -20.11 | 123.98 | -33.48 | 125.07 | 0.6353 | 947.7 | 999999 | |
| 5.65 | -9.00 | 3.63 | -9.00 | -20.17 | 123.70 | -33.76 | 124.96 | 0.6388 | 723.7 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -22.69 | 122.98 | -34.48 | 127.79 | 0.6633 | 458.0 | 479.0 | |
| 0.68 | -9.00 | 0.44 | -9.00 | -20.33 | 123.58 | -33.88 | 125.09 | 0.6412 | 374.9 | 999999 | |
| 4.36 | 10.87 | 2.78 | 6.92 | -18.84 | 123.68 | -33.79 | 123.09 | 0.6305 | 850.1 | 211.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -18.03 | 123.71 | -33.75 | 121.95 | 0.6250 | 659.0 | 561.6 | |
| 0.00 | 1.97 | 0.00 | 1.26 | -19.17 | 123.19 | -34.28 | 123.20 | 0.6381 | 688.0 | 580.3 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -20.41 | 122.84 | -34.63 | 124.67 | 0.6498 | 431.0 | 325.9 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -18.00 | 123.34 | -34.12 | 121.66 | 0.6291 | 680.0 | 645.3 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -17.68 | 123.41 | -34.05 | 121.26 | 0.6264 | 653.0 | 608.2 | |
| 1.45 | 2.91 | 0.91 | 1.83 | -16.37 | 123.54 | -33.93 | 119.43 | 0.6172 | 779.2 | 616.4 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -18.03 | 123.11 | -34.36 | 121.55 | 0.6320 | 592.0 | 528.2 | |
| 0.77 | 2.57 | 0.48 | 1.61 | -15.82 | 123.50 | -33.97 | 118.58 | 0.6144 | 903.4 | 688.0 | |
| 0.00 | 1.28 | 0.00 | 0.80 | -15.38 | 123.43 | -34.03 | 117.89 | 0.6128 | 734.0 | 615.0 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -18.20 | 122.81 | -34.66 | 121.58 | 0.6365 | 509.0 | 405.9 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -20.68 | 121.99 | -35.47 | 124.45 | 0.6607 | 527.0 | 523.7 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -17.85 | 122.66 | -34.81 | 121.00 | 0.6362 | 715.0 | 573.5 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -18.07 | 122.45 | -35.01 | 121.18 | 0.6398 | 485.0 | 414.4 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -17.82 | 122.51 | -34.95 | 120.86 | 0.6377 | 597.0 | 521.9 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -16.82 | 122.69 | -34.77 | 119.54 | 0.6298 | 427.0 | 388.8 | |
| 0.00 | 3.51 | 0.00 | 2.25 | -17.61 | 122.41 | -35.05 | 120.49 | 0.6376 | 734.0 | 605.8 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -17.89 | 122.34 | -35.12 | 120.85 | 0.6400 | 480.0 | 414.4 | |
| 0.00 | 1.20 | 0.00 | 0.78 | -18.96 | 121.97 | -35.49 | 122.11 | 0.6505 | 611.0 | 409.9 | |
| 0.00 | 1.80 | 0.00 | 1.15 | -15.90 | 122.13 | -35.33 | 117.85 | 0.6314 | 677.0 | 497.0 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -21.34 | 120.66 | -36.80 | 124.45 | 0.6790 | 707.0 | 559.2 | |
| 0.00 | 1.11 | 0.00 | 0.75 | -21.28 | 120.40 | -37.06 | 124.21 | 0.6814 | 418.0 | 333.7 | |
| 0.00 | 1.37 | 0.00 | 0.91 | -18.58 | 120.24 | -37.22 | 120.50 | 0.6678 | -523.0 | -423.9 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -21.46 | 119.10 | -38.36 | 123.64 | 0.6962 | -768.0 | -620.1 | |
| 4.79 | 29.61 | 3.26 | 20.19 | -20.59 | 119.32 | -38.14 | 122.65 | 0.6889 | -950.1 | -661.5 | |
| 2.40 | 8.30 | 1.58 | 5.48 | -17.70 | 120.07 | -37.39 | 119.20 | 0.6651 | -791.3 | -775.0 | |
| 0.00 | 2.99 | 0.00 | 2.02 | -19.51 | 119.52 | -37.95 | 121.33 | 0.6809 | -691.0 | -635.3 | |
| 0.00 | 5.48 | 0.00 | 3.66 | -18.65 | 119.67 | -37.79 | 120.27 | 0.6746 | -682.0 | -608.3 | |
| 3.76 | -38.00 | 2.57 | -38.00 | -20.24 | 119.02 | -38.44 | 122.02 | 0.6903 | -998.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -20.70 | 118.73 | -38.74 | 122.43 | 0.6959 | -478.0 | -373.0 | |
| 0.00 | 1.28 | 0.00 | 0.87 | -19.71 | 118.98 | -38.48 | 121.28 | 0.6878 | -780.0 | -649.6 | |
| 0.94 | 2.14 | 0.63 | 1.44 | -18.82 | 119.19 | -38.27 | 120.21 | 0.6808 | 607.5 | 511.6 | |
| 0.51 | 1.37 | 0.35 | 0.93 | -19.29 | 119.02 | -38.45 | 120.75 | 0.6852 | -619.3 | -635.4 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -18.44 | 119.17 | -38.29 | 119.69 | 0.6791 | 633.0 | 592.9 | |
| 0.00 | 2.57 | 0.00 | 1.72 | -17.50 | 119.06 | -38.41 | 118.35 | 0.6756 | 712.0 | 608.7 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -20.83 | 118.07 | -39.39 | 122.23 | 0.7036 | -637.0 | -538.1 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -19.98 | 118.01 | -39.46 | 121.08 | 0.6997 | -429.0 | -413.4 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -18.11 | 118.46 | -39.00 | 118.85 | 0.6853 | 551.0 | 433.9 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -22.20 | 117.07 | -40.39 | 123.41 | 0.7211 | -547.0 | -413.8 | |
| 0.00 | 3.76 | 0.00 | 2.60 | -19.57 | 117.76 | -39.70 | 120.41 | 0.7003 | -526.0 | -526.5 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -21.65 | 117.10 | -40.37 | 122.73 | 0.7180 | -628.0 | -555.3 | |
| 0.00 | 1.20 | 0.00 | 0.85 | -21.36 | 117.07 | -40.39 | 122.35 | 0.7168 | -770.0 | -690.0 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -21.67 | 116.25 | -41.22 | 122.29 | 0.7267 | -524.0 | -385.9 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -19.94 | 116.45 | -41.02 | 120.20 | 0.7161 | -684.0 | -557.0 | |
| 0.00 | 1.37 | 0.00 | 0.98 | -19.42 | 115.52 | -41.94 | 119.06 | 0.7235 | -754.0 | -655.6 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -19.86 | 115.29 | -42.17 | 119.52 | 0.7279 | -715.0 | -627.4 | |
| 0.00 | 1.45 | 0.00 | 1.04 | -19.23 | 115.50 | -41.97 | 118.80 | 0.7229 | -374.0 | -364.2 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -19.61 | 115.33 | -42.13 | 119.21 | 0.7264 | -642.0 | -551.1 | |
| 0.00 | 3.94 | 0.00 | 2.82 | -19.13 | 115.27 | -42.19 | 118.57 | 0.7249 | -671.0 | -529.8 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -19.37 | 114.64 | -42.82 | 118.57 | 0.7325 | -801.0 | -674.3 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -17.85 | 114.95 | -42.52 | 116.76 | 0.7228 | -553.0 | -432.6 | |
| 0.00 | 3.85 | 0.00 | 2.82 | -19.57 | 114.19 | -43.28 | 118.61 | 0.7381 | -621.0 | -556.0 | |
| 0.00 | 0.51 | 0.00 | 0.37 | -18.81 | 114.14 | -43.33 | 117.62 | 0.7354 | -595.0 | -554.8 | |
| 0.00 | 1.20 | 0.00 | 0.88 | -18.28 | 113.74 | -43.72 | 116.77 | 0.7374 | -617.0 | -467.5 | |
| 0.00 | 1.71 | 0.00 | 1.25 | -18.44 | 113.65 | -43.81 | 116.93 | 0.7390 | -659.0 | -514.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
