SDO HMI 2014-11-26 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.70 | 480.66 | 56.52 | 238.99 | 4.26 | 160.01 | 3.10 | 321.75 | 0.0841 | 86.0 | -163.0 | |
|
previous
or next observation for the same group /

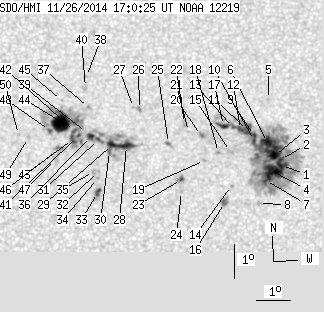

back to the solar disc SDO HMI 2014-11-26 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.82 | 269.68 | 2.90 | 134.30 | 3.72 | 162.64 | 5.73 | 291.63 | 0.1077 | -1289.0 | -609.1 | |
| 3.59 | -1.00 | 1.79 | -1.00 | 3.90 | 162.62 | 5.70 | 293.26 | 0.1085 | -1190.1 | 999999 | |
| 6.59 | -1.00 | 3.28 | -1.00 | 4.02 | 162.44 | 5.53 | 294.95 | 0.1065 | -1546.2 | 999999 | |
| 18.40 | -1.00 | 9.16 | -1.00 | 3.54 | 162.37 | 5.46 | 290.98 | 0.1023 | -1420.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 5.68 | 162.27 | 5.36 | 308.35 | 0.1192 | -819.0 | -629.9 | |
| 7.44 | -1.00 | 3.71 | -1.00 | 4.40 | 162.23 | 5.32 | 299.07 | 0.1063 | -1343.1 | 999999 | |
| 1.71 | -1.00 | 0.85 | -1.00 | 3.28 | 162.16 | 5.25 | 289.18 | 0.0972 | -1186.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 2.60 | 161.95 | 5.04 | 282.80 | 0.0905 | -931.0 | -758.5 | |
| 1.45 | -1.00 | 0.72 | -1.00 | 4.61 | 161.85 | 4.94 | 302.69 | 0.1024 | -1316.0 | 999999 | |
| 1.37 | -1.00 | 0.68 | -1.00 | 4.46 | 161.85 | 4.94 | 301.45 | 0.1010 | -1301.3 | 999999 | |
| 4.36 | -1.00 | 2.17 | -1.00 | 4.76 | 161.64 | 4.73 | 305.04 | 0.1008 | -1172.1 | 999999 | |
| 2.74 | -1.00 | 1.36 | -1.00 | 4.79 | 161.43 | 4.52 | 306.51 | 0.0982 | -1233.5 | 999999 | |
| 1.03 | -1.00 | 0.51 | -1.00 | 4.85 | 161.22 | 4.31 | 308.30 | 0.0959 | -1180.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 3.13 | 161.15 | 4.24 | 291.60 | 0.0798 | 720.0 | 545.0 | |
| 0.00 | 2.99 | 0.00 | 1.49 | 4.14 | 161.13 | 4.22 | 302.53 | 0.0874 | 638.0 | 187.4 | |
| 1.71 | 4.96 | 0.85 | 2.46 | 2.63 | 160.94 | 4.03 | 286.25 | 0.0735 | -1261.3 | -1008.2 | |
| 3.94 | -1.00 | 1.96 | -1.00 | 4.91 | 160.93 | 4.02 | 310.79 | 0.0926 | -1134.7 | 999999 | |
| 0.00 | 1.88 | 0.00 | 0.94 | 4.11 | 160.77 | 3.86 | 304.56 | 0.0820 | 942.0 | 636.2 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 3.88 | 160.36 | 3.44 | 305.12 | 0.0736 | 1002.0 | 844.5 | |
| 0.34 | 3.94 | 0.17 | 1.96 | 4.62 | 160.27 | 3.36 | 313.31 | 0.0807 | 1124.8 | 669.3 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 4.74 | 159.89 | 2.97 | 317.85 | 0.0774 | -692.0 | -469.5 | |
| 0.00 | 2.14 | 0.00 | 1.06 | 4.97 | 159.77 | 2.86 | 320.98 | 0.0792 | -669.0 | -553.4 | |
| 1.28 | 3.59 | 0.64 | 1.78 | 3.32 | 159.67 | 2.76 | 303.96 | 0.0582 | 1169.3 | 894.0 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 2.96 | 159.67 | 2.76 | 298.58 | 0.0550 | 960.0 | 689.5 | |
| 0.60 | 3.08 | 0.30 | 1.53 | 4.38 | 159.29 | 2.38 | 320.92 | 0.0660 | 1039.9 | 752.3 | |
| 0.00 | 2.22 | 0.00 | 1.10 | 5.39 | 158.43 | 1.52 | 338.90 | 0.0738 | -1099.0 | -791.0 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 5.45 | 158.25 | 1.34 | 341.44 | 0.0737 | -948.0 | -723.4 | |
| 7.36 | 59.72 | 3.65 | 29.62 | 4.32 | 158.04 | 1.13 | 338.46 | 0.0540 | 1090.9 | 371.4 | |
| 5.05 | -28.00 | 2.50 | -28.00 | 4.35 | 157.63 | 0.72 | 346.10 | 0.0522 | 1280.2 | 999999 | |
| 0.94 | -28.00 | 0.47 | -28.00 | 4.15 | 157.54 | 0.63 | 346.87 | 0.0484 | 1114.4 | 999999 | |
| 0.94 | -28.00 | 0.47 | -28.00 | 4.50 | 157.21 | 0.30 | 354.33 | 0.0536 | 1188.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.55 | 3.56 | 157.21 | 0.30 | 351.83 | 0.0371 | 968.0 | 711.8 | |
| 2.48 | 5.48 | 1.23 | 2.71 | 2.94 | 157.18 | 0.27 | 349.60 | 0.0263 | 1257.0 | 782.7 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 3.35 | 157.18 | 0.27 | 351.83 | 0.0334 | 1128.0 | 850.7 | |
| 0.00 | 2.48 | 0.00 | 1.23 | 3.56 | 157.06 | 0.15 | 355.83 | 0.0368 | 953.0 | 808.7 | |
| 3.42 | -28.00 | 1.70 | -28.00 | 4.59 | 156.98 | 0.07 | 358.80 | 0.0549 | 1180.8 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.89 | 5.45 | 156.92 | 0.01 | 359.89 | 0.0699 | 868.0 | 719.6 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 6.37 | 156.86 | -0.05 | 0.59 | 0.0860 | 887.0 | 657.6 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 4.71 | 156.86 | -0.05 | 0.93 | 0.0570 | 116.0 | 180.8 | |
| 0.00 | 1.71 | 0.00 | 0.85 | 6.04 | 156.83 | -0.08 | 1.01 | 0.0803 | 737.0 | 685.7 | |
| 1.11 | 91.72 | 0.55 | 45.52 | 4.62 | 156.62 | -0.29 | 5.23 | 0.0556 | 936.7 | 565.4 | |
| 1.45 | -41.00 | 0.72 | -41.00 | 4.74 | 156.50 | -0.41 | 7.08 | 0.0579 | 1201.4 | 999999 | |
| 3.34 | -41.00 | 1.66 | -41.00 | 4.50 | 156.44 | -0.47 | 8.73 | 0.0540 | 1230.9 | 999999 | |
| 24.13 | -41.00 | 11.97 | -41.00 | 5.01 | 156.12 | -0.79 | 12.59 | 0.0637 | 1359.4 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 5.66 | 156.12 | -0.79 | 10.67 | 0.0749 | 715.0 | 550.2 | |
| 0.00 | 4.45 | 0.00 | 2.21 | 4.24 | 156.06 | -0.85 | 17.05 | 0.0509 | 1263.0 | 912.8 | |
| 0.00 | 3.68 | 0.00 | 1.82 | 3.91 | 155.94 | -0.97 | 21.60 | 0.0462 | 825.0 | 658.7 | |
| 1.11 | -41.00 | 0.55 | -41.00 | 4.77 | 155.76 | -1.15 | 19.11 | 0.0614 | 952.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 4.56 | 155.14 | -1.77 | 29.67 | 0.0626 | 925.0 | 773.9 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 4.65 | 154.84 | -2.07 | 32.88 | 0.0666 | 828.0 | 590.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
