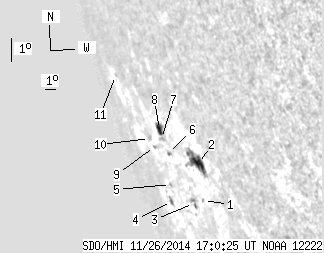

SDO HMI 2014-11-26 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.97 | 49.20 | 31.11 | 106.98 | -19.76 | 81.57 | -75.34 | 110.71 | 0.9737 | 70.9 | -57.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 17:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 2.57 | -21.02 | 82.91 | -74.00 | 112.14 | 0.9699 | 188.0 | 145.5 | |
| 9.07 | 24.73 | 16.93 | 46.78 | -19.82 | 83.88 | -73.03 | 111.03 | 0.9652 | 418.3 | 66.9 | |
| 0.00 | 3.42 | 0.00 | 7.49 | -21.15 | 81.49 | -75.42 | 112.11 | 0.9753 | -127.0 | -100.1 | |
| 0.94 | 3.08 | 2.67 | 8.72 | -21.17 | 78.28 | -78.63 | 111.80 | 0.9854 | 2.6 | -69.4 | |
| 0.00 | 1.03 | 0.00 | 2.69 | -20.61 | 79.18 | -77.73 | 111.32 | 0.9827 | -55.0 | -125.8 | |
| 0.34 | 1.37 | 0.79 | 3.16 | -19.59 | 80.55 | -76.36 | 110.42 | 0.9779 | -124.2 | -153.8 | |
| 0.00 | 2.99 | 0.00 | 7.03 | -19.12 | 80.29 | -76.62 | 109.92 | 0.9786 | -456.0 | -363.0 | |
| 4.62 | 6.76 | 10.72 | 15.64 | -18.83 | 80.44 | -76.47 | 109.64 | 0.9780 | -333.2 | -295.7 | |
| 0.00 | 1.20 | 0.00 | 3.19 | -19.41 | 78.80 | -78.11 | 110.07 | 0.9835 | -244.0 | -190.4 | |
| 0.00 | 2.57 | 0.00 | 7.02 | -19.17 | 78.43 | -78.48 | 109.79 | 0.9845 | 97.0 | 22.0 | |
| 0.00 | 0.77 | 0.00 | 2.69 | -17.26 | 75.88 | -81.03 | 107.67 | 0.9906 | -121.0 | -160.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
