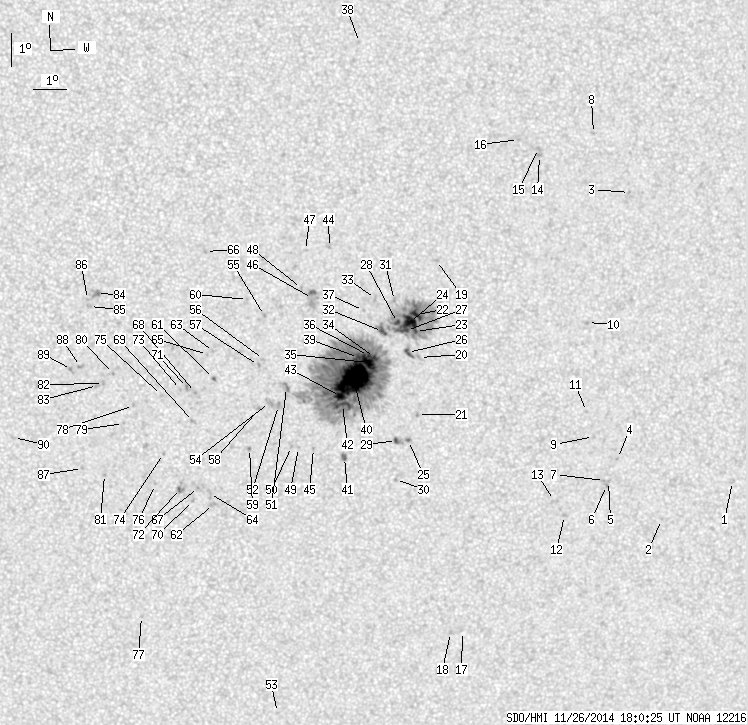

SDO HMI 2014-11-26 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.73 | 782.24 | 61.08 | 405.94 | -13.41 | 165.08 | 8.72 | 209.76 | 0.2997 | 484.8 | 350.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.14 | 0.00 | 1.20 | -16.93 | 177.33 | 20.97 | 227.49 | 0.4665 | 541.0 | 530.8 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -18.10 | 175.12 | 18.76 | 222.52 | 0.4543 | 686.0 | 589.9 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -8.08 | 173.35 | 16.99 | 240.37 | 0.3344 | 816.0 | 603.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -16.18 | 173.50 | 17.14 | 223.15 | 0.4156 | 577.0 | 446.8 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -16.89 | 173.27 | 16.91 | 221.58 | 0.4213 | 808.0 | 531.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -17.02 | 173.22 | 16.86 | 221.29 | 0.4221 | 852.0 | 744.1 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -16.86 | 173.14 | 16.78 | 221.41 | 0.4195 | 795.0 | 576.7 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -6.30 | 172.17 | 15.81 | 243.65 | 0.3035 | 810.0 | 630.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -15.49 | 172.67 | 16.31 | 222.97 | 0.3988 | 687.0 | 599.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -11.99 | 172.23 | 15.88 | 229.12 | 0.3555 | 843.0 | 643.7 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -14.72 | 172.39 | 16.03 | 223.89 | 0.3869 | 779.0 | 625.2 | |
| 0.00 | 2.14 | 0.00 | 1.17 | -17.94 | 171.94 | 15.59 | 217.65 | 0.4203 | 821.0 | 573.3 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -17.47 | 171.58 | 15.22 | 217.75 | 0.4109 | 580.0 | 593.2 | |
| 0.00 | 2.31 | 0.00 | 1.19 | -6.95 | 170.52 | 14.16 | 239.09 | 0.2844 | 845.0 | 686.9 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -6.74 | 170.48 | 14.13 | 239.67 | 0.2821 | 898.0 | 708.7 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -6.46 | 169.86 | 13.51 | 239.42 | 0.2708 | 745.0 | 567.1 | |
| 0.00 | 0.51 | 0.00 | 0.28 | -21.60 | 168.96 | 12.61 | 207.42 | 0.4425 | 520.0 | 524.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -21.63 | 168.58 | 12.22 | 206.67 | 0.4401 | 920.0 | 665.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -10.08 | 167.46 | 11.11 | 223.55 | 0.2766 | 943.0 | 732.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -13.02 | 167.05 | 10.70 | 215.92 | 0.3096 | 533.0 | 298.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -14.77 | 167.07 | 10.72 | 212.79 | 0.3334 | 788.0 | 683.1 | |
| 5.30 | 136.72 | 2.74 | 70.77 | -11.71 | 166.91 | 10.55 | 218.26 | 0.2909 | 1183.8 | 536.3 | |
| 0.26 | -22.00 | 0.13 | -22.00 | -12.23 | 166.90 | 10.54 | 217.13 | 0.2976 | 710.3 | 999999 | |
| 12.15 | -22.00 | 6.29 | -22.00 | -11.95 | 166.70 | 10.35 | 217.19 | 0.2920 | 1282.4 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -15.57 | 166.83 | 10.47 | 210.91 | 0.3424 | -960.0 | -664.2 | |
| 1.88 | 6.67 | 0.98 | 3.47 | -12.87 | 166.68 | 10.32 | 215.26 | 0.3039 | 940.1 | 596.4 | |
| 1.28 | -22.00 | 0.66 | -22.00 | -12.19 | 166.62 | 10.26 | 216.46 | 0.2943 | 936.5 | 999999 | |
| 2.05 | -22.00 | 1.06 | -22.00 | -11.95 | 166.34 | 9.98 | 216.21 | 0.2882 | 1281.7 | 999999 | |
| 1.28 | 5.13 | 0.68 | 2.70 | -15.57 | 166.46 | 10.10 | 210.01 | 0.3392 | -1058.8 | -570.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -16.78 | 166.49 | 10.13 | 208.31 | 0.3566 | -820.0 | -671.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -11.28 | 166.22 | 9.86 | 217.34 | 0.2782 | 845.0 | 739.1 | |
| 2.74 | -22.00 | 1.42 | -22.00 | -12.22 | 165.88 | 9.53 | 214.41 | 0.2875 | 1184.7 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.19 | -11.22 | 165.64 | 9.28 | 215.82 | 0.2715 | 955.0 | 735.2 | |
| 0.26 | 496.90 | 0.13 | 257.83 | -13.01 | 165.67 | 9.31 | 212.28 | 0.2965 | 1131.0 | 509.5 | |
| 10.87 | -34.00 | 5.63 | -34.00 | -13.16 | 165.49 | 9.13 | 211.50 | 0.2971 | 1341.8 | 999999 | |
| 0.86 | -34.00 | 0.44 | -34.00 | -12.95 | 165.48 | 9.12 | 211.87 | 0.2940 | 1184.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -11.58 | 165.28 | 8.92 | 214.00 | 0.2730 | 730.0 | 541.1 | |
| 0.00 | 1.37 | 0.00 | 0.69 | -3.55 | 165.00 | 8.65 | 239.90 | 0.1742 | 744.0 | 548.9 | |
| 2.57 | -34.00 | 1.33 | -34.00 | -13.01 | 165.18 | 8.82 | 210.90 | 0.2922 | 1357.0 | 999999 | |
| 62.03 | -34.00 | 32.20 | -34.00 | -13.68 | 165.05 | 8.69 | 209.36 | 0.3007 | 1578.7 | 999999 | |
| 1.28 | 3.76 | 0.67 | 1.98 | -16.09 | 164.86 | 8.50 | 205.26 | 0.3345 | -1046.9 | -842.7 | |
| 7.19 | -34.00 | 3.74 | -34.00 | -14.45 | 164.73 | 8.38 | 207.26 | 0.3094 | 876.5 | 999999 | |
| 5.39 | -34.00 | 2.80 | -34.00 | -14.20 | 164.66 | 8.31 | 207.44 | 0.3052 | 1261.6 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -9.67 | 164.20 | 7.84 | 214.90 | 0.2361 | -911.0 | -654.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -15.80 | 163.89 | 7.53 | 203.04 | 0.3236 | -831.0 | -670.4 | |
| 0.00 | 12.75 | 0.00 | 6.53 | -11.21 | 163.72 | 7.36 | 209.84 | 0.2537 | -375.0 | -377.0 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -9.76 | 163.47 | 7.11 | 212.14 | 0.2305 | -601.0 | -475.6 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -10.90 | 163.38 | 7.02 | 209.29 | 0.2464 | -832.0 | -678.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.77 | 163.42 | 7.06 | 201.79 | 0.3202 | -718.0 | -563.6 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -15.74 | 163.20 | 6.85 | 201.22 | 0.3184 | -853.0 | -609.5 | |
| 0.00 | 3.68 | 0.00 | 1.90 | -13.92 | 162.99 | 6.64 | 202.94 | 0.2891 | 27.0 | 23.6 | |
| 0.00 | 2.40 | 0.00 | 1.24 | -14.47 | 162.76 | 6.41 | 201.50 | 0.2961 | 869.0 | 647.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -24.20 | 163.12 | 6.76 | 193.93 | 0.4479 | 627.0 | 522.4 | |
| 0.00 | 4.53 | 0.00 | 2.35 | -14.38 | 162.49 | 6.13 | 200.76 | 0.2930 | -387.0 | -321.8 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -11.72 | 162.27 | 5.91 | 203.88 | 0.2503 | -977.0 | -778.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -13.06 | 162.27 | 5.91 | 201.82 | 0.2711 | -838.0 | -699.1 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -13.24 | 162.12 | 5.76 | 201.08 | 0.2730 | -739.0 | -623.4 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -14.59 | 162.15 | 5.80 | 199.47 | 0.2944 | -684.0 | -595.9 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -15.79 | 161.91 | 5.55 | 197.43 | 0.3121 | -895.0 | -690.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.23 | 161.75 | 5.39 | 202.76 | 0.2392 | -863.0 | -682.5 | |
| 0.34 | 1.71 | 0.18 | 0.88 | -13.63 | 160.75 | 4.40 | 195.97 | 0.2720 | -1139.2 | -960.3 | |
| 0.00 | 2.91 | 0.00 | 1.53 | -17.53 | 160.83 | 4.48 | 192.89 | 0.3352 | -776.0 | -598.5 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -12.81 | 160.74 | 4.38 | 196.83 | 0.2586 | -762.0 | -641.6 | |
| 0.00 | 3.76 | 0.00 | 1.97 | -17.19 | 160.70 | 4.35 | 192.76 | 0.3292 | -827.0 | -671.8 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -12.90 | 160.56 | 4.20 | 196.07 | 0.2592 | -787.0 | -620.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.77 | 160.46 | 4.10 | 199.89 | 0.2080 | -840.0 | -660.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -17.00 | 160.36 | 4.00 | 191.90 | 0.3250 | -923.0 | -785.2 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -14.06 | 160.21 | 3.85 | 193.70 | 0.2766 | -1044.0 | -852.1 | |
| 0.00 | 2.48 | 0.00 | 1.28 | -14.95 | 160.17 | 3.81 | 192.80 | 0.2910 | -941.0 | -756.0 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -17.41 | 160.21 | 3.85 | 191.22 | 0.3310 | -749.0 | -652.8 | |
| 0.00 | 2.48 | 0.00 | 1.28 | -13.91 | 159.97 | 3.61 | 192.98 | 0.2731 | -1042.0 | -883.0 | |
| 0.00 | 4.62 | 0.00 | 2.42 | -17.03 | 159.80 | 3.44 | 190.26 | 0.3237 | -975.0 | -846.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.97 | 159.75 | 3.40 | 192.19 | 0.2733 | -988.0 | -751.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -15.94 | 159.26 | 2.90 | 189.24 | 0.3043 | -789.0 | -638.1 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -14.15 | 159.18 | 2.82 | 190.05 | 0.2745 | -811.0 | -545.3 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -16.90 | 159.02 | 2.67 | 188.04 | 0.3195 | -792.0 | -648.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -21.07 | 158.64 | 2.29 | 185.55 | 0.3866 | -812.0 | -673.6 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -14.46 | 158.32 | 1.97 | 186.91 | 0.2774 | -964.0 | -792.7 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -15.01 | 158.02 | 1.66 | 185.65 | 0.2861 | -795.0 | -543.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -13.47 | 157.71 | 1.35 | 185.08 | 0.2598 | -953.0 | -816.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -16.59 | 157.45 | 1.09 | 183.36 | 0.3117 | -690.0 | -571.5 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -13.78 | 157.40 | 1.05 | 183.86 | 0.2646 | -992.0 | -742.2 | |
| 0.00 | 2.48 | 0.00 | 1.27 | -13.84 | 157.22 | 0.86 | 183.18 | 0.2654 | -814.0 | -743.0 | |
| 0.00 | 5.82 | 0.00 | 2.95 | -11.04 | 157.19 | 0.83 | 183.75 | 0.2178 | -1150.0 | -897.5 | |
| 0.00 | 2.31 | 0.00 | 1.17 | -11.43 | 156.98 | 0.62 | 182.71 | 0.2243 | -865.0 | -601.7 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -11.22 | 156.91 | 0.56 | 182.49 | 0.2207 | -917.0 | -716.4 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -16.40 | 156.77 | 0.41 | 181.28 | 0.3081 | -585.0 | -468.1 | |
| 0.00 | 2.40 | 0.00 | 1.23 | -13.26 | 156.70 | 0.35 | 181.33 | 0.2552 | -960.0 | -824.4 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -13.35 | 156.43 | 0.07 | 180.28 | 0.2567 | -1027.0 | -808.8 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -15.44 | 154.65 | -1.71 | 174.35 | 0.2934 | -708.0 | -529.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
