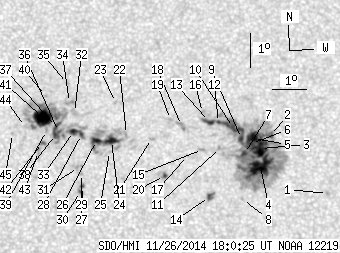

SDO HMI 2014-11-26 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.93 | 492.06 | 62.67 | 244.80 | 4.33 | 160.08 | 3.72 | 258.21 | 0.0914 | -81.2 | -91.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 0.94 | 2.76 | 164.50 | 8.14 | 279.22 | 0.1439 | 843.0 | 647.2 | |
| 1.71 | 277.28 | 0.85 | 138.23 | 4.48 | 162.81 | 6.45 | 295.28 | 0.1245 | -776.3 | -534.8 | |
| 16.94 | -2.00 | 8.45 | -2.00 | 4.10 | 162.51 | 6.15 | 293.39 | 0.1170 | -1380.2 | 999999 | |
| 22.50 | -2.00 | 11.22 | -2.00 | 3.57 | 162.50 | 6.15 | 289.06 | 0.1136 | -1417.0 | 999999 | |
| 10.27 | -2.00 | 5.12 | -2.00 | 4.40 | 162.30 | 5.94 | 296.45 | 0.1159 | -1300.6 | 999999 | |
| 3.76 | -2.00 | 1.88 | -2.00 | 4.25 | 162.24 | 5.88 | 295.52 | 0.1138 | -1351.4 | 999999 | |
| 2.82 | -2.00 | 1.41 | -2.00 | 3.95 | 162.03 | 5.67 | 293.87 | 0.1083 | -1019.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 2.59 | 161.96 | 5.60 | 281.53 | 0.1000 | -887.0 | -635.2 | |
| 2.82 | -2.00 | 1.41 | -2.00 | 4.40 | 161.94 | 5.59 | 297.89 | 0.1103 | -1271.6 | 999999 | |
| 9.84 | -2.00 | 4.90 | -2.00 | 4.72 | 161.71 | 5.35 | 301.55 | 0.1096 | -1229.3 | 999999 | |
| 0.00 | 2.40 | 0.00 | 1.19 | 4.13 | 161.32 | 4.96 | 298.47 | 0.0985 | 740.0 | 341.8 | |
| 0.94 | -2.00 | 0.47 | -2.00 | 4.87 | 161.26 | 4.91 | 305.00 | 0.1045 | -1168.5 | 999999 | |
| 3.68 | -2.00 | 1.83 | -2.00 | 4.90 | 161.00 | 4.64 | 306.76 | 0.1010 | -1193.3 | 999999 | |
| 1.80 | 4.88 | 0.89 | 2.42 | 2.68 | 160.98 | 4.62 | 284.93 | 0.0837 | -1211.7 | -954.7 | |
| 0.00 | 1.97 | 0.00 | 0.98 | 4.08 | 160.78 | 4.42 | 300.73 | 0.0899 | 648.0 | 480.2 | |
| 0.00 | 2.05 | 0.00 | 1.02 | 5.17 | 160.79 | 4.43 | 310.11 | 0.1011 | -801.0 | -682.7 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 3.90 | 160.33 | 3.98 | 301.65 | 0.0817 | 791.0 | 515.4 | |
| 0.00 | 5.65 | 0.00 | 2.81 | 4.79 | 160.16 | 3.80 | 311.32 | 0.0885 | 998.0 | 710.4 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 4.97 | 159.84 | 3.48 | 315.37 | 0.0864 | -1012.0 | -724.9 | |
| 1.20 | 5.48 | 0.59 | 2.72 | 3.31 | 159.65 | 3.29 | 299.44 | 0.0661 | 1141.8 | 836.3 | |
| 0.00 | 2.14 | 0.00 | 1.06 | 4.41 | 159.27 | 2.91 | 315.46 | 0.0725 | 1040.0 | 815.2 | |
| 0.00 | 0.86 | 0.00 | 0.42 | 4.53 | 158.53 | 2.17 | 324.82 | 0.0658 | -496.0 | -390.0 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 5.47 | 158.20 | 1.85 | 335.39 | 0.0774 | -847.0 | -658.6 | |
| 6.84 | 42.86 | 3.40 | 21.27 | 4.35 | 158.08 | 1.72 | 329.27 | 0.0590 | 1098.1 | 366.9 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 4.02 | 158.02 | 1.66 | 327.11 | 0.0536 | 394.0 | 400.2 | |
| 3.94 | -24.00 | 1.95 | -24.00 | 4.35 | 157.64 | 1.28 | 336.20 | 0.0554 | 1240.7 | 999999 | |
| 0.77 | 4.11 | 0.38 | 2.03 | 2.99 | 157.22 | 0.86 | 330.70 | 0.0308 | 1101.8 | 875.8 | |
| 1.20 | 109.85 | 0.59 | 54.51 | 4.53 | 157.19 | 0.83 | 344.84 | 0.0557 | 1231.1 | 543.2 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 3.37 | 157.19 | 0.83 | 336.57 | 0.0366 | 956.0 | 791.9 | |
| 0.68 | -27.00 | 0.34 | -27.00 | 2.84 | 157.16 | 0.80 | 329.96 | 0.0280 | 1046.8 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.48 | 3.55 | 157.10 | 0.74 | 340.49 | 0.0389 | 815.0 | 833.0 | |
| 0.00 | 5.22 | 0.00 | 2.59 | 5.18 | 156.99 | 0.63 | 350.46 | 0.0661 | 208.0 | 261.9 | |
| 3.51 | -28.00 | 1.74 | -28.00 | 4.62 | 156.95 | 0.60 | 349.33 | 0.0563 | 1255.7 | 999999 | |
| 0.00 | 3.42 | 0.00 | 1.70 | 5.48 | 156.84 | 0.48 | 353.21 | 0.0709 | 946.0 | 762.8 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 6.04 | 156.78 | 0.42 | 354.76 | 0.0806 | 997.0 | 719.4 | |
| 0.77 | -28.00 | 0.38 | -28.00 | 4.62 | 156.51 | 0.15 | 357.25 | 0.0554 | 1290.4 | 999999 | |
| 2.65 | -28.00 | 1.32 | -28.00 | 4.77 | 156.45 | 0.09 | 358.40 | 0.0580 | 1125.0 | 999999 | |
| 3.42 | -28.00 | 1.70 | -28.00 | 4.53 | 156.42 | 0.06 | 358.83 | 0.0538 | 1252.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 4.65 | 156.15 | -0.20 | 3.65 | 0.0560 | 266.0 | 213.4 | |
| 0.00 | 1.20 | 0.00 | 0.59 | 5.68 | 156.13 | -0.23 | 3.14 | 0.0742 | 786.0 | 544.8 | |
| 23.19 | -28.00 | 11.51 | -28.00 | 5.03 | 156.04 | -0.32 | 5.14 | 0.0629 | 1380.0 | 999999 | |
| 0.68 | 2.57 | 0.34 | 1.27 | 4.29 | 156.03 | -0.32 | 6.48 | 0.0500 | 1168.1 | 852.9 | |
| 0.00 | 2.40 | 0.00 | 1.19 | 4.03 | 155.92 | -0.44 | 9.74 | 0.0457 | 962.0 | 829.0 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 4.77 | 155.53 | -0.83 | 13.99 | 0.0598 | 623.0 | 571.4 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 4.56 | 155.15 | -1.21 | 21.30 | 0.0583 | 899.0 | 733.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
