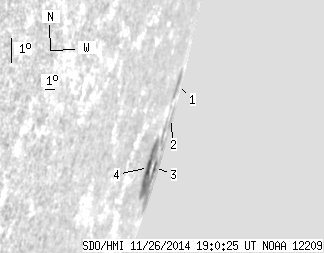

SDO HMI 2014-11-26 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.35 | 77.76 | 39.40 | 542.56 | -16.40 | 240.00 | 84.19 | 253.39 | 0.9962 | -157.4 | -96.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.81 | 0.00 | 60.14 | -14.27 | 240.95 | 85.15 | 255.57 | 0.9975 | -202.0 | -156.4 | |
| 0.00 | 4.53 | 0.00 | 42.88 | -15.34 | 241.86 | 86.06 | 254.54 | 0.9985 | -45.0 | 106.0 | |
| 2.22 | 64.42 | 15.59 | 439.54 | -16.83 | 240.93 | 85.12 | 253.01 | 0.9976 | 188.9 | -109.3 | |
| 5.13 | -3.00 | 23.81 | -3.00 | -16.77 | 238.87 | 83.06 | 252.95 | 0.9946 | -387.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
