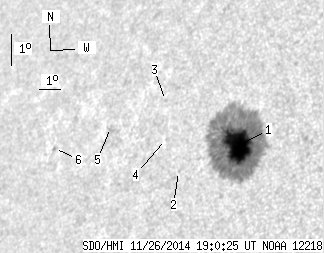

SDO HMI 2014-11-26 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.59 | 318.95 | 37.36 | 232.06 | 15.95 | 110.48 | -45.32 | 69.34 | 0.7329 | -992.1 | -261.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-26 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.59 | 313.47 | 37.36 | 227.61 | 15.95 | 110.59 | -45.21 | 69.32 | 0.7317 | -1186.7 | -277.7 | |
| 0.00 | 0.43 | 0.00 | 0.32 | 15.12 | 108.15 | -47.65 | 71.10 | 0.7565 | 555.0 | 473.4 | |
| 0.00 | 0.77 | 0.00 | 0.60 | 17.28 | 106.84 | -48.96 | 68.69 | 0.7754 | 129.0 | 148.0 | |
| 0.00 | 0.77 | 0.00 | 0.59 | 16.08 | 107.25 | -48.55 | 70.10 | 0.7683 | 459.0 | 401.2 | |
| 0.00 | 1.97 | 0.00 | 1.61 | 16.40 | 104.49 | -51.31 | 70.37 | 0.7973 | 584.0 | 508.4 | |
| 0.00 | 1.54 | 0.00 | 1.33 | 15.71 | 101.90 | -53.91 | 71.76 | 0.8212 | 580.0 | 458.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
